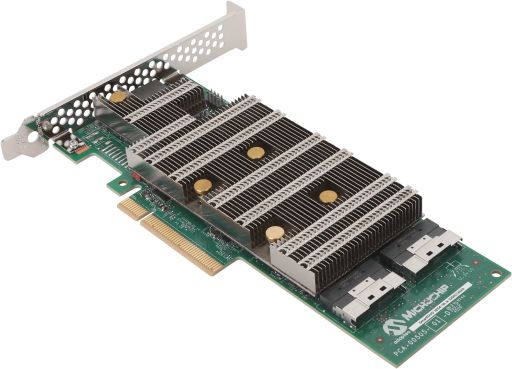

Microchip Technology SmartRAID Ultra 3254-16e /e, SAS-4, SATA, PCI Express x16, 0, 1, 5, 6, 10, 50, 60, 4096 MB, DDR4, 3200 MHz

Maximum Performance and Security With Tri-Mode Functionality
The Adaptec® SmartRAID 3200 family is the industry's most versatile, fully featured and secure full RAIDenabled Tri-Mode SAS/SATA/NVMe server storage performance solution for server OEM, storage systems,
data center and enterprise customers.

The SmartRAID 3200 series of PCIe® Gen 4 to Tri-mode RAID adapters come in a wide range of performance
optimized configurations optimized for the lowest possible cost.

Built on Microchip's proven 5th generation storage controller, the SmartROC 3200, the SmartRAID 3200 product supports both x8 and x16 PCIe Gen 4 host interface adapters with 32, 16, and 8 media facing port variants for both internal and external Tri-mode connectivity. The SmartRAID 3200 Ultra products are specifically designed for the most demanding NVMe and multi-port SAS SSD applications. The SmartROC 3200 integrated PCIe Switch enables DirectPath technology - the industry's lowest latency and high bandwidth NVMe solution and the flexibility to support x1, x2, x4, and x8 wide NVMe SSDs.

These industry first 24G SAS adapters support SAS-4 connectivity as well as Microchip's Dynamic Channel Multiplexing (DCM) technology that aggregates expander attached SAS or SATA hard drives onto 24G SAS infrastructure with near 100% link efficiency for unparalleled throughput. Native host adapter modes, RAID mode and mixed (RAID and HBA/raw devices) for all media types are also supported.

Microchip’s Trusted Platform support delivers a new level of compute and supply chain security based on a hardware root of trust that is aligned with the Open Compute Security Project. Microchip has expanded on its unique maxCrypto™ Controller-Based Encryption (CBE) solution to support SAS, SATA, and now NVMe media.
