Alcasa Good Connections ANTARES N20E, Schrank zur Verwaltung tragbarer Geräte, Schwarz, Flur, Boden, 4,6 cm, 40 cm, 29 cm

Good Connections® ANTARES N20E Notebook Charging Wagon up to 15.6", UV-C Disinfection, switch-on delay, black
- For projects in education, healthcare, industry, conference venues, museums, hotels and gastronomy
- Depending on the model for 10 to 40 devices- Environmentally friendly UV-C disinfection of notebooks without chemicals

With the innovative notebook charging trolley, Good Connections® accompanies you on the path to digitization and ensures that your devices
are always ready for use and charged when they are needed. Safe storage and energy-efficient and resource-saving charging technology – thanks to its flexibility and versatility, the Good Connections® notebook charging trolley is the ideal companion for your project in education, healthcare, industry, conference venues, museums, hotels and gastronomy. Stop worrying about whether you have enough free outlets in the room. With the Good Connections® notebook charging cart, you only need a single free standard socket for the power supplies of your up to 40 notebooks (total power max. 3680 W).

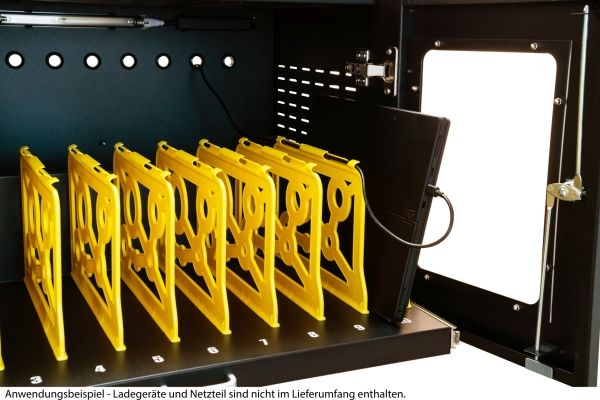

A UV-C lamp mounted in each loading level ensures more sterile conditions and improved hygiene in an environmentally friendly way and without chemicals. The extendable and numbered compartments are used for easy assignment of the devices to the individual users and each hold a device up to 15.6" in size (compartment dimensions WxDxH: 4.6 x 40 x 29 cm).

Intuitive control panel The charging time limitation and UV-C disinfection can be controlled via the control panel
. The charging time limit can be selected between one and 24 hours. After the set duration has elapsed, the charging process is stopped. The disinfection takes five minutes after activation and then switches off automatically.

Sequential charging control for inrush current limitation
When switching on electrical consumers, increased inrush currents can occur at short notice due to their design. These inrush currents can be a multiple of the rated current (normal operating current). If all power supplies are switched on at the same time, these inrush currents add up and can lead to a tripping of fuses in the fuse circuit.

To prevent this, Good Connections® ANTARES 15.6" loader wagons for 20 and more devices equip the individual charging levels with adjustable switch-on time delay modules that enable sequential switch-on. The charging levels are switched on one after the other with a delay of several seconds, so that the inrush current is reduced.
This sequential charge control thus acts as an inrush current limiter and prevents unintentional tripping of the fuse at start-up. In the model for ten devices, it is not necessary due to the design.

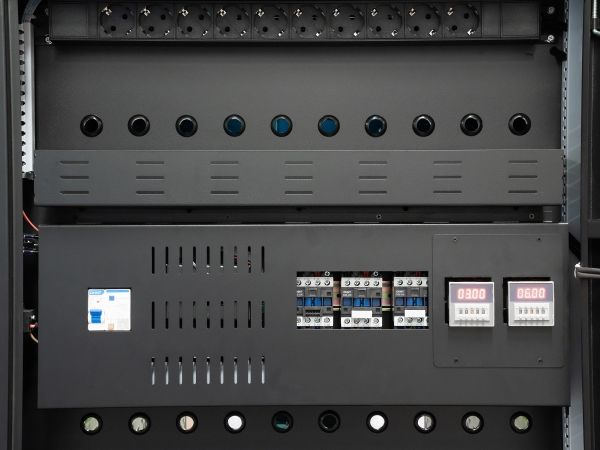

Safety PDU and easy cable management
A power strip (PDU) with ten safety sockets is mounted on the back of the notebook charging trolley per charging level. The power supplies can be accommodated in a shelf per charging level. The notebook connections of the power supplies are led through a small opening behind each device compartment into the equipment room and connected to the notebook.

Efficient cooling
Depending on the model, the loader wagon is equipped with up to two permanently running, powerful and low-noise fans.

Security down to the last detail
The lockable hinged doors with viewing window made of highly stable acrylic offer protection against unauthorized access. All edges of the loader wagon made of 1.2 mm sheet steel are equipped with rounded corners. Openings are placed in such a way that they are protected against water ingress. A low center of gravity provides additional stability.

High-quality heavy-duty castors and handle
The models for 20 and more devices are equipped with sturdy heavy-duty castors, each of which can be loaded up to 85 kg. The 360° rotation capability and integrated parking brake ensure optimum handling. With the help of the aluminum handle, the notebook charging trolley can be easily transported from room to room.

Technical data:- Loader wagon structure: equipment area (front), lockable technical area (rear)
- Housing material: 1.2 mm sheet steel- Number of loading levels: 2
- Loading levels extendable and each equipped
with a UV-C lamp- Device slots per loading level:

10
- Dimensions device slot (D x W x H): 400 x 46 x 290
mm
- Device slots numbered
for better assignment of devices- Ratio device slots / safety sockets: 1:1
- Number of safety sockets: 20- Lock Device area: Standard lock with two keys- Lock Technical area: Triangular lock with a triangular key
- Total power: 3680 watts

- Handgrip: Yes (for models for 20
and more devices)
- Four 360° rotatable heavy-duty castors, two of them with parking brake (for models for 20 and more devices)Colour: Black
Dimensions loading wagon (L x W x H): 670 x 600 x 825 mm
Net weight: 64 kg Weight (gross): 71 kg
(freight forwarders)



Scope of delivery:

- 1x notebook loader wagon
- 2x key for the front door
- 1x triangle key for the Backdoor

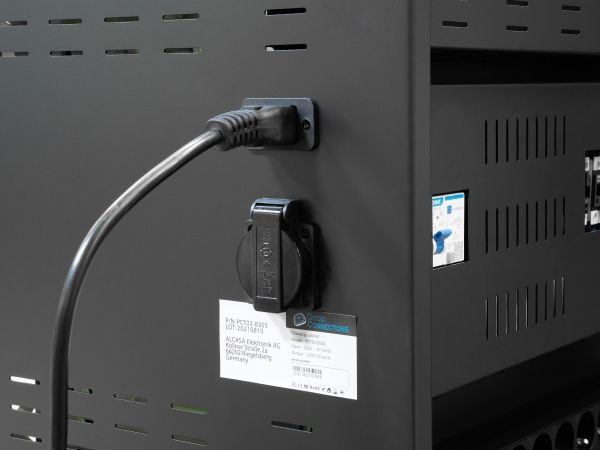

- 1x power cord safety plug on C19, 1.8 m
- 1x operating instructions
- 1x aluminum handle incl. mounting material (for models for 20 and more devices)Note:
Due to the constant improvement of the appearance and functionality of our loader wagons,

the products you purchase may differ from the description without prior notice.
