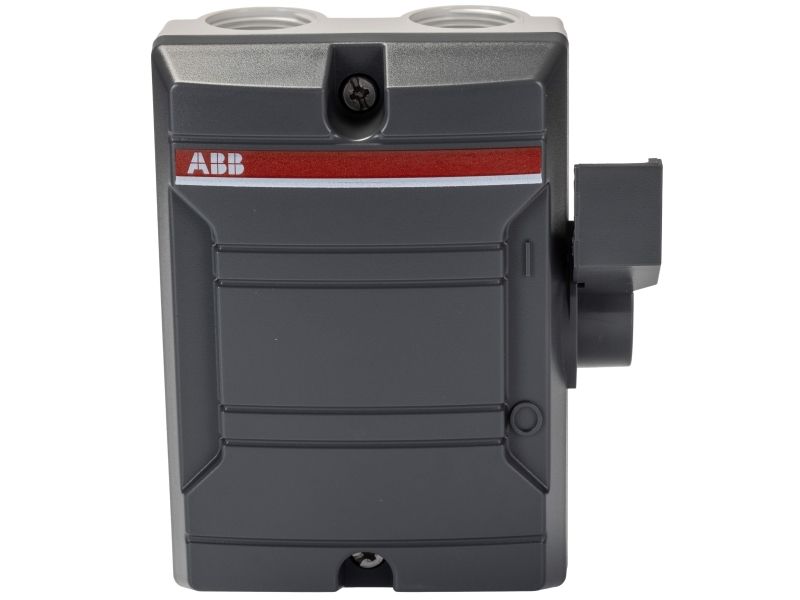

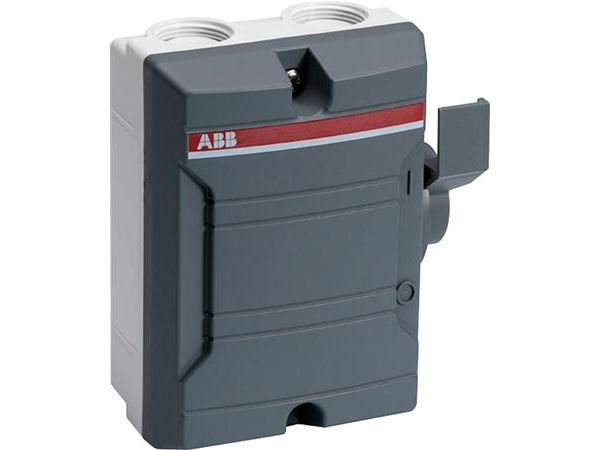

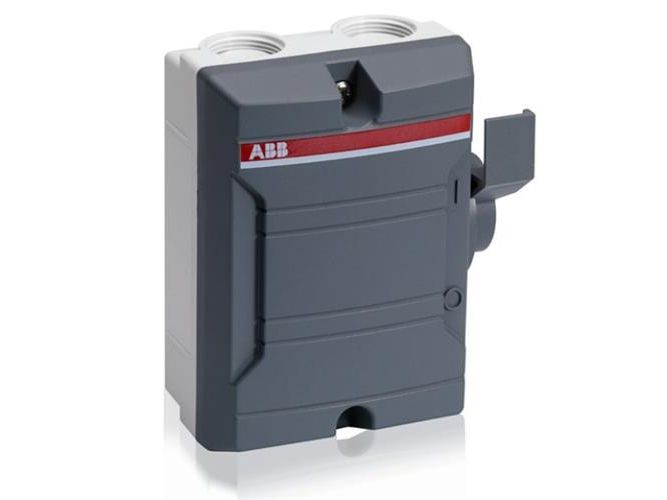

Sicherheitsschalter 16A 3-polig M25 ohne Hilfskontakt BWS 316F TPN

Artikelnummer: [1347743] | Produzent: ABB | Modell nummer: 2CMA142440R1000 | EAN: 7392696424400 | VVS-nr.: 2118800006 | UNSPSC.: 39122233 | EL-nr.: 7818401467
Externen Lager (3-4 Werktage)
Das Produkt befindet sich in einem externen Lager. Die Lieferfrist: ca. 3-4 Werktage. Mehr Info
Versandoptionen  - Wird im Checkout ausgewählt
Versand mit DHL - PaketShop
3,57
Versand mit DHL zur Adresse
11,90
Versand mit GLS - PaketShop
9,16
Versand mit GLS zur Adresse
11,90
Alle Versandoptionen anzeigen (4)
EUR 33,59
ex. MwSt. 28,23
Gesamtbetrag inkl. Versand. 37,16
Lesen Sie weitere Spezifikationen und Beschreibung
Safety switch, 3-p. 415V AC23 16A, 7.5kW. Plastic enclosure. IP65. Grey Side-operated handle. Interlocked cover. The enclosure of the ABB´s side controlled enclosed switches is made of rigid polycarbonate. The enclosure is UV protected, and protected against low pressure water jets (IP65), and hence built for outdoor and indoor use. The enclosure is available in different colors, grey, yellow and white. The cable entries are threaded and have knock out holes for 2 parallell cables, both from top and bottom. Membrane grommets are included (IP54). The handle is padlockable and made for one padlock. The cover is interlocked. The switch is made for 5 wire system, and have a fixed neutral terminal and PE terminal. The terminals are easily accessible for easy installation.
