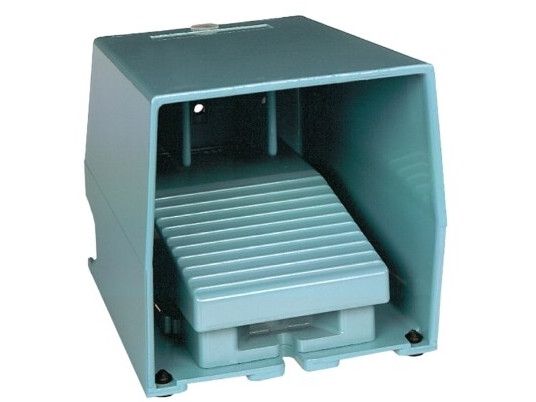

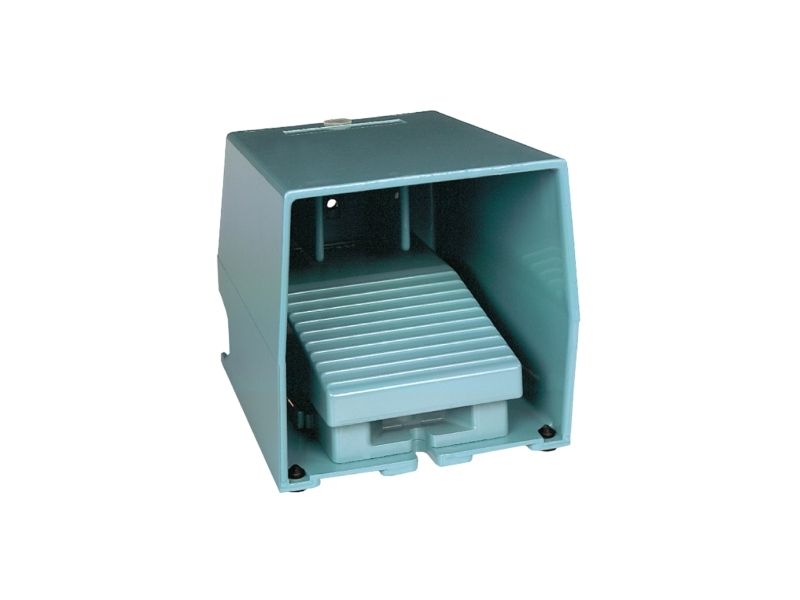

Schneider Electric XPEM311, verdrahtet, 2 NC + NA, Metall, IP66, blau, 2,42 kg

Schneider Electric Footswitches - XPE Range
A wide range of metal housed footswitches brought to you from Schneider Electric, ensuring you start on the right foot! They are available with or without a protective guard cover. The guarded cover types are strongly recommended in high-risk areas where accidental starting of a machine, either by human action or falling objects could occur.
- Large surface area of pedal assures stability of foot and provides operator comfort
- High and wide protective cover accommodates large sizes and safety boots
- Can be fixed to the floor or on a support for improved stability
- Approvals - U/CSA
- Schneider Electrics XPE range of industrial footswitches are robust
- A great feature of this range of foot switches is that they allow the operator greater freedom of movement
- Available with or without trigger mechanism in 1 or 2 step configurations
- The trigger mechanism types of footswitch enable locking of the pedal in rest position, positive action is required before the pedal can be depressed
- Footswitches within the XPE range that feature 2-step contact operation are ideal for applications involving 2-speed machines
- The first step (6mm travel) operates one set of NC + NO contacts before the second step operates the other NC + NO contacts during full actuator travel (12mm)
