ABB CM-MSS.23S, Sort, Grå, CAN/CSA C22.2 No.14 EN 50581 IEC/EN 60947-5-1 IEC/EN 60947-8 UL 508, 110 - 240 V, 22,5 x 85,6 x 103,7 mm, 174 g, 97 mm

Artikelnummer: [1644400] | Produzent: ABB | Modell nummer: 1SVR730700R2200 | EAN: 4013614496691 | EL-nr.: 7822538669
Externen Lager (7-9 Werktage)
Das Produkt befindet sich in einem externen Lager. Die Lieferfrist: ca. 7-9 Werktage.. Mehr Info
Versandoptionen  - Wird im Checkout ausgewählt
Versand mit DHL - PaketShop
3,57
Versand mit DHL zur Adresse
11,90
Versand mit GLS - PaketShop
9,16
Versand mit GLS zur Adresse
11,90
Alle Versandoptionen anzeigen (4)
EUR 102,33
ex. MwSt. 85,99
Gesamtbetrag inkl. Versand. 105,90
Lesen Sie weitere Spezifikationen und Beschreibung

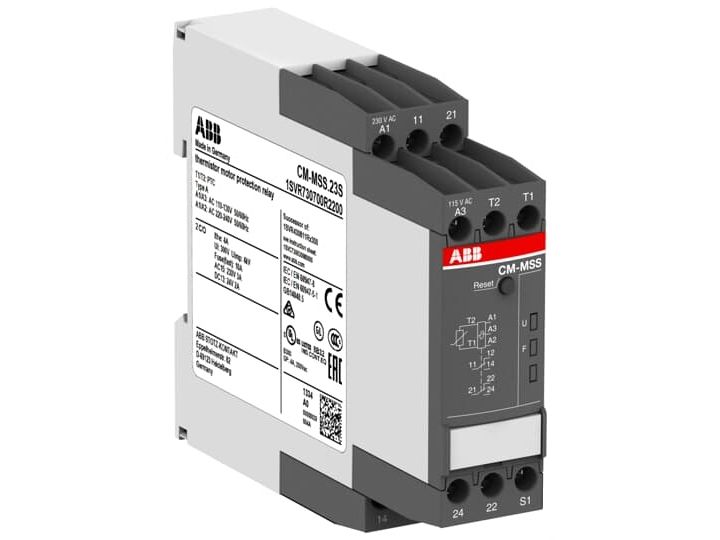

The CM-MSS.23S belongs to the CM-MSS thermistor motor protection relay range. It operates with a rated control supply voltage of 110-130 V AC and 220-240 V AC and has a 2 c/o (SPDT) output with contacts rated at 250 V / 4 A. It features one sensor circuit to monitor PTC temperature sensors and works according to the closed-circuit principle. The relay can be reset automatically, manually or remotely after the failure has been removed. A sealable transparent cover for protection against unauthorized changes is available as accessory. The device offers screw connection technology with double-chamber cage connection terminals.
