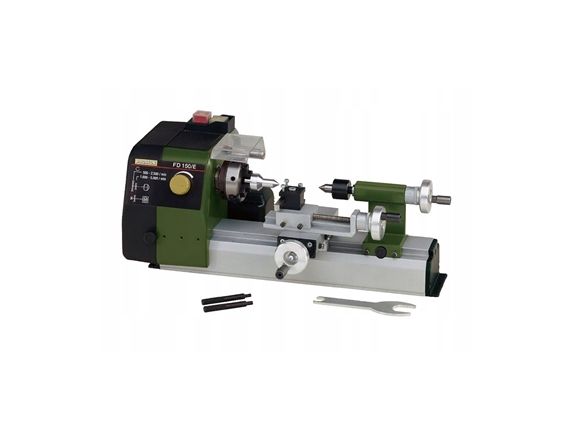

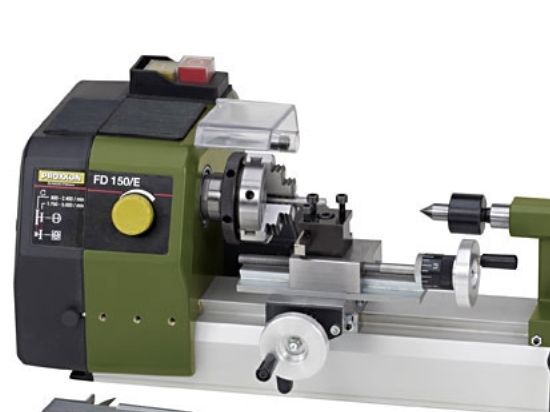

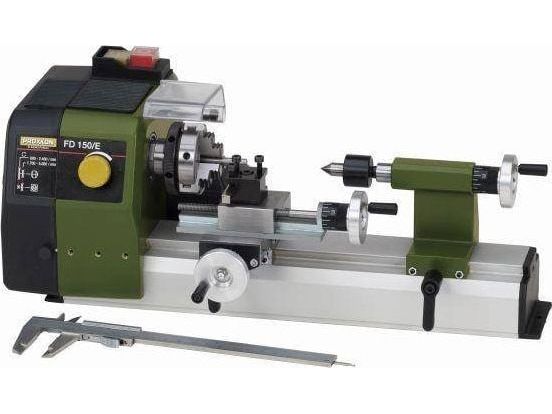

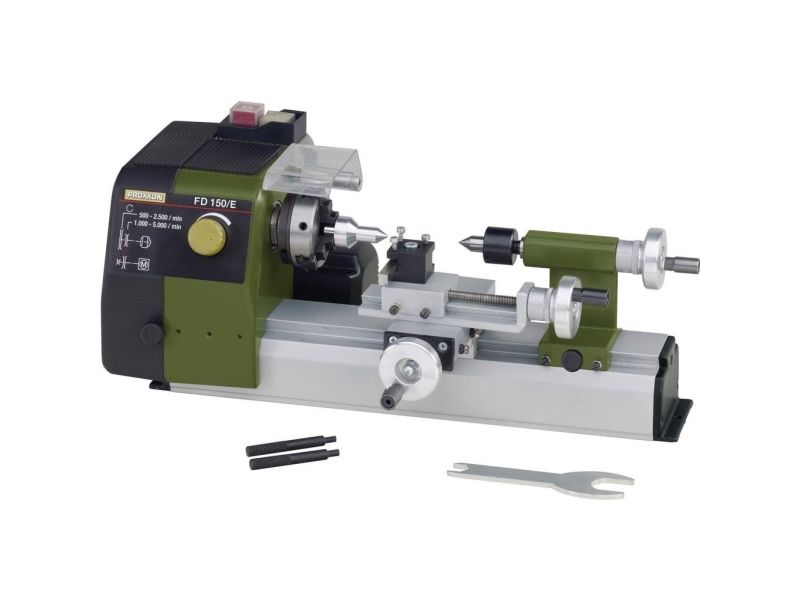

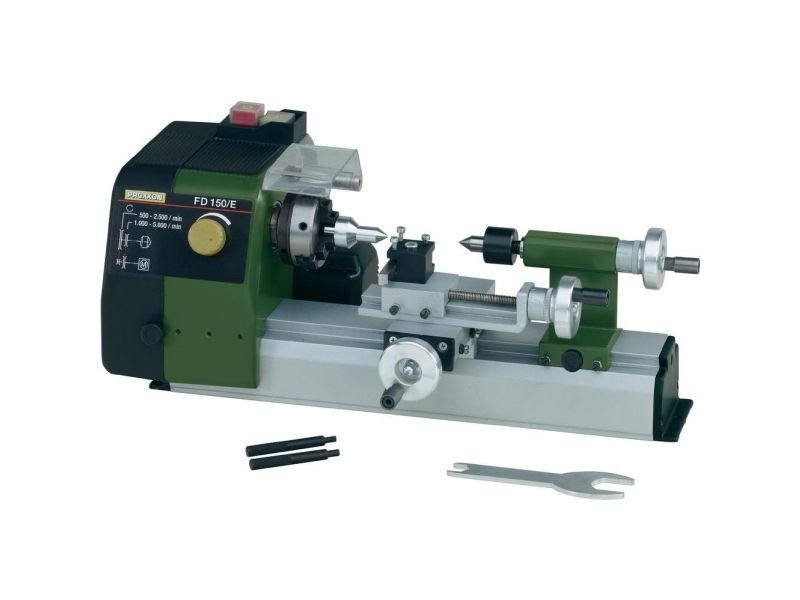

Proxxon FD 150, Metalworking, 800 RPM, 5000 RPM, 150 mm, 360 mm, 150 mm
Artikelnummer: [1770545] | Produzent: Proxxon | Modell nummer: 24 150 | EAN: 4006274241503
Externen Lager (5-6 Werktage)
Das Produkt befindet sich in einem externen Lager. Die Lieferfrist: ca. 5-6 Werktage. Mehr Info
Versandoptionen - Wird im Checkout ausgewählt
Versand mit DHL - PaketShop
Kostenloser Versand
Versand mit DHL zur Adresse
Kostenloser Versand
Versand mit GLS - PaketShop
Kostenloser Versand
Versand mit GLS zur Adresse
Kostenloser Versand
Alle Versandoptionen anzeigen (4)
EUR
593,10
ex. MwSt. 498,40
Gesamtbetrag inkl. Versand.
593,10
Die Funktion setzt voraus, dass Sie angemeldet sind. Erstellen Sie einen Nutzer und verwenden Sie unser intelligentes Listensystem, um zukünftige Einkäufe, regelmäßige Einkäufe oder Wunschlisten zu verfolgen.
Jetzt registrieren
Anmelden
Jetzt registrieren
Anmelden
Send på mail
Brauchen Sie ein Ersatzteil für Ihr Elektrowerkzeug?
Unser Konfigurator zeigt genau die passenden Teile für 24150 - Kohlebürsten, Schalter, Getriebe, Bohrfutter, Akkus und vieles mehr.
Ersatzteile für Ihr Modell finden- Teile für dieses Modell auf Lager
- Lieferung in 1-2 Werktagen
- Original- und kompatible Teile
2-stage belt drive and additional electronic speed control for spindle speeds up to 5,000rpm. For high engine power at low speeds for larger work pieces and for the appropriate cutting speed, even for smallest pieces. For facing and longitudinal turning, for boring, taper turning, slicing and drilling. Complete with three-jaw chuck and live centre.
- Machine bed with dovetail guides of continuous casting aluminium.
Die-cast aluminium headstock. With quiet special DC motor, 2-stage belt drive and additional electronic speed control for high engine power at low speeds for larger work pieces and for the appropriate cutting speed, even for the smallest pieces. Main switch with emergency stop function and restart protection. Precision bearing mounted main spindle with continuous 8.5mm bore. Chuck fit for standard ER 11 type collets.
- Three-jaw chuck, self-centering (inside jaws 1.5 - 32mm), outside jaws 20 - 60mm).
Die-cast aluminium tailstock with spindle and live centre (fitting MK 0/ short).
- Support: To be shifted manually on the bed and clamped with lever. Rotating tool post for turning steels 6 x 6mm.
Processing via top slide (60mm, travel distance Z) and cross slide (40mm, travel distance X). The angle adjustment of the upper carriage makes it possible to turn tapers up to +/- 45°.
- Handwheels with zero adjustable scale ring (1 division = 0.05mm, 1 revolution = 1.0mm).
- Machine bed with dovetail guides of continuous casting aluminium.
Die-cast aluminium headstock. With quiet special DC motor, 2-stage belt drive and additional electronic speed control for high engine power at low speeds for larger work pieces and for the appropriate cutting speed, even for the smallest pieces. Main switch with emergency stop function and restart protection. Precision bearing mounted main spindle with continuous 8.5mm bore. Chuck fit for standard ER 11 type collets.
- Three-jaw chuck, self-centering (inside jaws 1.5 - 32mm), outside jaws 20 - 60mm).
Die-cast aluminium tailstock with spindle and live centre (fitting MK 0/ short).
- Support: To be shifted manually on the bed and clamped with lever. Rotating tool post for turning steels 6 x 6mm.
Processing via top slide (60mm, travel distance Z) and cross slide (40mm, travel distance X). The angle adjustment of the upper carriage makes it possible to turn tapers up to +/- 45°.
- Handwheels with zero adjustable scale ring (1 division = 0.05mm, 1 revolution = 1.0mm).
