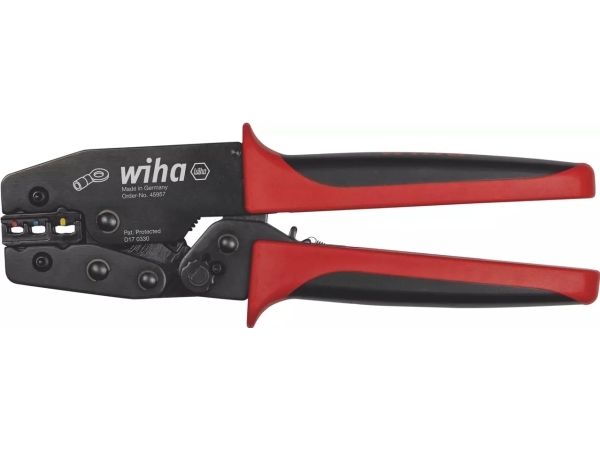

Wiha 45957, Crimpwerkzeug

Conventional use of crimping pliers poses a risk that cable lugs will snag in the pliers or be crimped incorrectly. The crimping pliers with oval crimping (O-Crimp) from Wiha can eliminate unnecessary waste of cable and wire-end sleeves. They have a crimping range from 0.5 to 6 mm², which covers a large part of all possible applications. Thanks to the color coding of the crimping ranges, the red area can be used for crimping connectors insulated in red from 0.5 to 1.0 mm², the blue area for connectors insulated in blue from 1.5 to 2.5 mm² and the yellow area for connectors insulated in yellow from 4 to 6 mm².
Product dimensions
220 x 80 x 25 mm (LxWxD)
Standards
Crimping according to DIN 46231, DIN 46237, DIN 46245 part 1-3.
Application
For processing red, blue and yellow insulated cable lugs, pin terminals, male blade connectors, female blade connectors, circular pins, butt connectors and parallel connectors.
