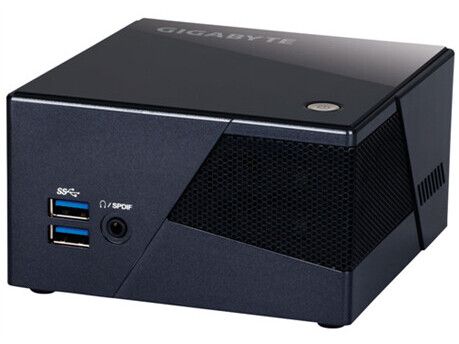

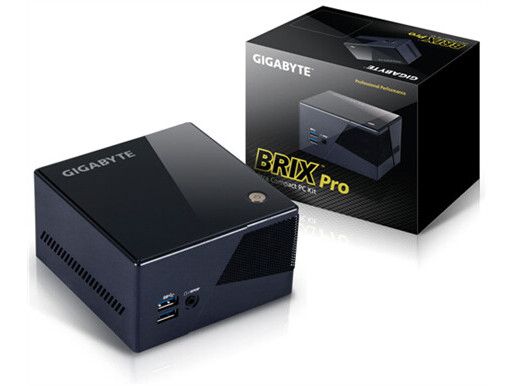

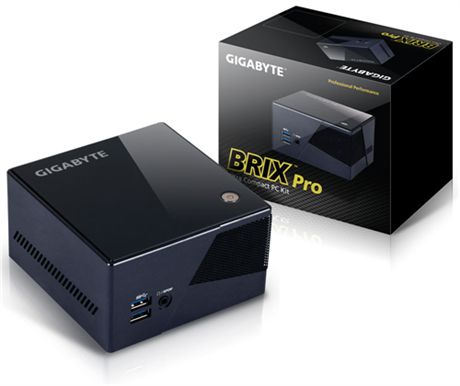

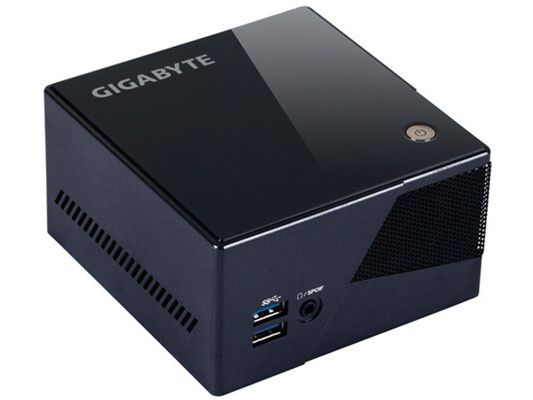

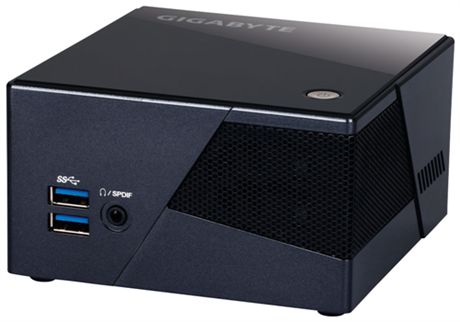

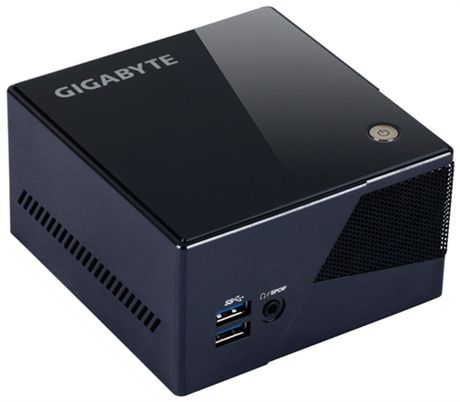

The BRIX Pro takes the signature compact design philosophy of the GIGABYTE BRIX series, adding a high-performance Intel Core i7 processor featuring Intel Iris Pro graphics. As well as a featuring a true high-performance processor that is ideally suited to CPU-intensive applications like image design and video editing, the superior graphics performance of the BRIX Pro means it's also great for 3D gaming.
Eingebauter Prozessor
Ja
Prozessorhersteller
Intel
Prozessorfamilie
Intel® Core™ i7
Prozessorgeneration
Intel® Core™ i7 der vierten Generation
Prozessor
i7-4770R
Prozessor-Taktfrequenz
3,2 GHz
Anzahl Prozessorkerne
4
Prozessor-Threads
8
Prozessor Lithografie
22 nm
Prozessor Boost-Frequenz
3,9 GHz
Pufferspeicher L2
6 MB
Thermal Design Power (TDP)
65 W
Prozessor Codename
Crystal Well
Prozessor-Serien
Intel Core i7-4700 Desktop series
CPU Konfiguration (max)
1

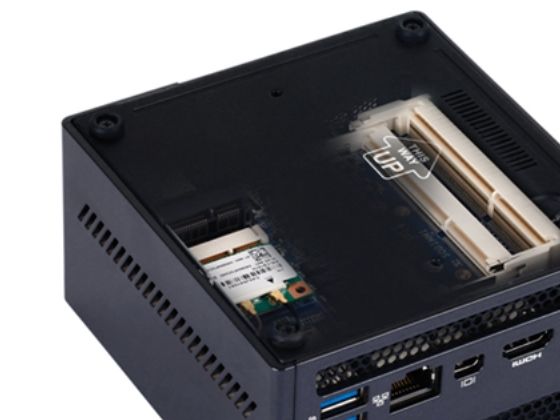

Arbeitsspeicher Typ
SO-DIMM

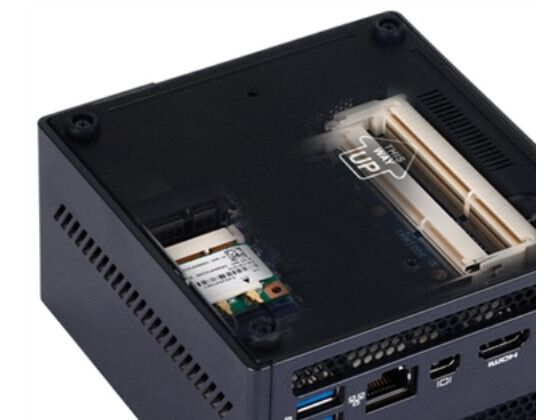

Anzahl der Speichersteckplätze
2
RAM-Speicher maximal
16 GB
Unterstützte Arbeitsspeichergeschwindigkeit
1333,1600 MHz
Unterstützte Arbeitsspeicher
DDR3-SDRAM
unterstützte Speicherlaufwerksgrößen
2.5 Zoll
Speicherlaufwerk Schnittstelle
Serial ATA III
Eingebaute Grafikadapter
Ja
Grafikkarte-Familie
Intel
On-Board Grafikadaptermodell
Intel® Iris™ Pro Grafik 5200
Eingebauter Ethernet-Anschluss
Ja
WLAN
Ja
Netzwerkfunktionen
802.11 a/b/g/n/ac
LAN-Controller
Realtek RTL8111G
Bluetooth
Ja
Bluetooth-Version
4.0
USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A
4

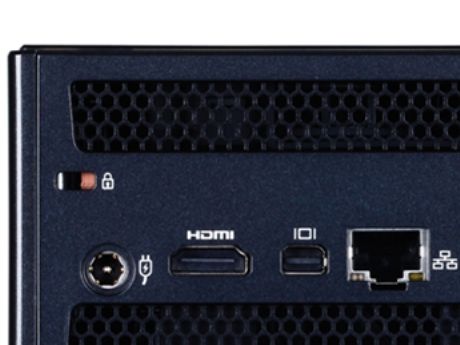

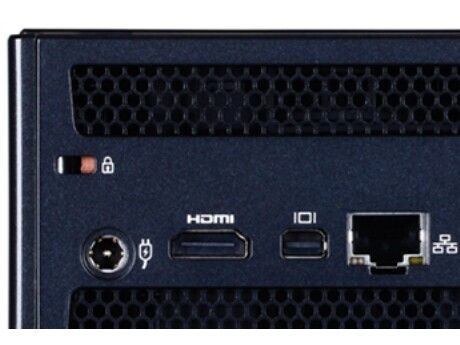

Anzahl HDMI-Anschlüsse
1
Anzahl Ethernet-LAN-Anschlüsse (RJ-45)
1
Anzahl Mini DisplayPorts
1
S/PDIF-Ausgang
Ja
PCI-Express-Slots-Version
3.0
Mini PCI-Express-Slots
1
PCI Express Konfigurationen
1x16, 2x8, 1x8+2x4
Gehäusetyp
USFF
Produktfarbe
Schwarz
Produkttyp
Mini-PC Barebone
Ein-/Ausschalter
Ja
Panel-Montage-Schnittstelle
75 x 75,100 x 100 mm
Prozessorsockel
BGA 1364
Anzahl unterstützter Prozessoren
1
Kompatible Prozessoren
Intel® Core™ i7
Unterstützte maximale Prozessortaktrate
3,9 GHz
Audio-System
Realtek ALC269
Installiertes Betriebssystem
Nein
Eingebettete Optionen verfügbar
Nein
Intel® Anti-Theft Technologie (Intel® AT)
Ja
Intel® AES New Instructions (Intel® AES-NI)
Ja
Intel® Quick-Sync-Video-Technik
Ja
Intel® InTru™ 3D Technologie
Ja
Intel® Insider™
Ja
Intel® Wireless-Display (Intel® WiDi)
Ja
Intel® FDI-Technik
Ja
Intel® Clear Video HD Technology für (Intel® CVT HD)
