Crestron HD-RXC-4KZ-101-1G-B - Video/Audio/Infrarot/serieller Extender - Empfänger - DM Essentials - über CATx - bis zu 70 m

The HD-RXC-4KZ-101-1G is a DM® Essentials 4K60 4:4:4 wall plate receiver designed to interoperate with a DM® Essentials transmitter or DMPS Essentials switcher for the transmission of HDMI®, RS-232, and IR signals. A CAT5e or higher twisted pair cable (Crestron DM-CBL-8G or DM-CBL-ULTRA sold separately) is needed to connect the HD-RXC-4KZ-101-1G to the DM Essentials transmitter or DMPS Essentials switcher. For 1080p, WUXGA, and 2K signals, a cable length of up to 230 ft (70 m) is supported. For UHD and 4K signals, a cable length of up to 130 ft (40 m) is supported.

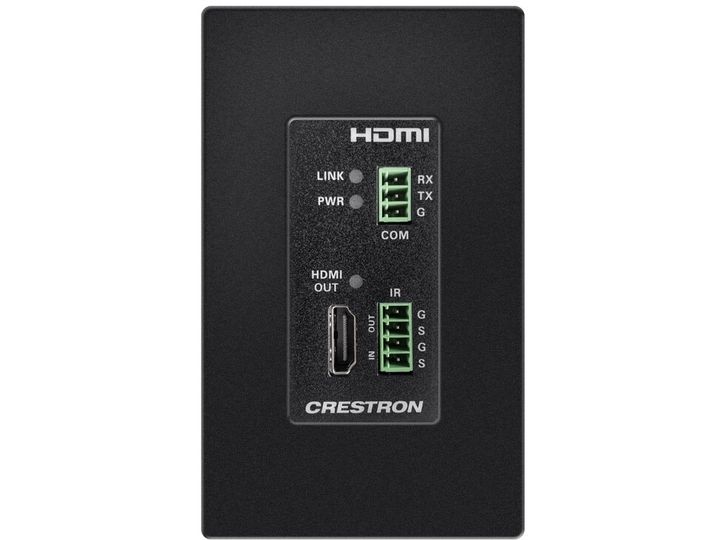

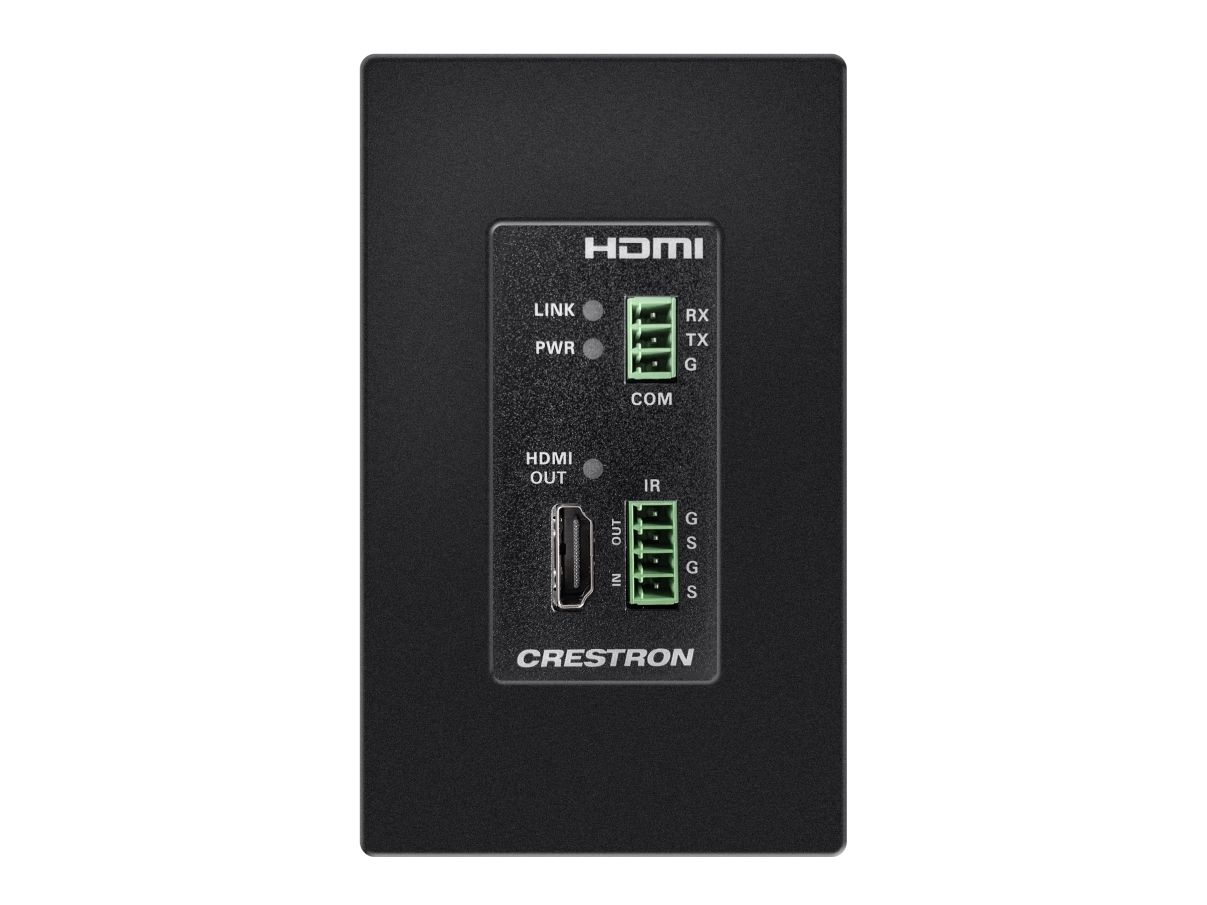

The HD-RXC-4KZ-101-1G is available in black (model HD-RXC-4KZ-101-1G-B).

Interoperability with a DM Essentials Transmitter or DMPS Essentials Switcher
The DM Essentials input port of the HD-RXC-4KZ-101-1G must be connected to a DM Essentials output port of a DM Essentials transmitter or DMPS Essentials switcher. Examples of supported DM Essentials 4K60 4:4:4 transmitters are the HD-TXC-4KZ-101 and HD-TXCA-4KZ-101. Supported DMPS Essentials switchers are the HD-PS622, HD-PS621, HD-PS402, and HD-PS401.

The HD-RXC-4KZ-101-1G can be configured and controlled only when it is used with a DMPS Essentials switcher. The web interface of the switcher can be used to configure the HD-RXC-4KZ-101-1G. In addition, control system programming and .AV Framework™ software support of the HD-RXC-4KZ-101-1G is hosted by the switcher.

4K60 4:4:4 and HDR Support

The HD-RXC-4KZ-101-1G supports video resolutions up to 4K60 with 4:4:4 color sampling. HDR10, HDR10+, and Dolby Vision® video formats are also supported.

One-Gang Wall Plate Design

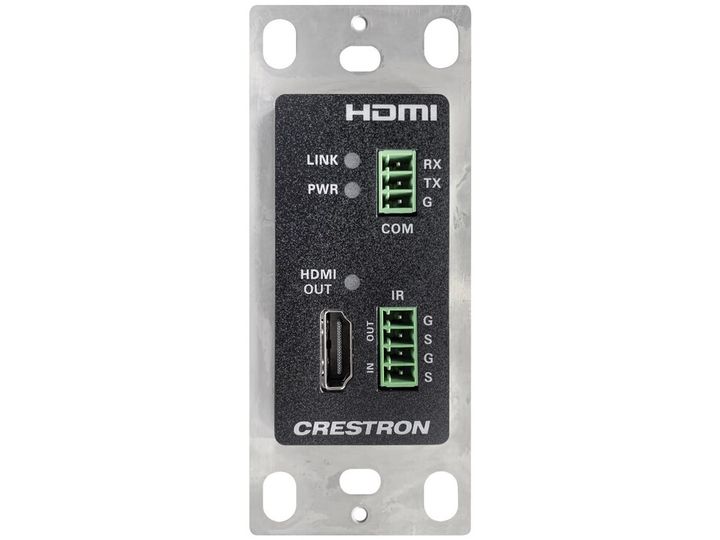

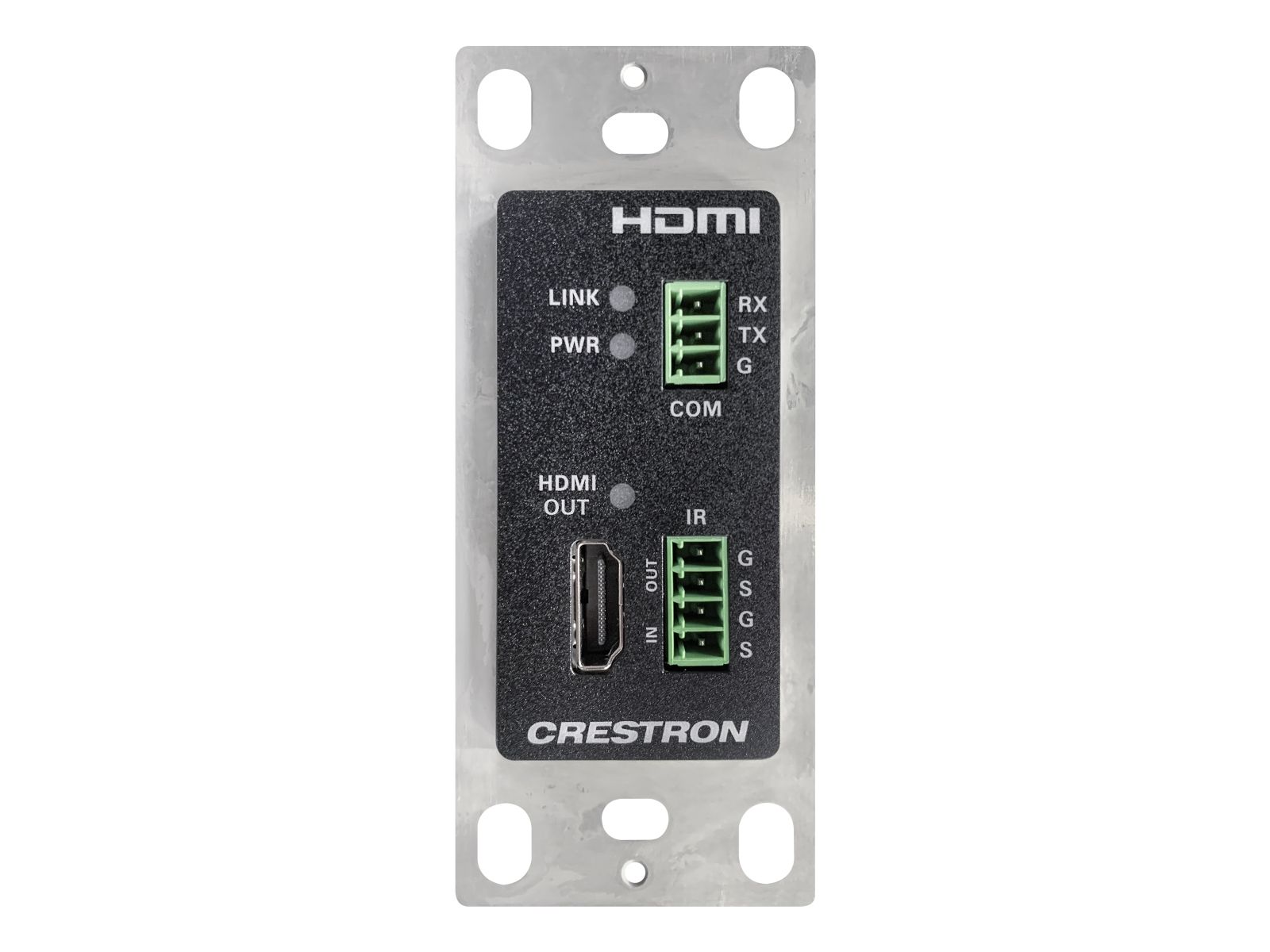

The HD-RXC-4KZ-101-1G is designed to mount into a 1-gang U.S. electrical box or plaster ring (not included). The HD-RXC-4KZ-101-1G can receive power from the remote DM Essentials transmitter (surface mountable only) or DMPS Essentials switcher.
