ATX 3.1 Fully Modular 80 PLUS Gold Certified ATX Power Supply Unit
MWE Gold 1250 V2 ATX 3.1
Connect the Future, connect ATX 3.1
100% ATX 3.1 Compatible
Cooler Master took the initiative and continuously developing our first ATX 3.1 Power Supply lineup. Compliant with ATX 3.1 standard and 12V-2x6 connectors, the MWE Gold 1050/1250 V2 ATX 3.1 can fully support the peak power drawn by the 40 series RTX graphic cards and whole system.
80 PLUS Gold Certified
Efficiency has always been one of the most important factors for users when choosing their power supply unit. While there are a range of efficiency options, 80 PLUS Gold has been the ideal choice for the last several years and continues to be seen as the standard for much of the world. The MWE Gold 1050/1250 V2 ATX 3.1 features 80 PLUS Gold certification, guaranteeing 90% efficiency at typical load.
Quiet Cooling
The MWE Gold 1050/1250 V2 ATX 3.1 has been optimized with an 140mm fan along with an advanced fluid-dynamic bearing (FDB) delivers quiet and effective cooling with a long lifespan. With Smart Thermal Control System (STCM), the fan will not spin until at 40% of rated output power to reduce noise.
Industrial-grade Temperature Resilience
The MWE Gold 1050/1250 V2 ATX 3.1 has improved to operate safely at up to 50 degrees Celsius ambient for high-end computer, overclocking and other high intensity applications. Such a high threshold greatly enhances the performance of your PSU and your system.

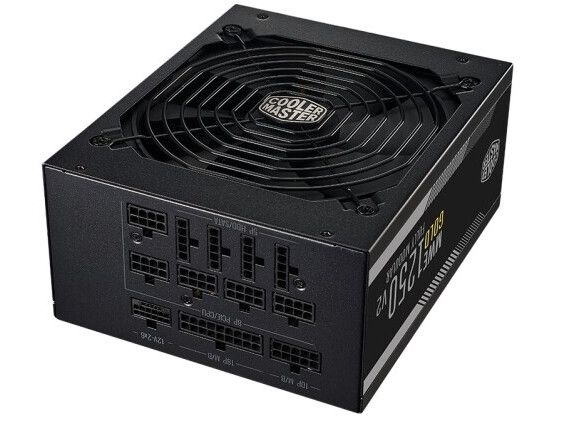

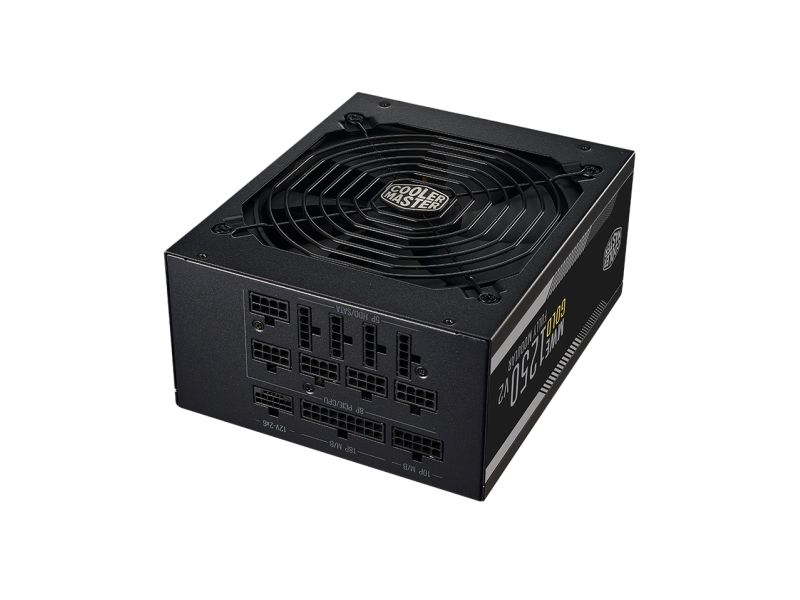

Fully Modular Cabling
The fully modular version of the MWE Gold 1050/1250 V2 ATX 3.1 comes with a set of flat black cables that can be customized to each user's individual needs. It's designed for easy cable management that each system only needs to include the cables required. This unused space within the chassis allows for reduced clutter, better airflow and aesthetic, thereby improving your system's overall cooling.
PSU Calculator
Need help choosing the right power supply for your system? Try out our easy to use, comprehensive PSU calculator.
Gesamtleistung
1250 W
AC Eingangsspannung
100 - 240 V
AC Eingangsfrequenz
50/60 Hz
Eingangsstrom
15 - 7 A
Leistungsfaktorkorrekturfilter (PFC)
Aktiv
Kombinierter Strom (+3.3V)
120 W
Kombinierter Strom (+12V)
1248 W
Kombinierter Strom (+5V)
120 W
Kombinierter Strom (-12V)
3,6 W
Kombinierter Strom (+5Vsb)
15 W
Max. Ausgangsstrom (+3.3V)
20 A
Max. Ausgangsstrom (+12V)
104 A
Max. Ausgangsstrom (-12V)
0,3 A
Max. Ausgangsstrom (+5Vsb)
3 A
Haltezeit
16 ms
Effizienz
90%
Power Good Signal Verzögerungsbereich
100 - 150 ms
Energieschutzeigenschaften
Überstrom, Überlastung, Überschreitung der zulässigen Gesamtspannung, Überspannung, Kurzschluß, Unterspannung
Motherboard Anschlussstecker
24-pin ATX
Anzahl Molex Anschlüsse 4pin
4
Stromkabellänge Motherboard
65 cm
Anzahl SATA Stromstecker
12
SATA-Netzkabellänge
500,620,740,860 mm
Periphere (Molex) Netzkabellänge
740,620,500,860 mm
EPS Stromstecker (8-pin)
Ja
EPS-Stromanschluss (4+4-polig)
Ja
Anzahl PCI Express Stromstecker 6+2pin
3
ATX Stromstecker (24-pol.)
Ja
Kabeltyp
Vollständig modular
Zweck
PC
Stromversorgungseinheit (PSU) Formfaktor
ATX
80 Plus Zertifizierung
80 PLUS Gold
ATX-Version
3.1
Lagertyp
TBB
Mittlere Betriebsdauer zwischen Ausfällen (MTBF)
100000 h
Produktfarbe
Schwarz
Kühlung
Aktiv
Lüfterdurchmesser
14 cm
Anzahl Lüfter
1 Lüfter
Lüfterplatzierung
Oben
Ein-/Ausschalter
Ja
Betriebstemperatur
0 - 50 °C
Zertifizierung
TUV, cTUVus, CE, FCC, BSMI, CCC, EAC, RCM,UKCA, BIS
Breite
150 mm
Tiefe
180 mm
Höhe
86 mm
Gewicht
3,02 kg
Verpackungsbreite
197 mm
Verpackungstiefe
333 mm
Verpackungshöhe
122 mm
Paketgewicht
3,42 kg
Verpackungsart
Box
Nachhaltigkeitszertifikate
ErP
Das Produkt hat folgende Artikelnummer in unserem System
EAN:
4719512151204
SKU:
MPE-C501-AFCAG-3EEU
