M5Stack K128, Mikrocontroller, M5, M5Stack, Schwarz, Weiß, LCD, 5,08 cm (2")
Artikelnummer: [24084916] | Produzent: M5Stack | Modell nummer: AN-23180 | EAN: 6972934174284
Externen Lager (16-23 Werktage)
Das Produkt befindet sich in einem externen Lager. Die Lieferfrist: ca. 16-23 Werktage. Mehr Info
Versandoptionen - Wird im Checkout ausgewählt
Versand mit DHL - PaketShop
3,57
Versand mit DHL zur Adresse
11,90
Versand mit GLS - PaketShop
9,16
Versand mit GLS zur Adresse
11,90
Alle Versandoptionen anzeigen (4)
EUR
103,66
ex. MwSt. 87,11
Gesamtbetrag inkl. Versand.
107,23
Die Funktion setzt voraus, dass Sie angemeldet sind. Erstellen Sie einen Nutzer und verwenden Sie unser intelligentes Listensystem, um zukünftige Einkäufe, regelmäßige Einkäufe oder Wunschlisten zu verfolgen.
Jetzt registrieren
Anmelden
Jetzt registrieren
Anmelden
Send på mail

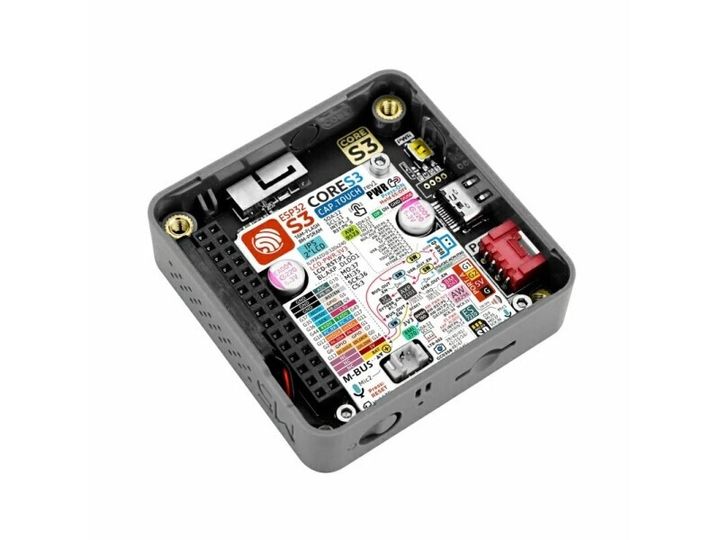

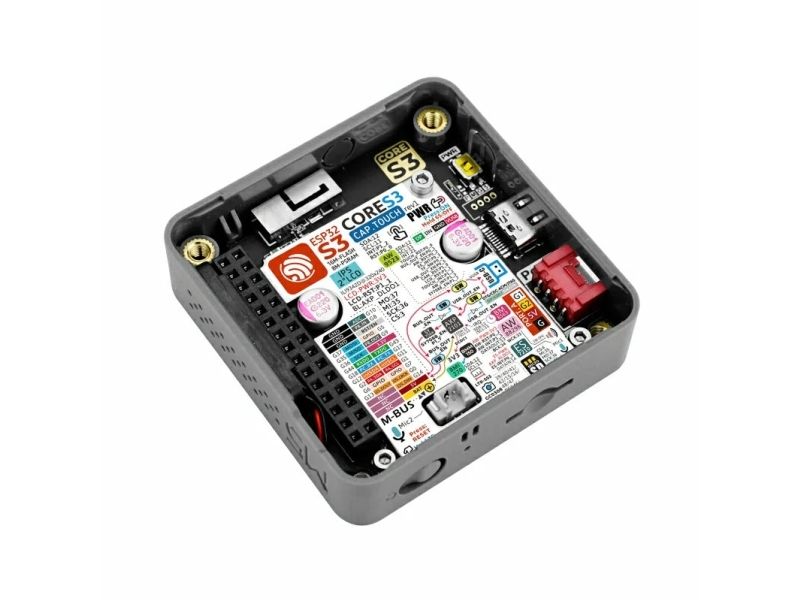

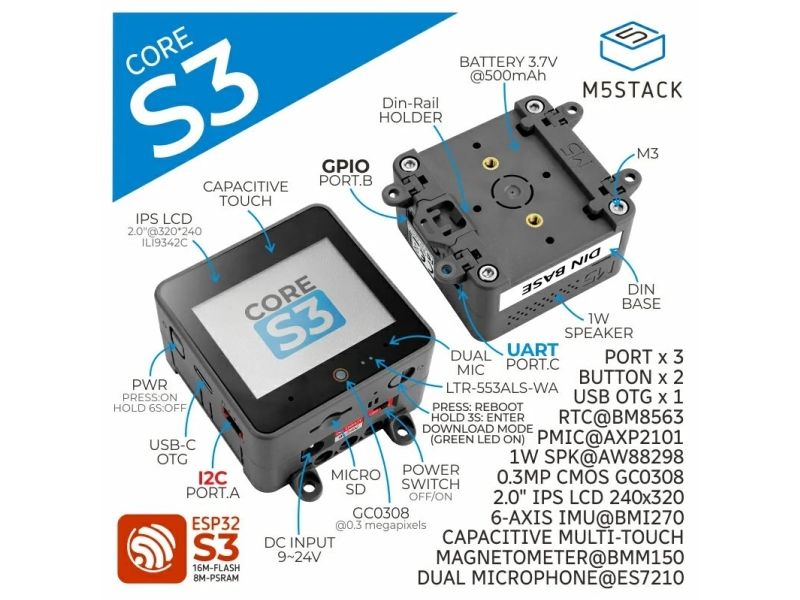

CoreS3 is the third generation of the M5Stack Core series. Powered by the ESP32-S3 solution, this kit features a dual-core Xtensa LX7 processor running at 240MHz. CoreS3 comes equipped with built-in Wi-Fi functionality, enabling seamless connectivity. It boasts 16MB of onboard flash memory and 8MB of PSRAM, providing ample space for program storage.

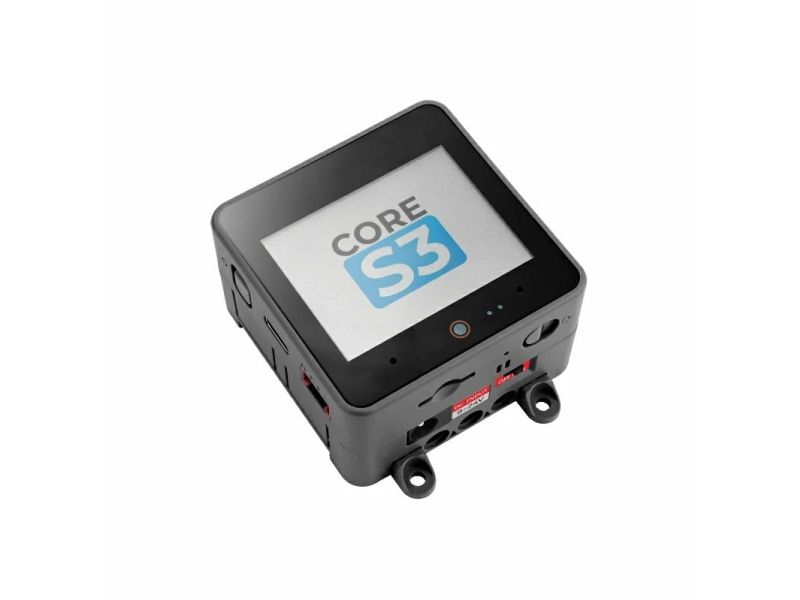

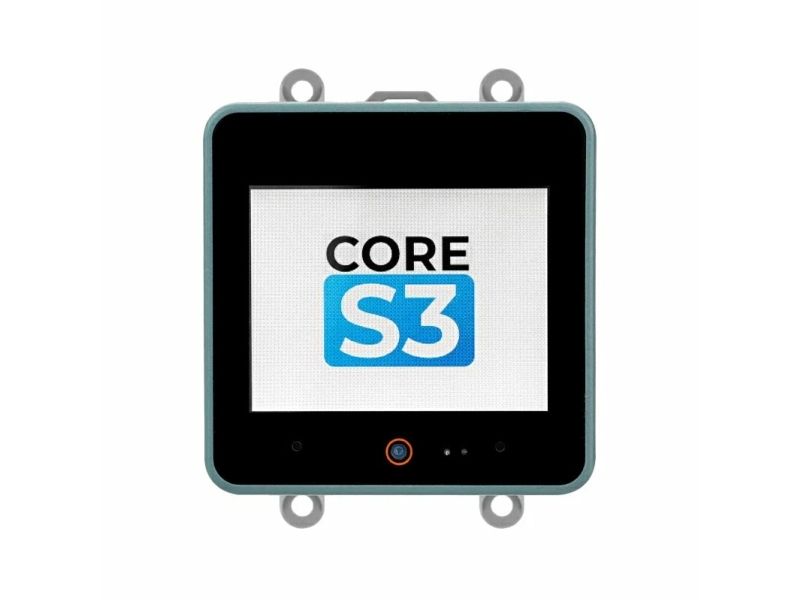

CoreS3 offers convenient programming options through its TYPE-C interface, supporting OTG and CDC functions. This allows for easy connection with external USB devices and hassle-free firmware flashing. CoreS3 features a 2.0-inch capacitive touch IPS screen, protected by high-strength glass material. Additionally, a 30W pixel camera GC0308 is integrated at the bottom of the screen, accompanied by a proximity sensor LTR-553ALS-WA for enhanced functionality. Power management is handled by the AXP2101 power management core chip, employing a 4-way power flow control loop for efficient power distribution. The overall design emphasizes low power consumption. CoreS3 also features a 6-axis attitude sensor BMI270 and a magnetometer BMM150 for precise motion detection. With the onboard TF-card (microSD) card slot and BM8563 RTC chip, accurate timing and sleep-timer wake-up functions are readily available.

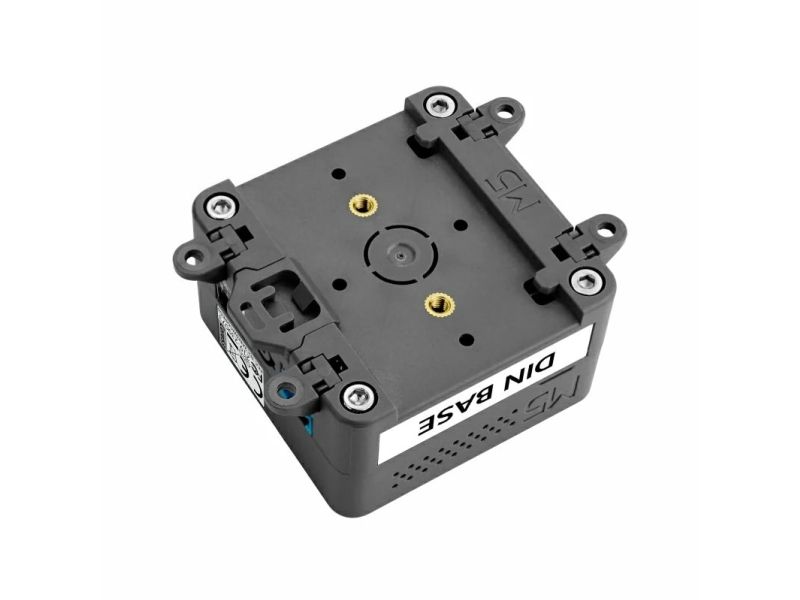

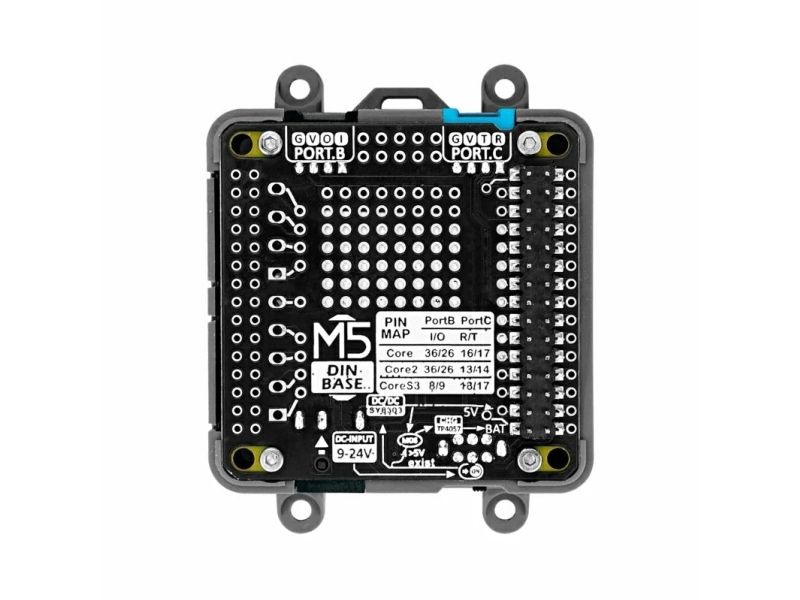

Sound output on CoreS3 is optimized with the high-fidelity 16-bit I2S power amplifier chip AW88298, accompanied by a built-in 1W speaker for clear audio playback. For sound input, the kit incorporates the ES7210 audio decoding chip and dual-microphone input. The side of the device includes an independent power button and restart (RST) button, complemented by a self-built delay circuit. By long-pressing the reset button, users can easily enter the program download mode. The CoreS3 kit comes with the DinBase Base, providing convenient options for Din rail, wall, and screw fixing. It can be powered by an external DC 12V (supports 9~24V) or an internal 500mAh lithium battery. The DinBase also offers multiple proto locations for users to customize and expand their projects. CoreS3 is an ideal choice for IoT development, various DIY project development, smart home control systems, and industrial automation control systems.
Power on and off operation:
Power on: Click the left power button
shut down: Long press the left power button for 6 seconds
reset: Click the bottom RST button
CoreS3 offers convenient programming options through its TYPE-C interface, supporting OTG and CDC functions. This allows for easy connection with external USB devices and hassle-free firmware flashing. CoreS3 features a 2.0-inch capacitive touch IPS screen, protected by high-strength glass material. Additionally, a 30W pixel camera GC0308 is integrated at the bottom of the screen, accompanied by a proximity sensor LTR-553ALS-WA for enhanced functionality. Power management is handled by the AXP2101 power management core chip, employing a 4-way power flow control loop for efficient power distribution. The overall design emphasizes low power consumption. CoreS3 also features a 6-axis attitude sensor BMI270 and a magnetometer BMM150 for precise motion detection. With the onboard TF-card (microSD) card slot and BM8563 RTC chip, accurate timing and sleep-timer wake-up functions are readily available.
Sound output on CoreS3 is optimized with the high-fidelity 16-bit I2S power amplifier chip AW88298, accompanied by a built-in 1W speaker for clear audio playback. For sound input, the kit incorporates the ES7210 audio decoding chip and dual-microphone input. The side of the device includes an independent power button and restart (RST) button, complemented by a self-built delay circuit. By long-pressing the reset button, users can easily enter the program download mode. The CoreS3 kit comes with the DinBase Base, providing convenient options for Din rail, wall, and screw fixing. It can be powered by an external DC 12V (supports 9~24V) or an internal 500mAh lithium battery. The DinBase also offers multiple proto locations for users to customize and expand their projects. CoreS3 is an ideal choice for IoT development, various DIY project development, smart home control systems, and industrial automation control systems.
Power on and off operation:
Power on: Click the left power button
shut down: Long press the left power button for 6 seconds
reset: Click the bottom RST button
