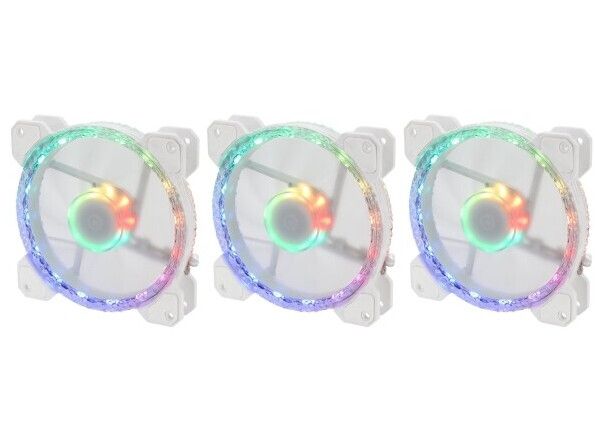

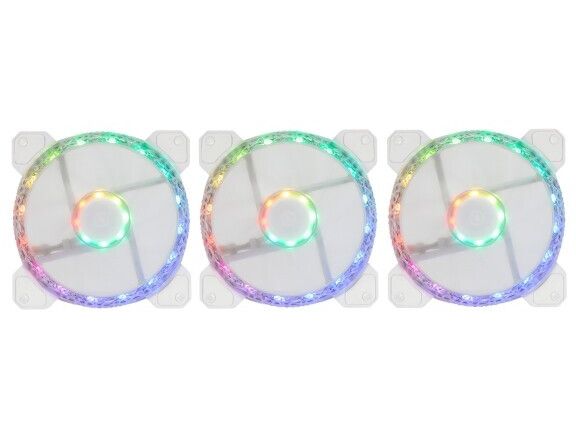

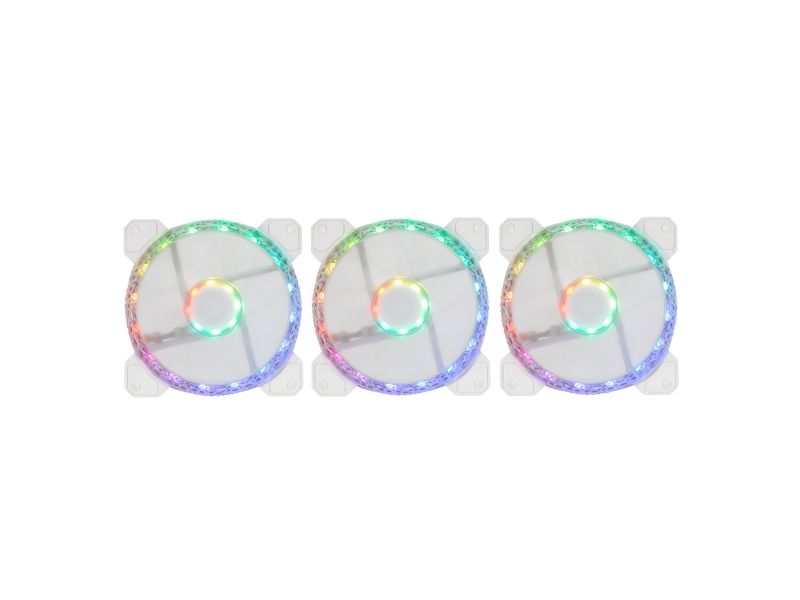

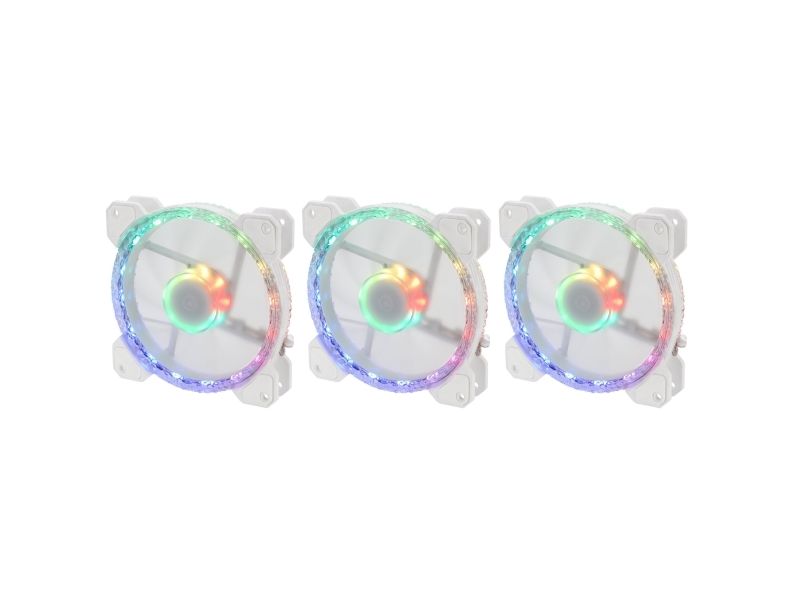

Gelid Solutions Stella Daisy Chain, Ventilator, 12 cm, 70 Kubikfuß/min, Weiß

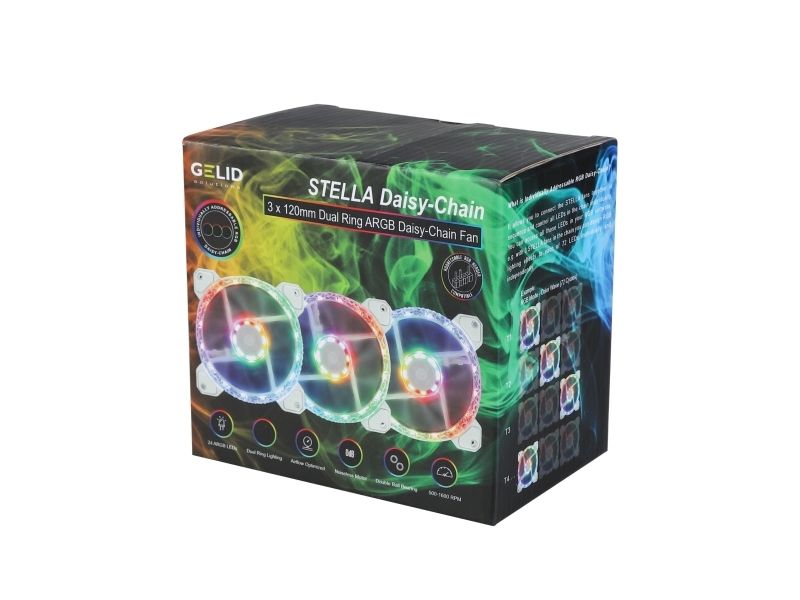

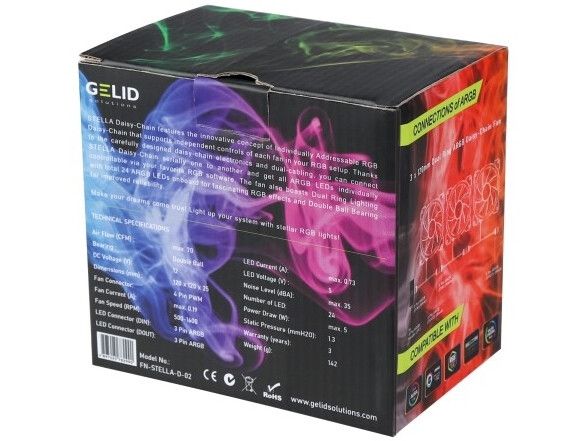

STELLA Daisy Chain (FN-STELLA-D-02)

Make your dreams come true! Light up your System with STELLA RGB lights!
STELLA Daisy-Chain features the innovative concept of Individually Addressable RGB Daisy-Chain that supports independent controls of each fan in your RGB setup. Thanks to the carefully designed daisy-chain electronics and dual-cabling, you can connect STELLA Daisy-Chain serially one to another and get all ARGB LEDs individually controllable via your favorite RGB software.

The fan also boasts Dual Ring Lighting with total 24 ARGB LEDs onboard for fascinating RGB effects and Double Ball Bearing for improved reliability.

Individually Addressable RGB Daisy-Chain: true daisy-chain connection and individual controls of each fan via RGB software.

24 ARGB LEDs: High-bright LEDs for a stunningly vivid RGB Lighting experience.

Dual Ring Lighting: Limitless dynamic color modes and RGB effects via independent hub-mounted and ring-mounted LED arrays.

Airflow Optimized: The new optimized blade for higher airflow and lesser noise.

Noiseless Motor Drive IC: Enhanced motor driver circuitry to eliminate clicking noise.

Double Ball Bearing: Carefully selected top-quality ball bearings for ultra-durable operation.

Wide Range RPM: Extended speed range 500 – 1600 RPM.

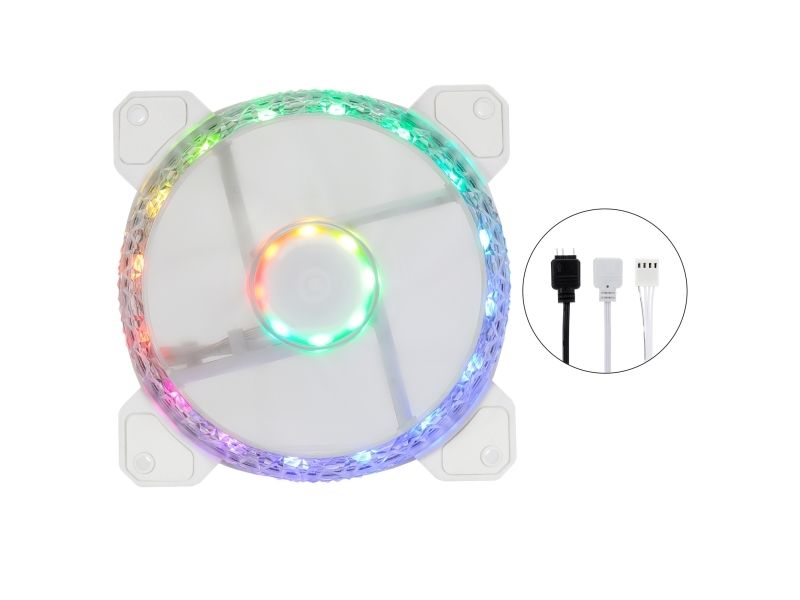

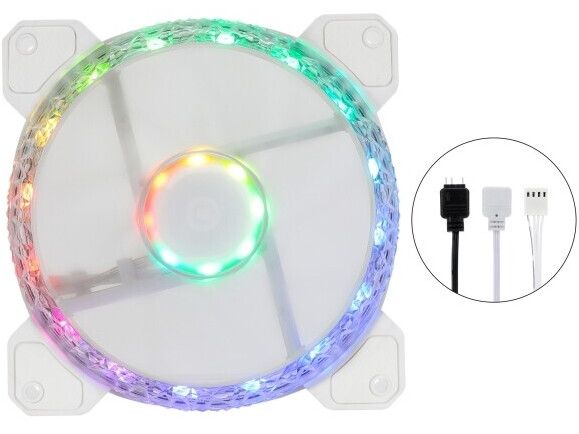

Broad Compatibility: All modern motherboards with RGB Sync controls and 5V Addressable RGB (ARGB) headers are supported.

Standard RGB and Individually Addressable RGB (ARGB) Explained

In standard RGB applications, this type of fans uses the standard RGB LED header with 4-wiring: 12V, R, G, B. All the LEDs integrated with the fan are then connected onto the same 4 busses, they are all controlled as a whole, so they each will output exactly the same color.

It’s like you set color for an object in your graphics editor, for example, Red: 25, Green: 50 and Blue: 125, an external RGB controller or motherboard drives the standard RGB LED fan in the same way by altering power on the color busses at a proper duty cycle – the Red, Green and Blue bus, respectively – to output the desired RGB color.

Of course, colors can be managed dynamically, with numerous lighting effects in series. But uniformity of the LEDs – one color for all the LEDs at a time – limits RGB lighting effects to some degree.

STELLA Individually Addressable RGB (ARGB)
Unlike the standard RGB fans, controls of the individually addressable RGB (ARGB) fans are digital in nature. For this case, the fans use the addressable RGB LED header with 3-wiring: 5V, D, Ground. The LEDs integrated into the fan have a special companion IC which drives each of them individually: it resides on a one-wire serial bus and sends commands like “LEDs number 3, 5 and 6: switch to green” to set the desired color per individual LED. So, each of the LEDs has its own ID and is controlled independently from the others. In turn, an external app can be used to program the IC giving virtually unlimited options of color modes and effects. Rainbow-circle, rotating colors, multi-point pulsating colors and some other stunningly vivid RGB lighting effects are available only with the ARGB fans. But, as far as this type of fans supports digital RGB controls only, it’s up to your motherboard to provide a full-featured ARGB app to discover the excellence of addressable RGB lighting.

Please refer to your motherboard manual before connecting the individually addressable RGB fans.
