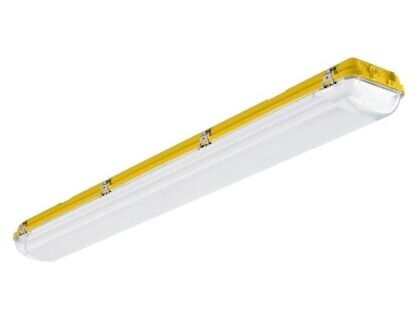

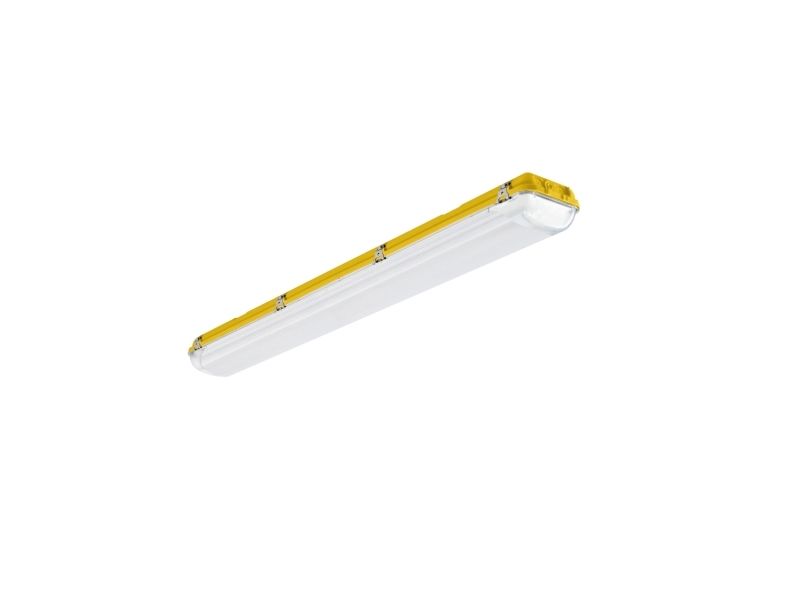

Trilux Acquex, 1 Glühbirne(n), LED, 4000 K, 8000 lm, IP66, Gelb
Artikelnummer: [25552493] | Produzent: Trilux | EAN: 8428879029755
Externen Lager (5-7 Werktage)
Das Produkt befindet sich in einem externen Lager. Die Lieferfrist: ca. 5-7 Werktage.. Mehr Info
Versandoptionen - Wird im Checkout ausgewählt
Versand mit DHL - PaketShop
Kostenloser Versand
Versand mit DHL zur Adresse
Kostenloser Versand
Versand mit GLS - PaketShop
Kostenloser Versand
Versand mit GLS zur Adresse
Kostenloser Versand
Alle Versandoptionen anzeigen (4)
EUR
395,71
ex. MwSt. 332,53
Gesamtbetrag inkl. Versand.
395,71
Die Funktion setzt voraus, dass Sie angemeldet sind. Erstellen Sie einen Nutzer und verwenden Sie unser intelligentes Listensystem, um zukünftige Einkäufe, regelmäßige Einkäufe oder Wunschlisten zu verfolgen.
Jetzt registrieren
Anmelden
Jetzt registrieren
Anmelden
Send på mail
Luminaire type
Explosion-proof weather-proof LED diffuser luminaire.
Applications
For use in areas endangered by explosive atmospheres. ATEX mark II 3D EX TC IIIC T85 DC, -, II 3G EX EC IIC T6 GC, .
Mounting methods
For horizontal or vertical ceiling and wall mounting. Also suitable for suspended mounting by means of accessories to be ordered separately.
Optical system
Luminaire cover made of an injection-moulded, transparent and UV-stabilised PC cover. With smooth surface and internal prismatic cover for ideal light distribution. With symmetric narrow-wide light distribution. The prismatic cover protects the LED system from accidental contact during installation.
LED system
Luminaire luminous flux 8000 lm, connected load 55,00 W, Power Faktor ? > 0,95, luminous efficiency of luminaire 145 lm/W. Light colour neutral white, correlated colour temperature (CCT) 4000 K, general colour rendering index (CRI) Ra > 80. Mean rated service life L80(tq 25 °C) = 70,000 h.
Luminaire body
Luminaire body of compacted, glass-fibre-reinforced polyester. Colour yellow . Dimensions (L x W): 1578 mm x 145 mm, luminaire height 101 mm. Stainless steel tilting lever catch of rust-free and acid-resistant stainless steel (V2A). Sealing made of polyurethane. Safety class (EN 61140): I, protection rating (DIN EN 60529): IP66, impact resistance level in accordance with IEC 62262: IK10, testing temperature of wire glow test in accordance with IEC 60695-2-11: 650 °C. Permissible ambient temperature (ta): -20 °C - +40 °C. Weight: 3,7 kg.
Electrical version
With electronic transformer, switchable. The luminaire is suitable for operation on a 230V direct voltage supply grid (DC). The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol.
Explosion-proof weather-proof LED diffuser luminaire.
Applications
For use in areas endangered by explosive atmospheres. ATEX mark II 3D EX TC IIIC T85 DC, -, II 3G EX EC IIC T6 GC, .
Mounting methods
For horizontal or vertical ceiling and wall mounting. Also suitable for suspended mounting by means of accessories to be ordered separately.
Optical system
Luminaire cover made of an injection-moulded, transparent and UV-stabilised PC cover. With smooth surface and internal prismatic cover for ideal light distribution. With symmetric narrow-wide light distribution. The prismatic cover protects the LED system from accidental contact during installation.
LED system
Luminaire luminous flux 8000 lm, connected load 55,00 W, Power Faktor ? > 0,95, luminous efficiency of luminaire 145 lm/W. Light colour neutral white, correlated colour temperature (CCT) 4000 K, general colour rendering index (CRI) Ra > 80. Mean rated service life L80(tq 25 °C) = 70,000 h.
Luminaire body
Luminaire body of compacted, glass-fibre-reinforced polyester. Colour yellow . Dimensions (L x W): 1578 mm x 145 mm, luminaire height 101 mm. Stainless steel tilting lever catch of rust-free and acid-resistant stainless steel (V2A). Sealing made of polyurethane. Safety class (EN 61140): I, protection rating (DIN EN 60529): IP66, impact resistance level in accordance with IEC 62262: IK10, testing temperature of wire glow test in accordance with IEC 60695-2-11: 650 °C. Permissible ambient temperature (ta): -20 °C - +40 °C. Weight: 3,7 kg.
Electrical version
With electronic transformer, switchable. The luminaire is suitable for operation on a 230V direct voltage supply grid (DC). The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol.
