Trilux E-Line, LED, 4000 K, 6300 lm, IP20, Weiß

Luminaire type

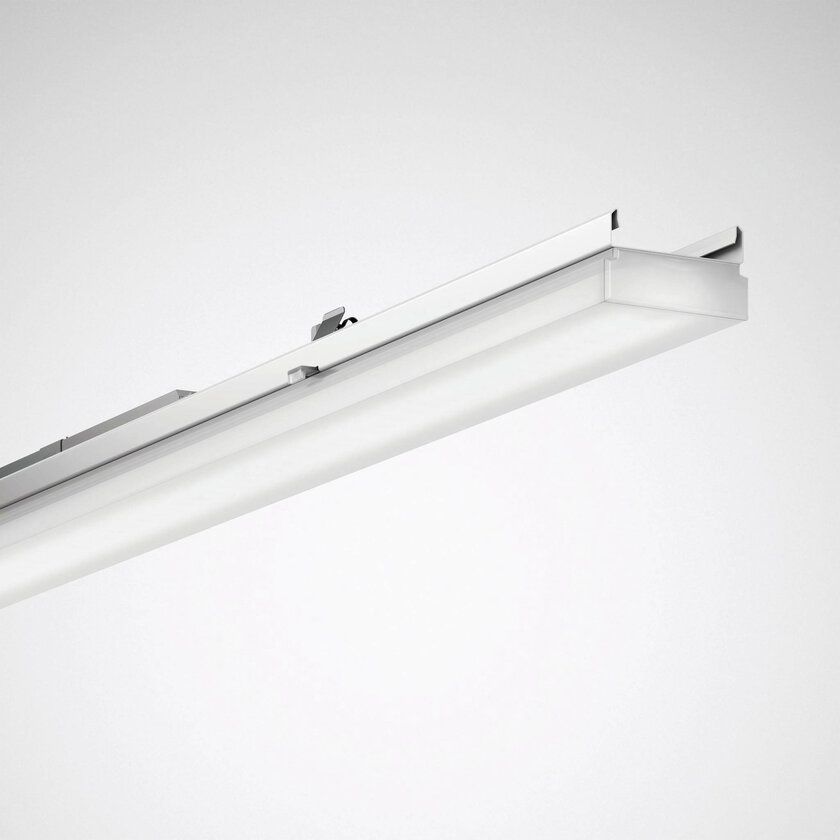

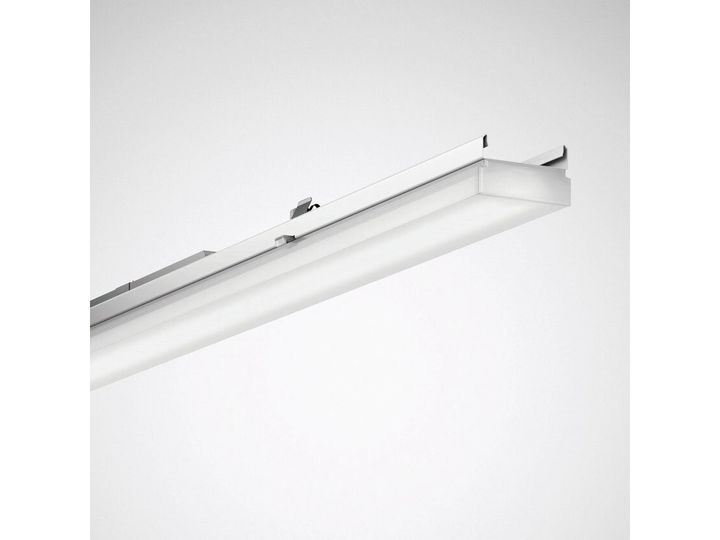

LED gear tray for continuous line system E-Line 7651. Version for use in applications with high requirements for temperature resistance, luminaire efficiency and service life of the continuous line. Gear tray in combination with accessory 07650...IP64 (trunking, cover, end cap) suitable for applications requiring higher protection ratings (IP64) as well as for use in locations exposed to fire hazards according to DIN EN 60598-2-24 (D identification)..

Mounting methods
For combining with E-Line 07650... trunking. Compatible with E-Line T5N/LED 07650... support profiles. Mounting to trunking with tool-free stainless steel snap fasteners. With mechanical misassembly protection. Correct mounting of the gear tray with the trunking is confirmed by a snap-in noise. The transparent mounting elements made of UV-stabilised PC can be removed after successful installation, thus ensuring theft and disassembly protection.

Optical system
The optical system consists of a PMMA lens optic with three matched, photometrically effective sections and thus ensures uniform light distribution and homogeneous illumination. With symmetric very narrow light distribution. Beam spread C0: 30°, Beam spread C90: 68°, Main beam angle: 0°. Recommended installation height: 8 - 12 m. The flat surface makes cleaning the luminaire easier. Particularly suitable for wide-area illumination. The light distribution characteristic of the gear tray is determined by the lens concept and requires no further components. Due to the design, the harmonious appearance of the lighting system is also guaranteed when various optical systems are combined within a continuous line system.

LED system
Luminaire luminous flux and light color fixed. The luminaire luminous flux of the gear tray is electronically parameterised in the production process according to customer requirements. With three LED modules (3 x 96 LED). Light generation is free of infrared (IR) and ultraviolet (UV) components. Luminaire luminous flux 6000 lm, connected load 31 W, Power Faktor λ > 0,95, maximum luminous efficiency of luminaire 194 lm/W. Light colour warm white, correlated colour temperature (CCT) 3000 K, general colour rendering index (CRI) Ra > 80. Colour locus tolerance (initial MacAdam) ≤ 3 SDCM. Mean rated service life L80 (tq 50 °C) = 70,000 h., Mean rated service life L90 (tq 50 °C) = 50,000 h. The light source is replaceable according to the ecodesign requirements (VO (EU) 2019/2020). Flicker: Pst LM ≤ 1.0 at full load. Stroboscopic effect: SVM ≤ 0.4 at full load.

Luminaire body
Gear tray of sheet steel. Surface coated white (similar to RAL 9016). Length of the gear tray: 2211 mm. Permissible ambient temperature (ta): -25 °C to 50 °C. Weight: 2,4 kg.

Electrical connection
Self-actuating electrical connection via plug contacts with phase selection. Phase selection is without use of tools.

Electrical version
With electronic transformer, switchable. The control gear unit is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). The luminaire is monitoring-ready (MOR), supplies luminaire data for monitoring or for predictive maintenance and is therefore compatible to the TRILUX Monitoring Services. The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol. The luminaire is also ENEC-certified by an independent testing authority.

With Trilux after-sales promise: the luminaire is available for 10 years and spare parts (LED module, control gear unit and optical system) are available for 15 years from date of invoice. The right to make reasonable modifications in the interests of progress is reserved.

A special online tool is available for the simple and fast planning and configuration process of the application.
Disassembly instructions (PDF) for the product available at: https://www.trilux.com/EcoDesign
