Lindy 32683, 3840 x 2160 Pixel, 18 Gbit/Sek., Sortierung, Metall, HDMI, 1.4/2.2

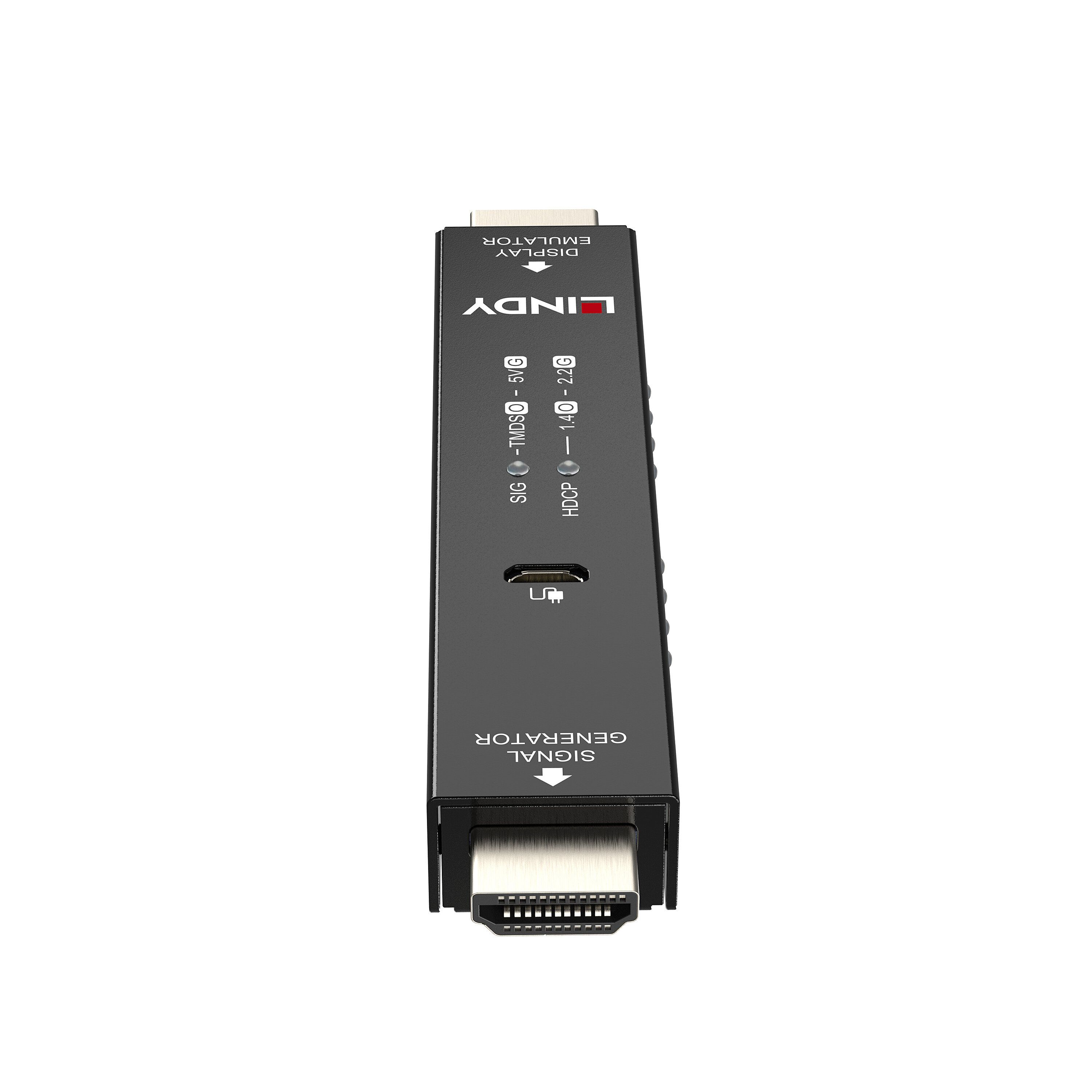

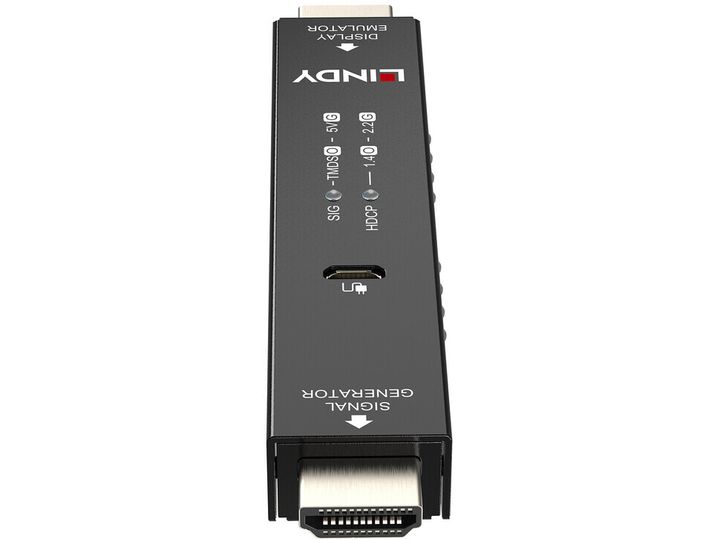

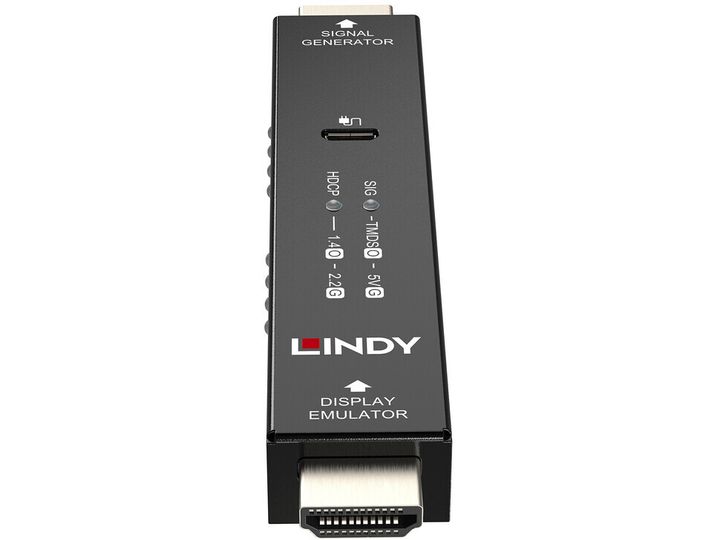

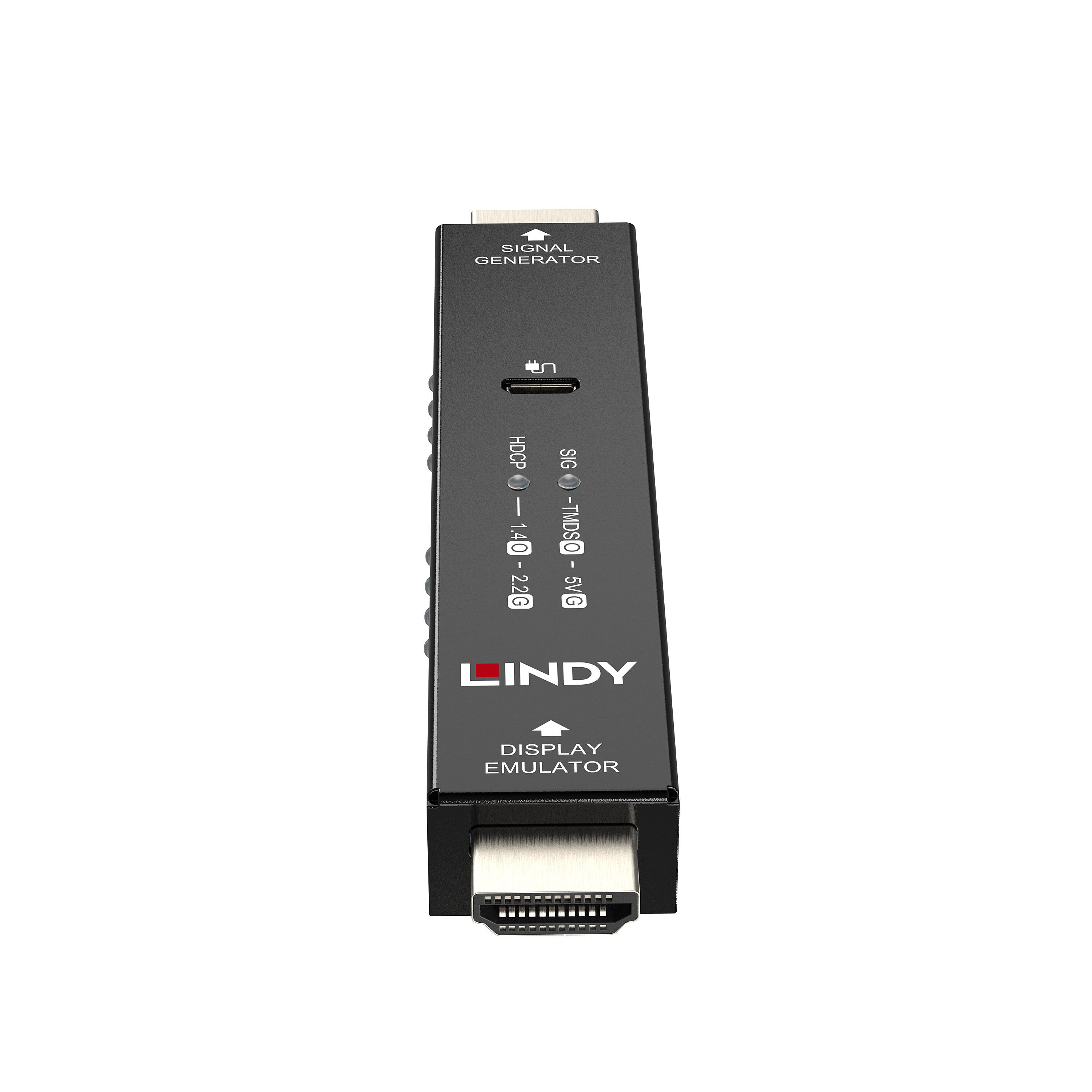

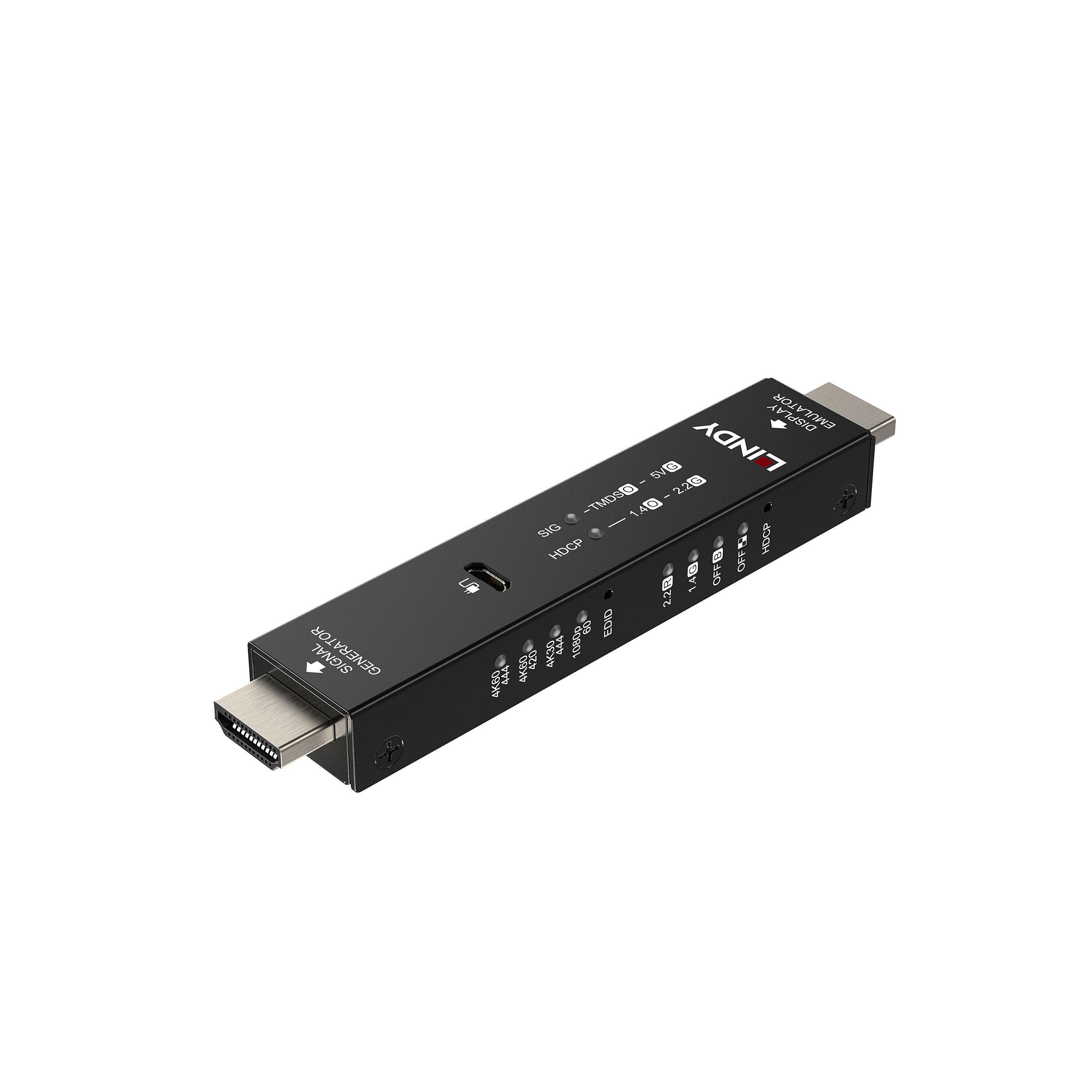

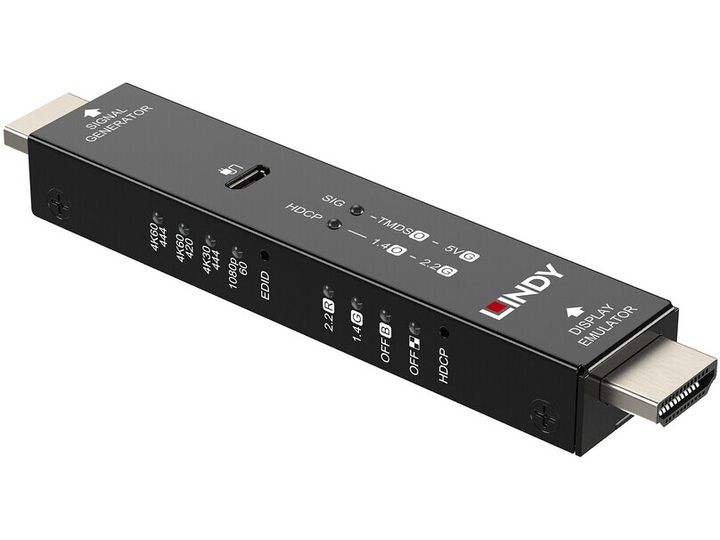

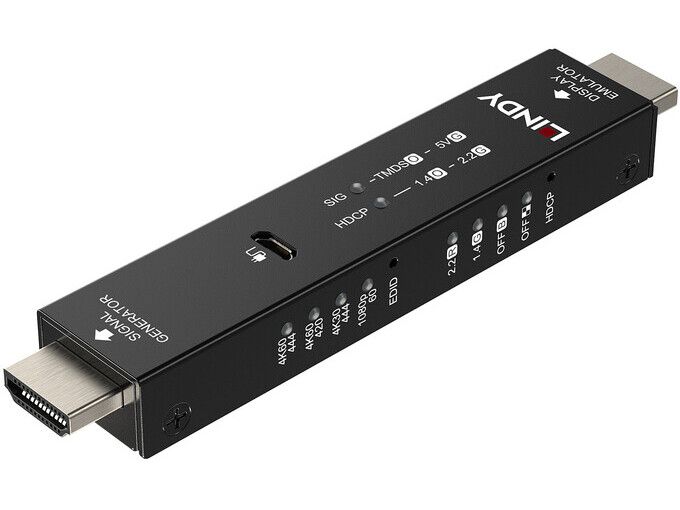

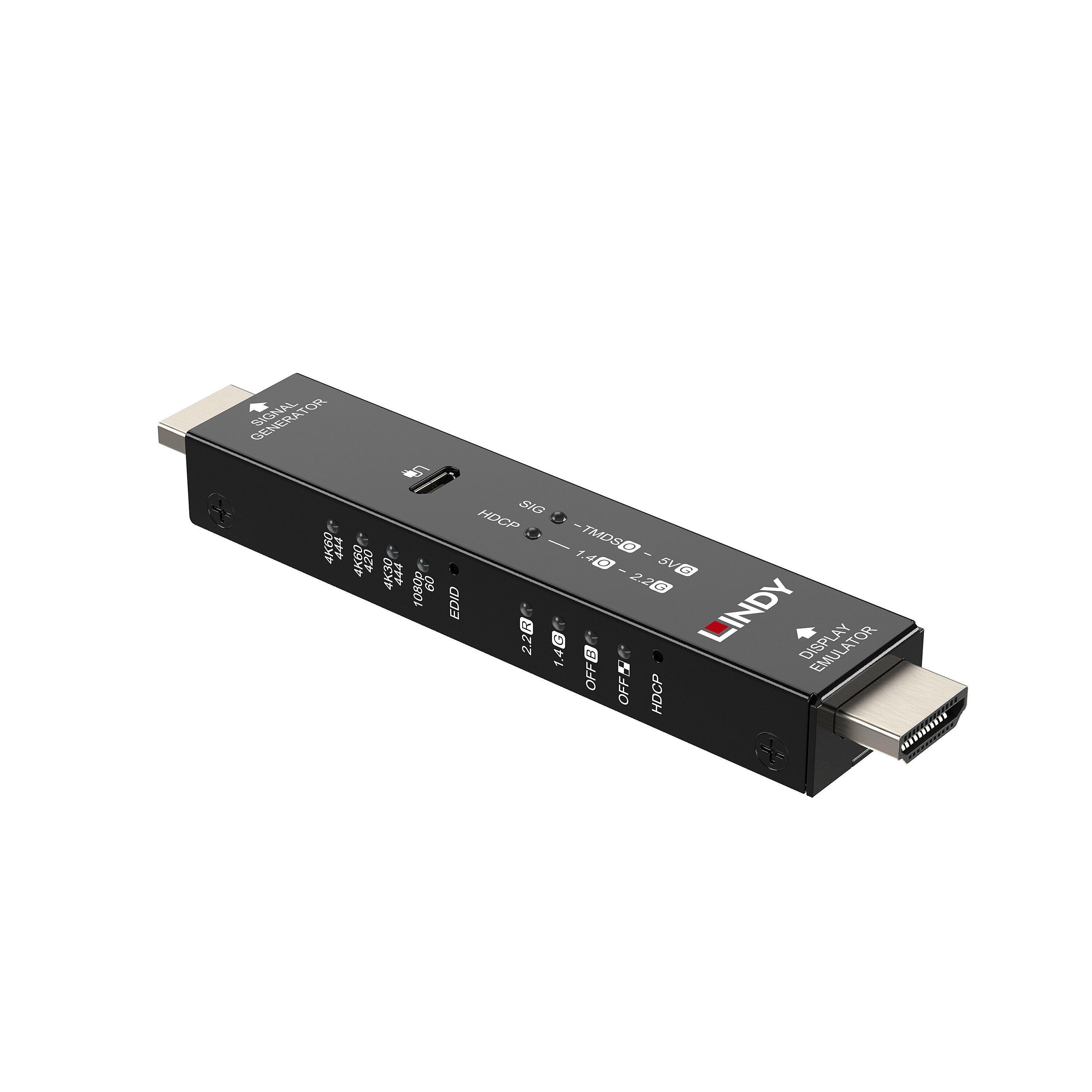

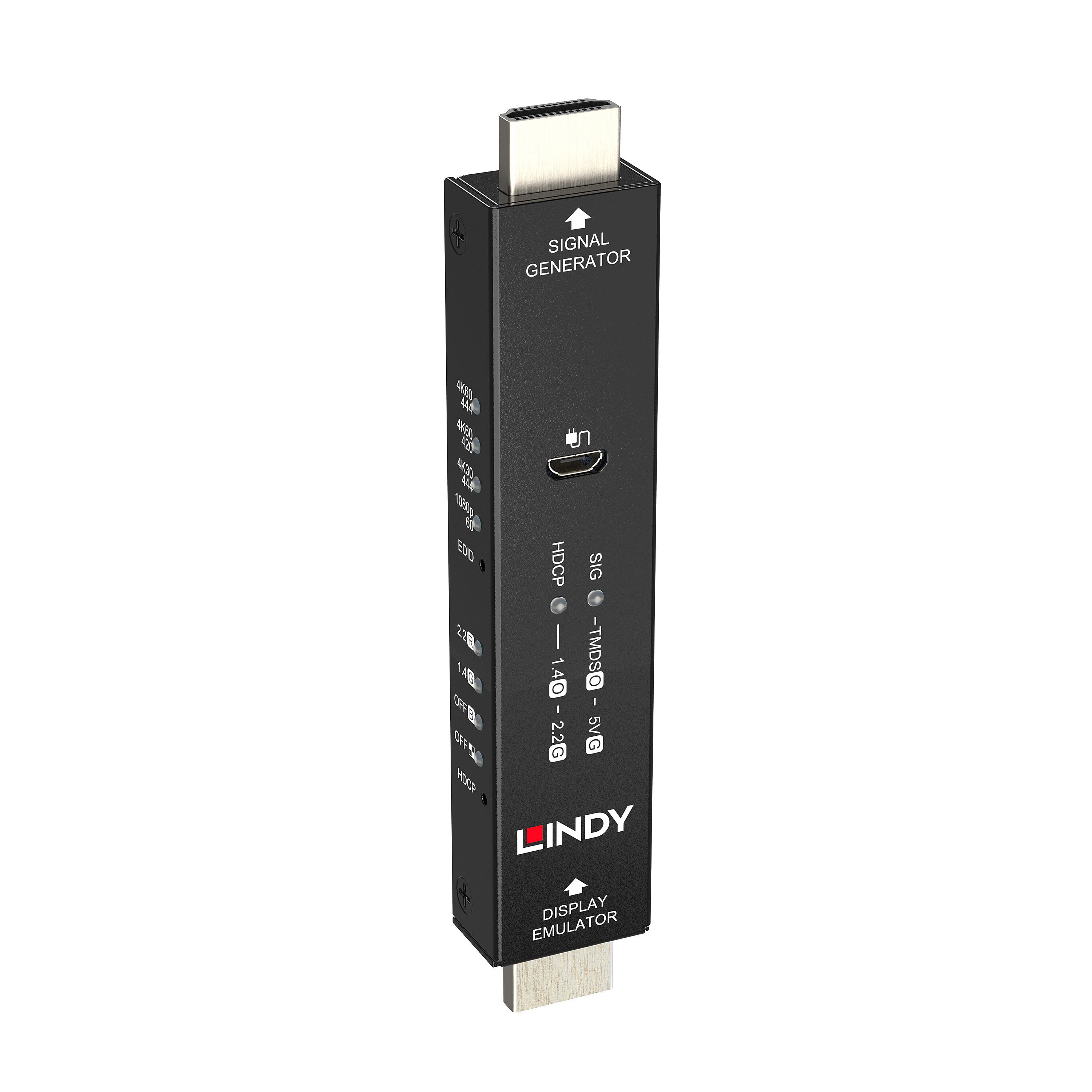

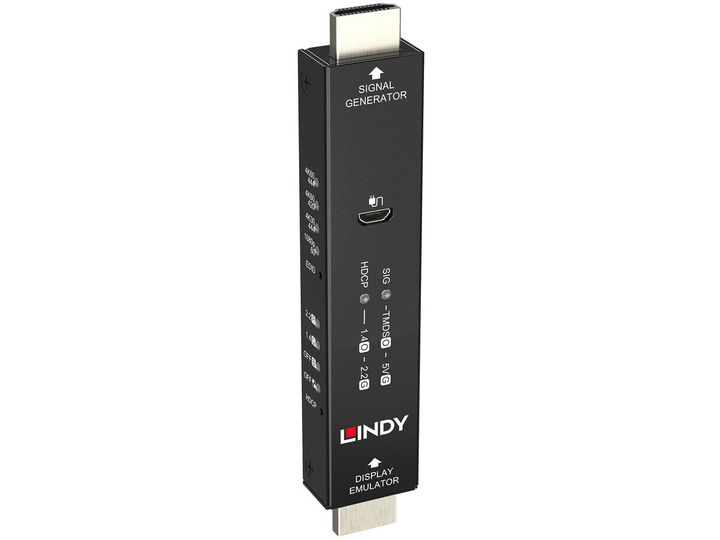

The Lindy HDMI® 18G Signal Generator & Display Emulator is an essential tool for AV installers and system integrators, to test and emulate HDMI® signals. This portable device provides 4 EDID HDMI® resolutions: 4K@60Hz 4:4:4, 4K@60Hz 4:2:0, 4K@30Hz 4:4:4, or 1080p@60Hz. The selection can be done by pushing the EDID button on one side of the unit.

Connecting as display emulator, the unit can detect the HDCP content and signal status (5V, TMDS); 4 different patterns show HDCP status while LEDs help the user selecting the desired choice.
No software or additional cables is needed, it can be connected directly to a source or display via HDMI® male connectors.

The unit is felf-powered from the HDMI® source when used as display emulator, while an external USB power supply is required when it's connected as signal generator.

With a extremely compact and portable design, this device can be easily added to any AV installers testing kit, perfect for on-the-go installers in both small home setups or larger scale professional installations.
