DJI Power 1000 Mini, AC, Gleichstrom, Solar, Zigarettenanzünder, 1008 Wh, 1000 W, 12 W, 100 W, Wi-Fi 4 (802.11n)

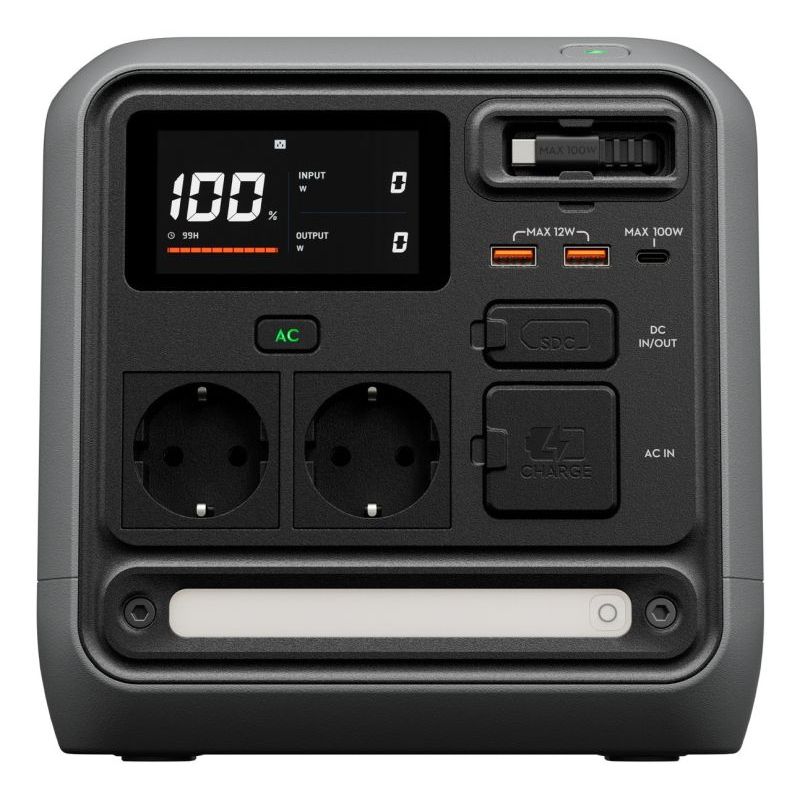

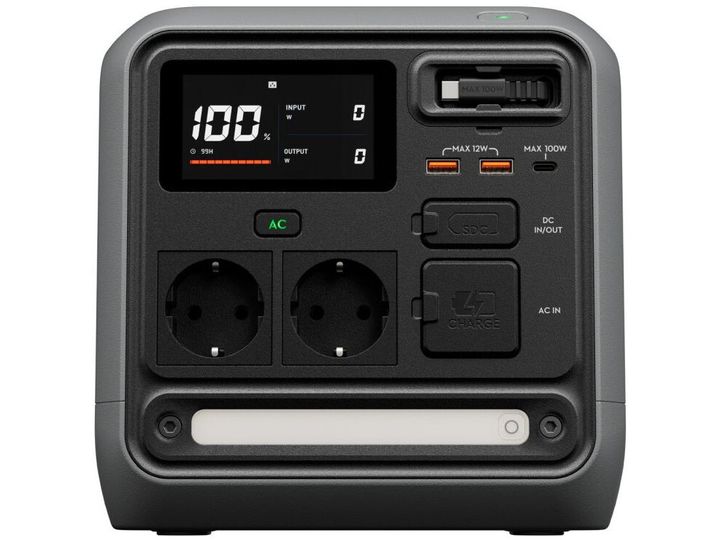

DJI Power 1000 Mini

DJI Power 1000 Mini ist die bisher tragbarste 1kWh Powerstation von DJI. Mit integriertem 400W Autoladegerät [2] und 400W MPPT-Modul [3] ist sie für Camping, Roadtrips und Content Creation konzipiert. Kompakt für unterwegs, leistungsstark bei jeder Ladung.

Modell

DYM1000M

Batterie

Zellchemie: LFP (Lithium-Eisenphosphat)

Energie: 1008 Wh (typisch)

Lebensdauer: Behält nach 4000 Zyklen über 80% Kapazität.

Ein Zyklus ist als vollständige Ladung und Entladung definiert. Getestet in einer Laborumgebung bei 25° C (77° F), wobei die DJI Power 1000 Mini im Standard Mode geladen und mit 400W Ausgangsleistung an externe Geräte entladen wurde.

Design und Gewicht

Nettogewicht: Ca. 11.5 kg

Abmessungen: 314 × 212 × 216 mm (L × B × H)

Maximale Betriebshöhe: 5000 m

Anzahl der Anschlüsse

AC-Ausgangsanschluss × 2 (für Regionen mit CN-, EU-, AU- und UK-Standards)*

AC-Ausgangsanschluss × 4 (für Regionen mit US- und JP-Standards)*

USB-C × 1

USB-C einziehbares Kabel × 1

USB-A × 2

SDC × 1

AC-Eingang × 1

* Modelle für Regionen mit US- und JP-Standards verfügen über vier AC-Ausgangsanschlüsse. Aufgrund unterschiedlicher Anschlussgrößen verfügen Modelle für andere Regionen nur über zwei.

Ausgangsspezifikationen

AC-Ausgang

Niederspannung:

AC 100-120 V, 50/60 Hz, max. Strom: 10 A, max. 1000 W (kontinuierlich bei 800 W)

AC 100-120 V, max. Strom: 14.4 A, max. 1440 W (Bypass mode)

Hochspannung:

AC 220-240 V, 50/60 Hz, max. Strom: 4.5 A, max. 1000 W (kontinuierlich bei 800 W)

AC 220-240 V, max. Strom: 10 A, max. 2200 W (Bypass mode)

Die AC-Ausgangsdaten variieren je nach Land und Region.

USB-A-Ausgang

5 V, 2.4 A

Maximale Ausgangsleistung pro Kanal: 12 W

USB-C-Ausgang

5 V, 5 A

9 V, 5 A

12 V, 5 A

15 V, 5 A

20 V, 5 A

Maximale Ausgangsleistung pro Kanal: 100 W*

* Der USB-C-Anschluss unterstützt eine maximale Ausgangsleistung von 100 W. Wenn Geräte gleichzeitig über das einziehbare Kabel und den USB-C-Anschluss geladen werden, beträgt die Gesamtausgangsleistung 150 W, wobei das einziehbare Kabel bis zu 100 W und der USB-C-Anschluss bis zu 50 W liefert.

SDC-Ausgang

SDC: 9-28 V, max. 300 W

Eingangsspezifikationen

AC-Eingang

Niederspannung:

AC 100-120 V, 50/60 Hz, max. Strom: 10 A, max. 1000 W (kontinuierlich bei 800 W)

AC 100-120 V, max. Strom: 14.4 A, max. 1440 W (Bypass mode)

Hochspannung:

AC 220-240 V, 50/60 Hz, max. Strom: 4.5 A, max. 1000 W (kontinuierlich bei 800 W)

AC 220-240 V, max. Strom: 10 A, max. 2200 W (Bypass mode)

Die AC-Eingangsdaten variieren je nach Land und Region.

USB-C-Eingang

Maximale Ladeleistung: 100 W

SDC-Eingang

SDC: 9-28 V, max. 400 W

Temperatur

Stromversorgungstemperatur: -10° bis 45° C (14° bis 113° F)

Ladetemperatur: -10° bis 45° C (14° bis 113° F)

Lagertemperatur: -10° bis 45° C (14° bis 113° F)

Wi-Fi und Bluetooth

Betriebsfrequenz und Sendeleistung (EIRP)

Wi-Fi (802.11 b/g/n):

2.4000-2.4835 GHz: < 20 dBm (CE/SRRC/MIC)

Bluetooth 5.0:

2.4000-2.4835 GHz: < 7 dBm

DJI Power 1000 Mini is DJI's most portable 1kWh power station to date. Featuring a built-in 400W car charger and 400W MPPT module, it is designed for camping, road trips, and content creation. Compact for the journey, powerful with every charge.

Compact Size, Massive Power
At just half the size of DJI Power 1000, DJI Power 1000 Mini packs the 1kWh capacity for burden-free portability. As your family's mobile energy hub for road trips, camping, or emergencies, it delivers easier, reliable power anytime.

High Efficiency for Longer Runtime
With a 1000W max output, DJI Power 1000 Mini can power select 1200W appliances. Optimized for low-power efficiency, it maximizes every bit of energy for essentials from camping gear to home appliances, ensuring longer-lasting power when it matters most.

Multiple Fast Recharging Options
DJI Power 1000 Mini supports grid, solar, and car recharging. Whether indoors, outdoors, or on the road, enjoy flexible recharging for a free and convenient power experience.

Pull, Charge, Go
The built-in 100W retractable USB-C cable extends instantly and retracts automatically. It stays tangle-free, freeing you from carrying extra cords. Just pull and plug to fast-charge phones, tablets, and laptops at 100W. Plus, the replaceable design ensures long-lasting durability and peace of mind.

Innovative Retractable Design
Pull to extend, release to retract. No tangles, just neat storage.

0.8m Flexible Extension
A long retractable cable adapts to more scenarios for effortless fast charging.

Replaceable Module
Easy maintenance. Damaged cables can be quickly replaced, ensuring uninterrupted operation and reliable power over time.

All-Day Companion, Always There
Quiet operation, adjustable LED lighting, and UPS backup come together to deliver dependable power throughout the day, keeping you powered and prepared anytime, anywhere.

Dimmable Built-in LED
Press once for on/off, double-press for SOS. Press and hold to adjust brightness, then release to set. From soft glow to bright light, it is suitable for camping, nighttime use, ambiance, or emergencies.

Quiet Operation
In Standard Recharge Mode, DJI Power 1000 Mini produces sound no higher than 30 dB. Whether camping at night or charging in your bedroom, enjoy undisturbed silence without the noise.

UPS Mode: Seamless Power Backup
When an electrical device is connected to a powered-on DJI Power 1000 Mini via an AC output port and both are receiving grid power, Power 1000 Mini defaults to UPS (Uninterruptible Power Supply) mode. If a blackout occurs, DJI Power 1000 Mini can start powering the connected device within 0.01 seconds, ensuring continuous operation and providing you with peace of mind.

Complete Safety Design
From body structure and cell hardware to system software, DJI Power 1000 Mini features a complete safety design, providing all-around protection for your power use.

DJI Ecosystem Expansion
Unlock more possibilities with the expanded DJI Power 1000 Mini ecosystem. SDC ports enable flexible accessory connections, while the built-in 400W car charger and 400W MPPT module support efficient car and solar recharging with no extra adapters. Less gear, more freedom outdoors.

Camping
Compact yet powerful, DJI Power 1000 Mini meets diverse camping power needs. When paired with the DJI Power MC4 Solar Power Charging Cable and the IBCPOWER 100W Foldable Solar Panel , it supports pass-through charging, extending power for worry-free camping.

Road Trips
Lightweight and portable, DJI Power 1000 Mini fits easily into your travels. The built-in 400W car charger allows direct connection to a car battery for a quick recharge without extra adapters. The built-in 100W retractable USB-C cable extends instantly to power phones, gaming consoles, and more, keeping you charged throughout the journey.

Emergency Energy Hub
DJI Power 1000 Mini offers an energy solution for crisis and emergency response. With 1008Wh of capacity, it can simultaneously charge phones, radios, and emergency lighting. Its ultra-fast 0.01s UPS functionality guarantees that communication links remain active during power fluctuations or sudden blackouts.

Desktop Power Station
DJI Power 1000 Mini features a built-in 100W retractable USB-C cable for neat storage. Plug in phones, tablets, or laptops for instant charging. It supports multiple devices simultaneously and can even provide emergency power to high-power devices like desktops, ensuring uninterrupted workflow.

Fast Charging for DJI Drones
Use the DJI Power Fast Charge Cable for Drones to enable DJI Power SDC fast charging function for select DJI drone batteries . The Air 3 Series battery charges from 10% to 95% in just 30 minutes , ready for takeoff in half an hour. With three drone batteries and DJI Power 1000 Mini, you can enjoy all-day flights with efficient aerial shooting.

Smart App Control
Connect directly to the DJI Home app. Its clean interface lets you remotely control port power, adjust parameters, and check real-time status like temperature. Power management at your fingertips, simple and hassle-free.
