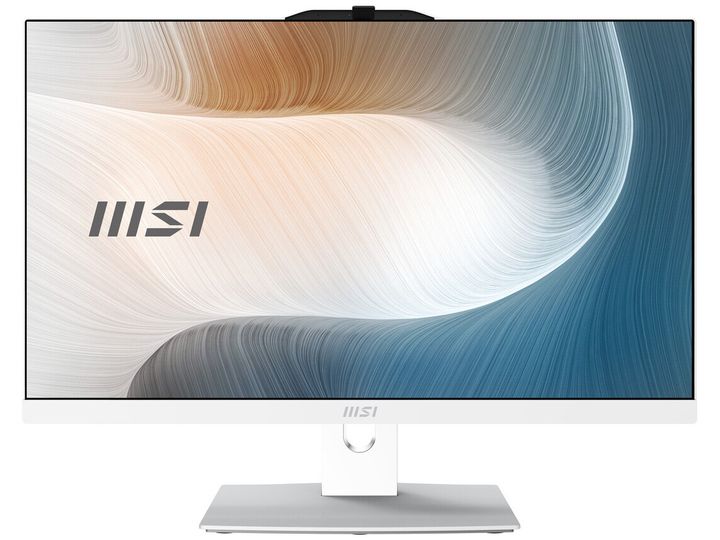

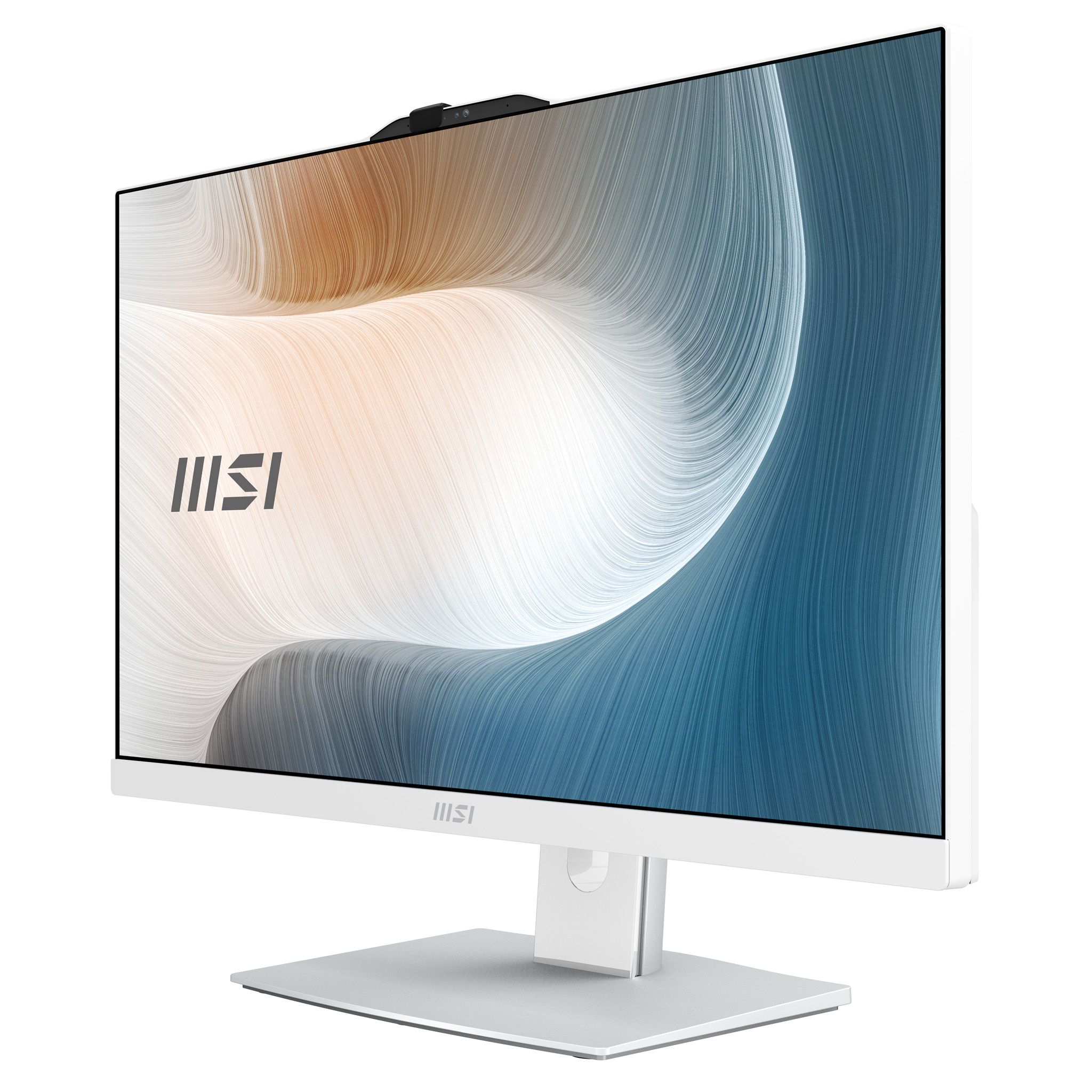

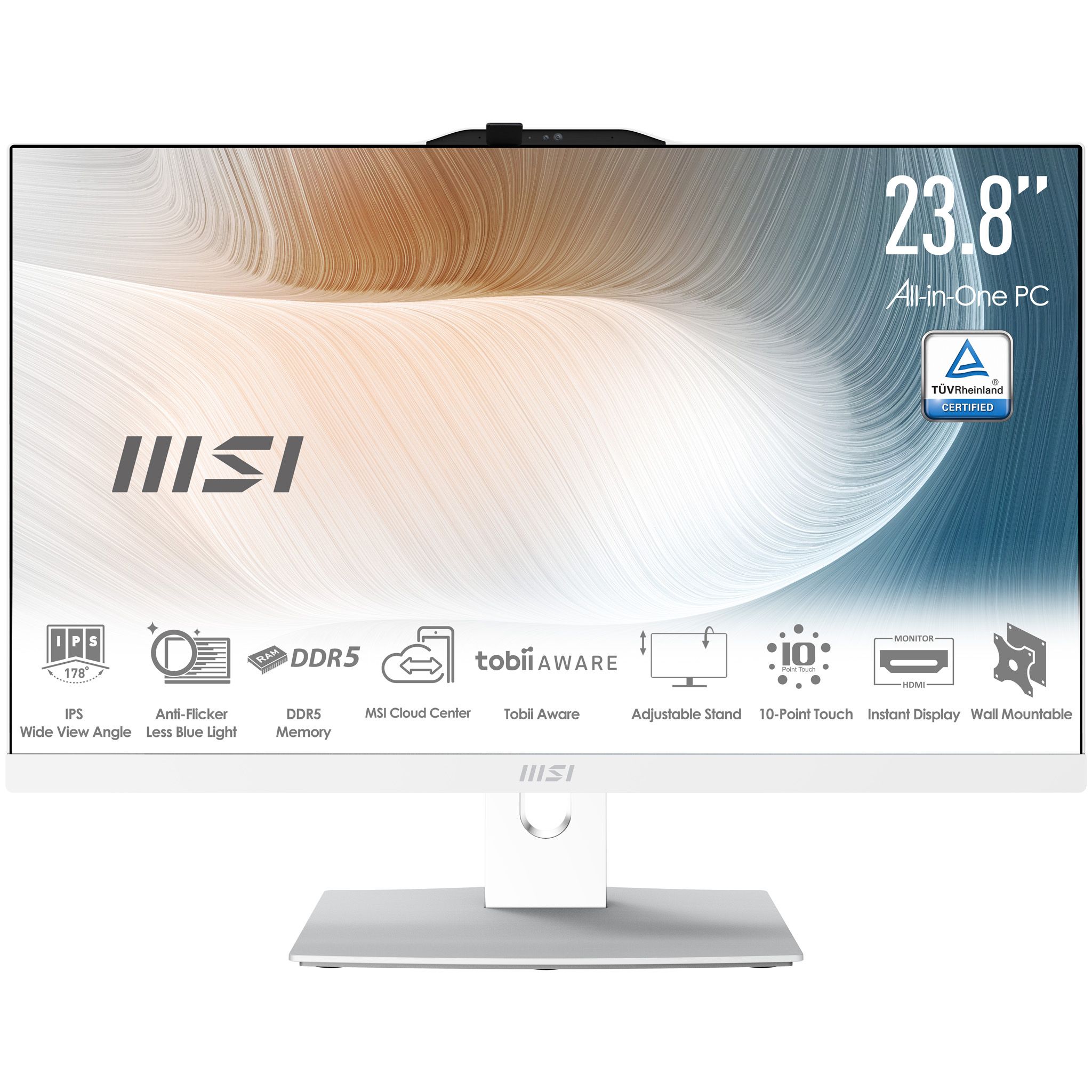

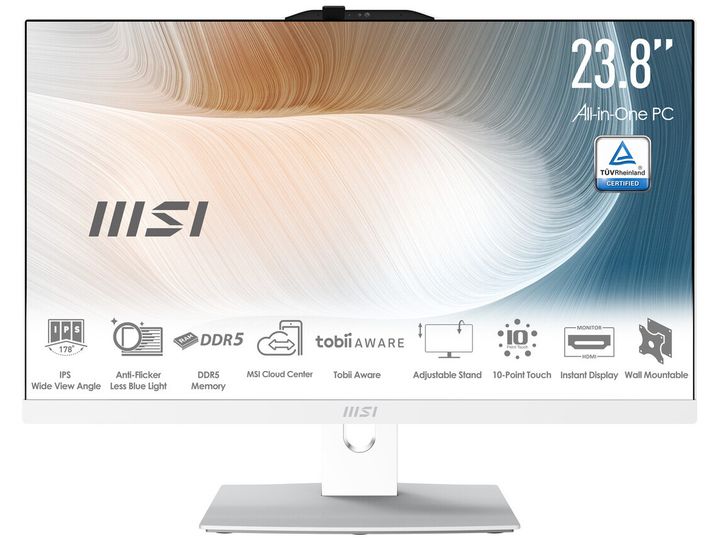

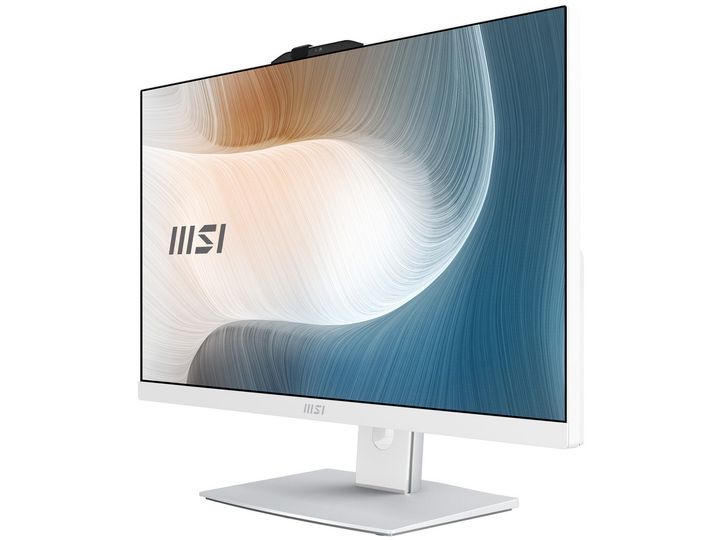

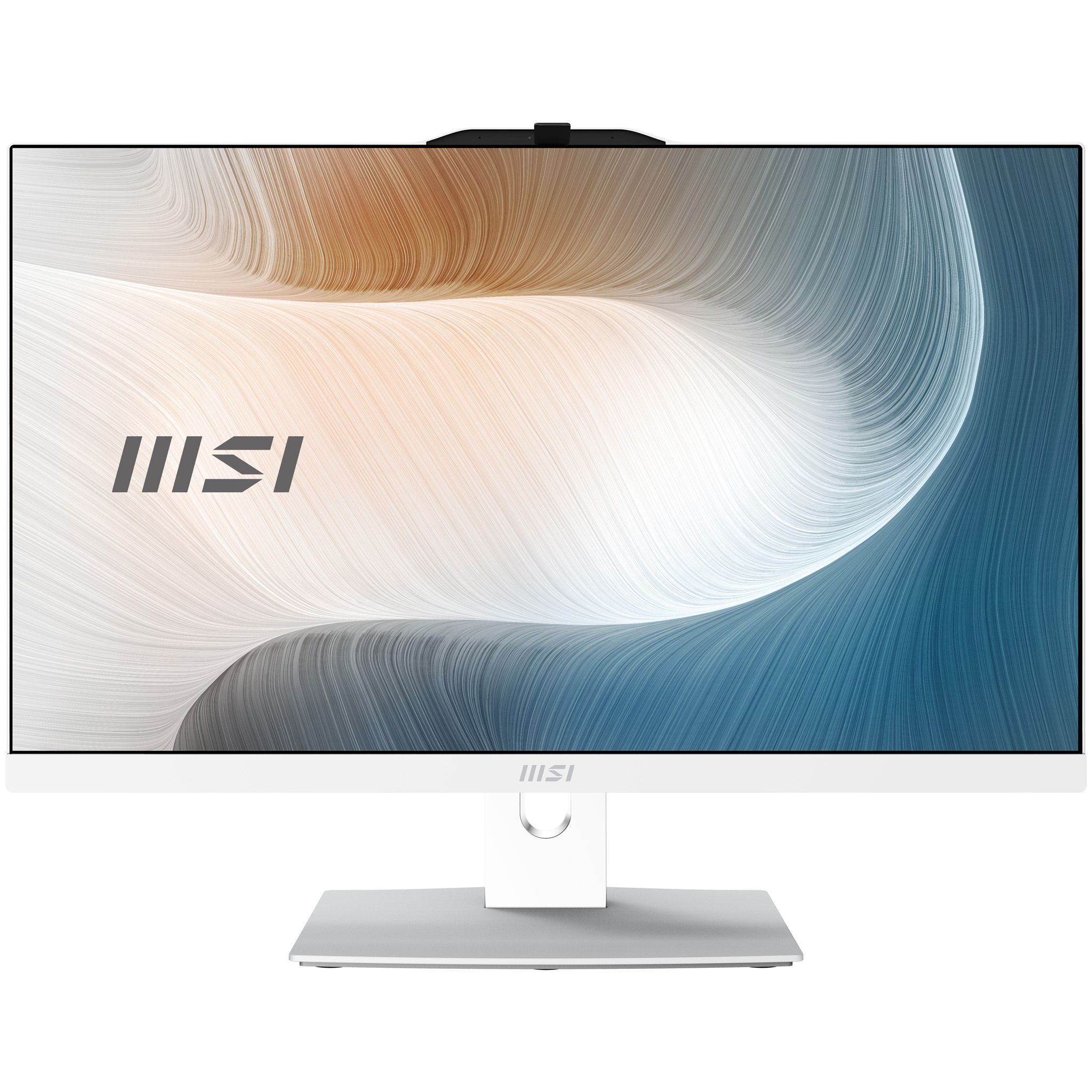

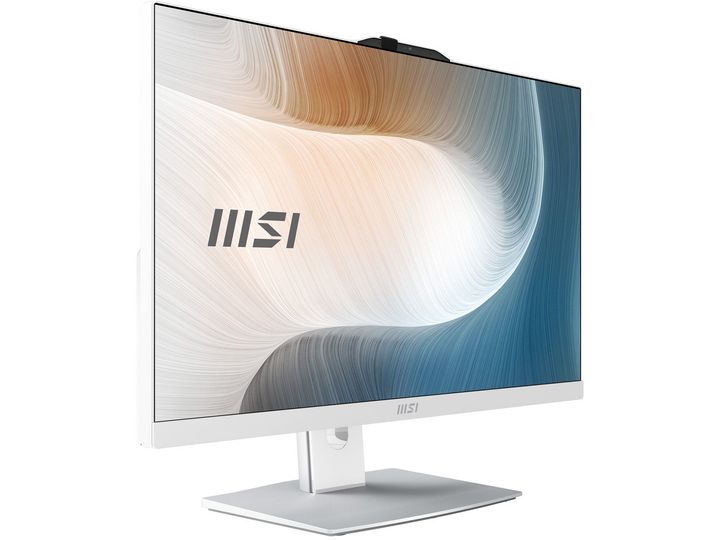

Connect To The World Safely With a Webcam Cover No matter you’re learning, working or cooking at home, you can connect to the world with a built-in webcam which brings you the best video chatting quality and you can cover the webcam anytime to prevent any concern you have.
When a sound is heard, it automatically recognizes and separates vocal sound from background noises; hence, filtering out all the unwanted Noise.
Anti-Flicker With Eye-Care Technology Thanks to MSI’s Anti-Flicker technology, it eliminates flickering and effectively reduces eye fatigue caused by prolonged screen time while enhancing the productivity at home or in the office.
See More, Do More At Home Thanks to MSI’s Instant Display Technology, Modern AM242 series can also be used as a monitor without booting up its system. When devices are connected to the HDMI-in port, the screen will be turned on immediately.

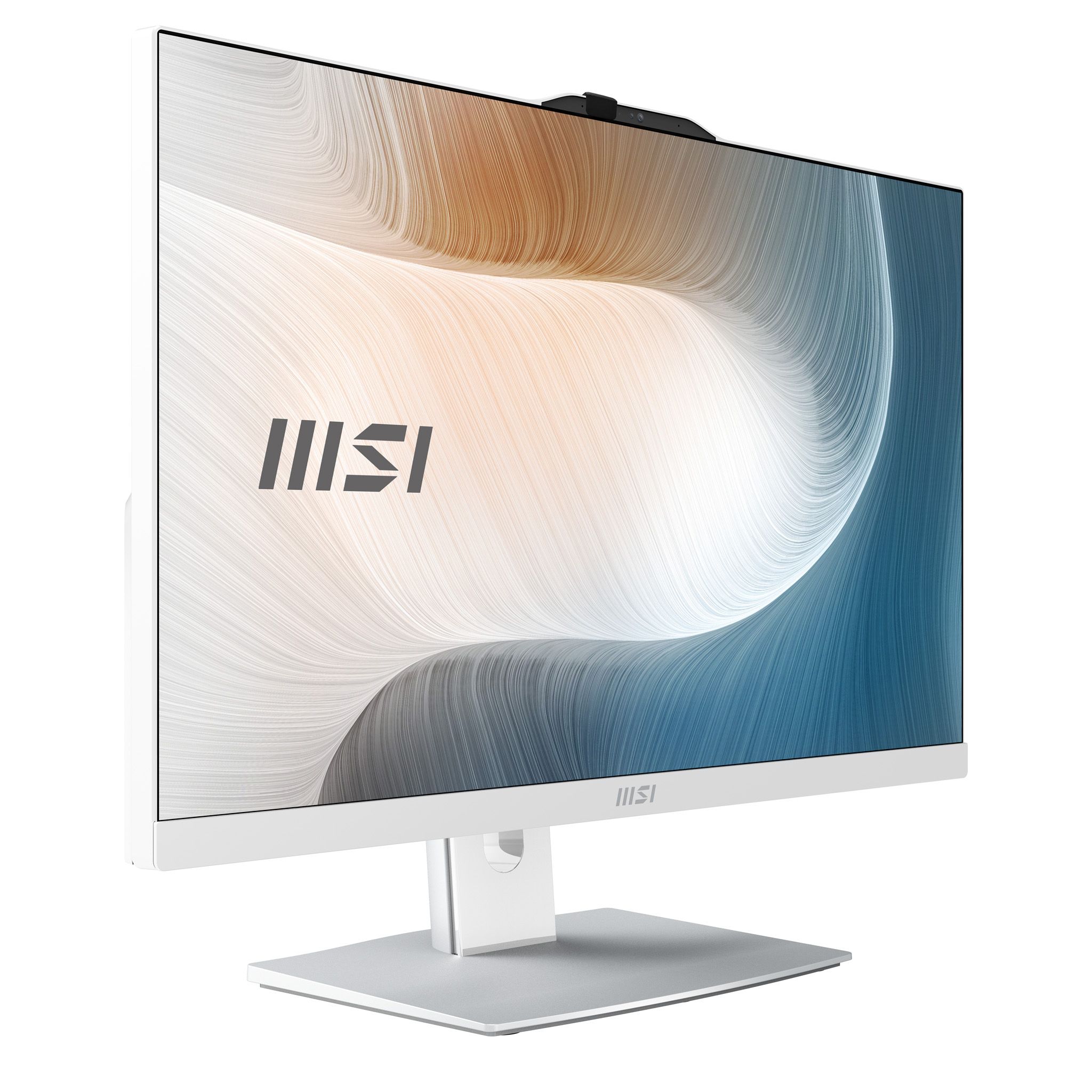

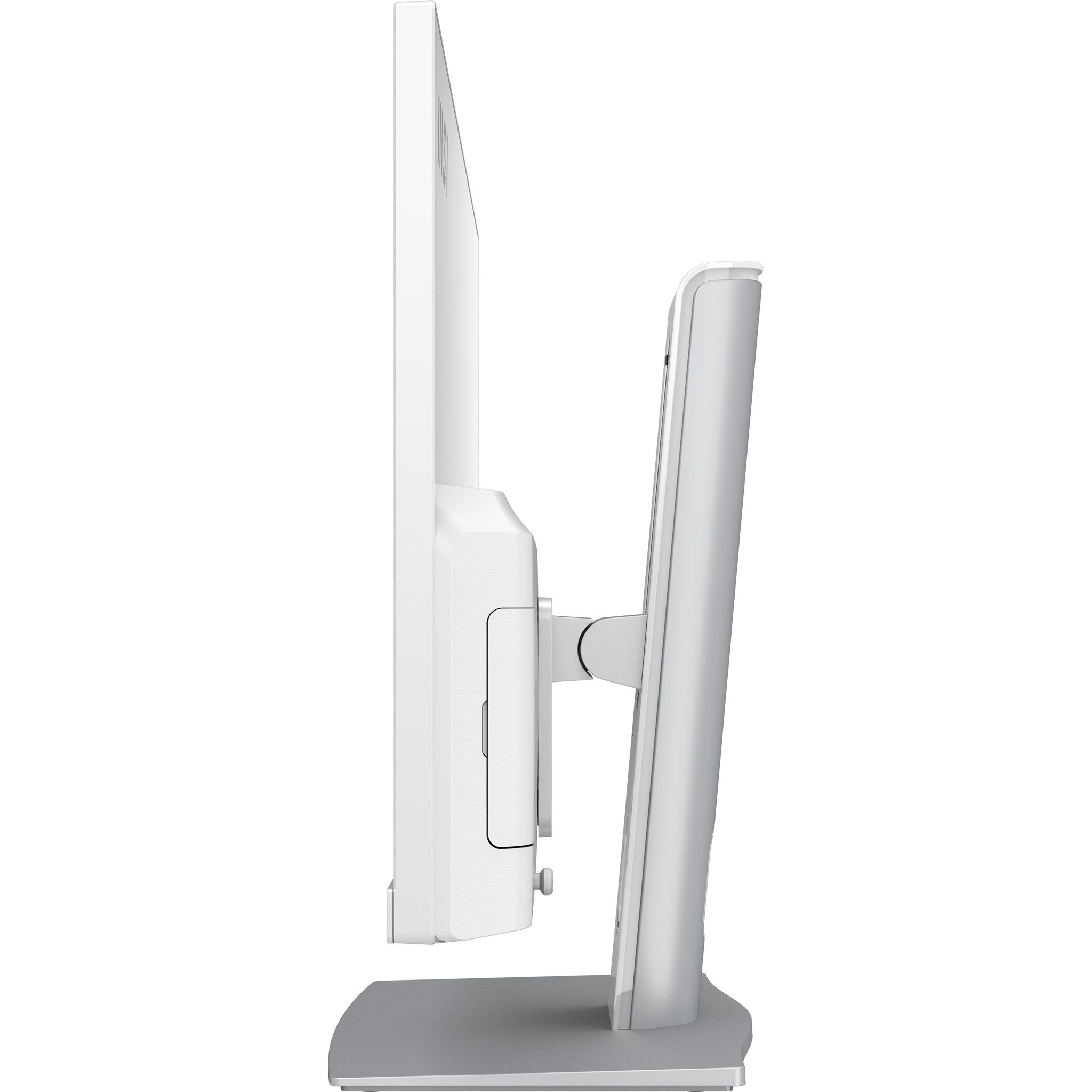

The Best Position While Working & Learning At Home You are able to learn or manage your E-commerce with a comfortable viewing position and can always adjust the tilt & height according to different situations.

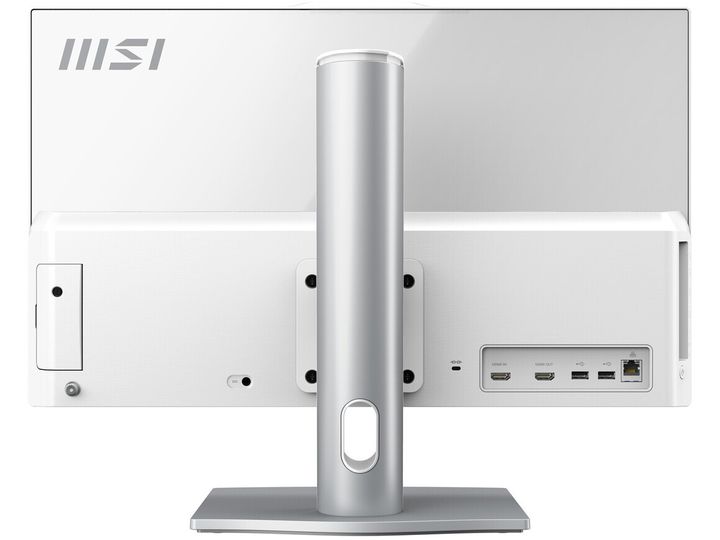

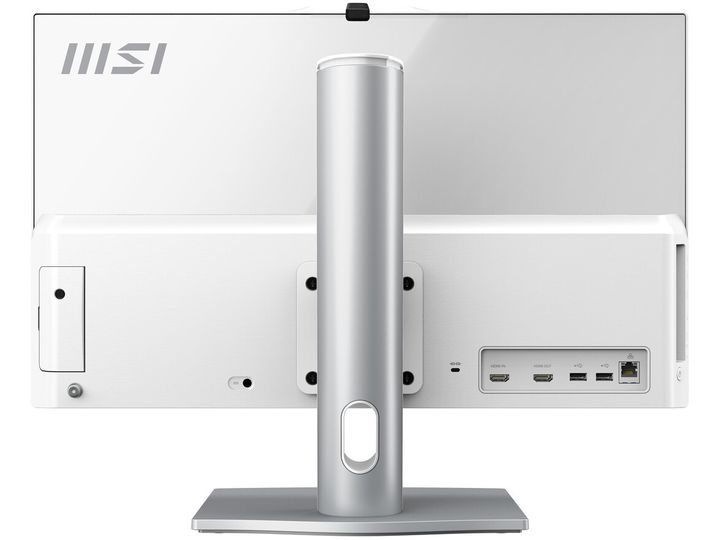

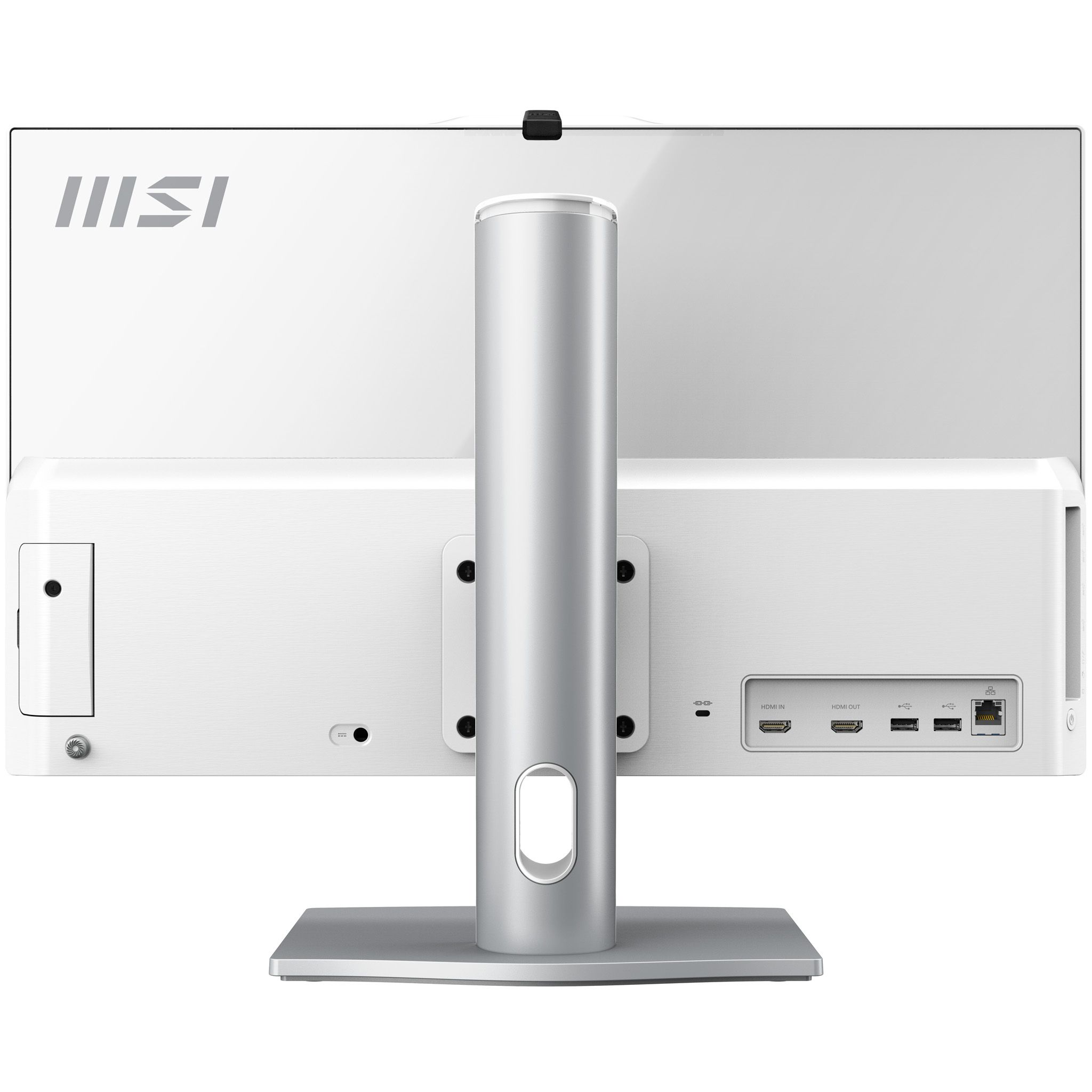

Mount With MSI VESA Arm Enjoy a clean cable management with the MSI MT81 which supports the VESA standards, you can share any information or e-learning material with family at home or in the office.

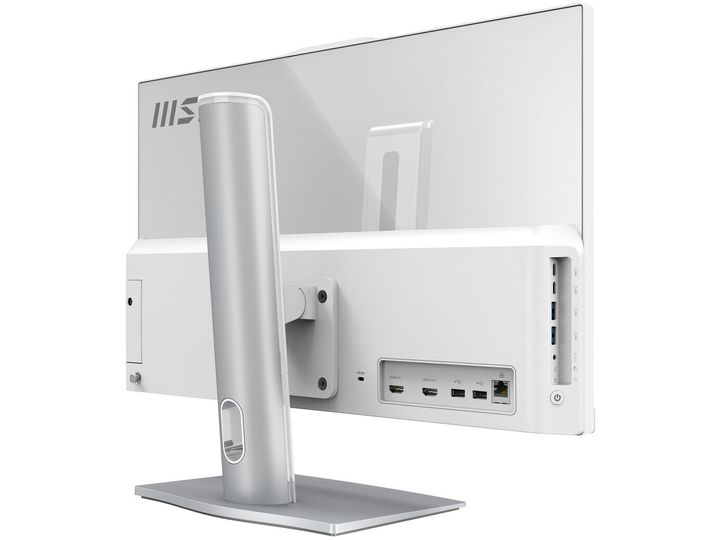

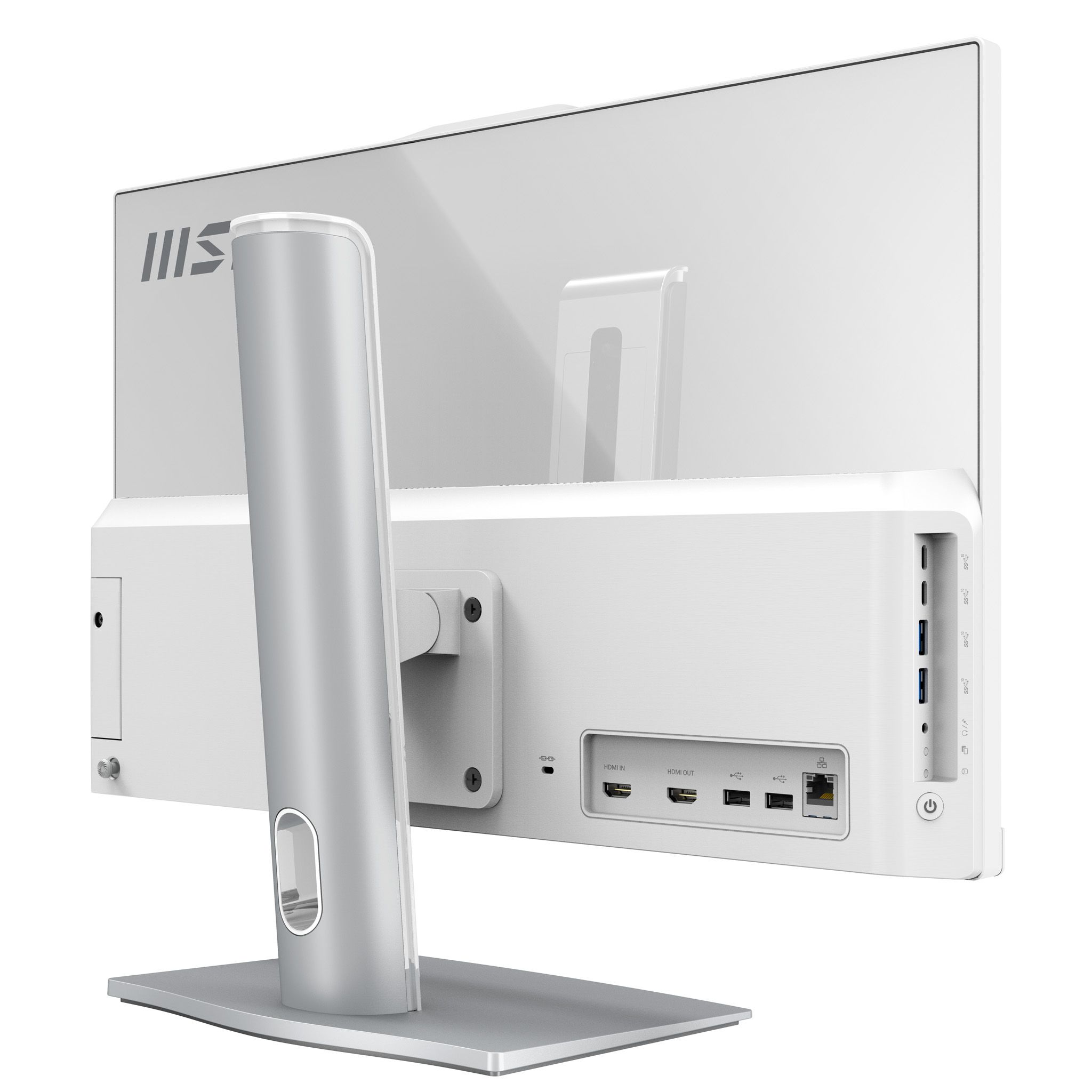

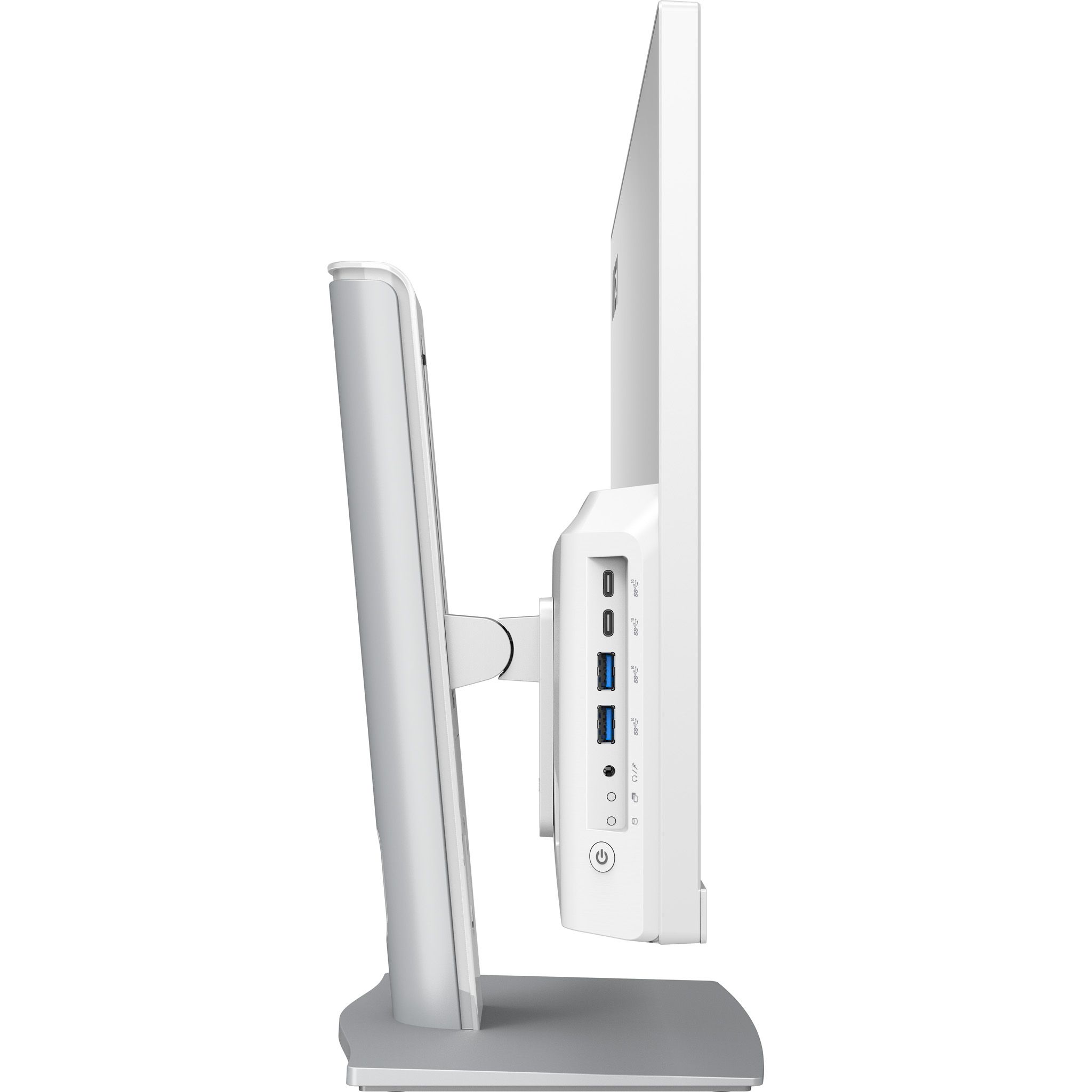

Reversible Type-C With USB 3.2 Gen 2 When backup your projects at home you can get all the performance benefits from USB 3.2 Gen2, combined with the convenience of the USB Type-C connector.
The reversible USB Type C also allows for effortless connecting of USB devices.
5-Way Navigator OSD Control The World’s First All-in-One PC with 5-Way Navigator for an easy OSD Control.

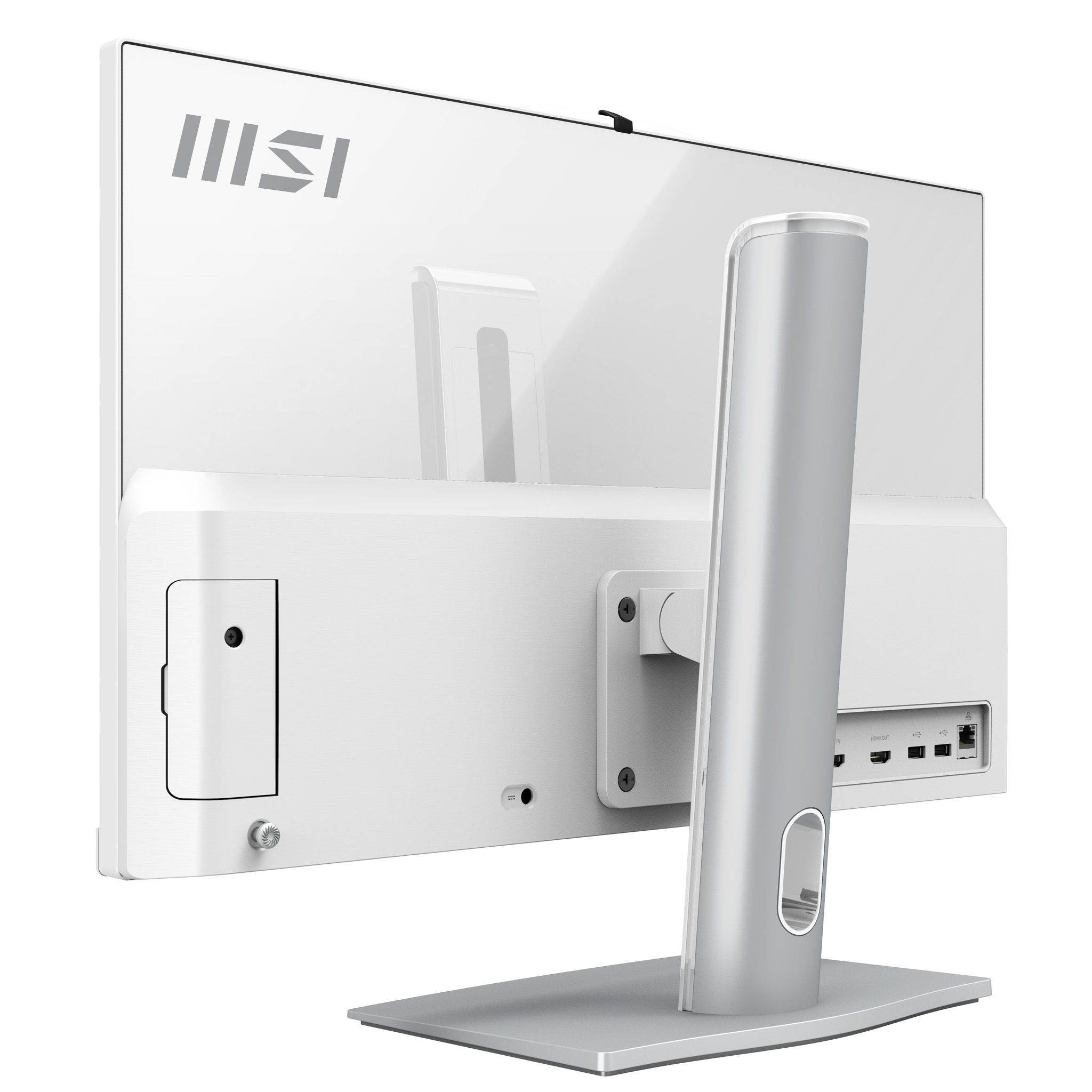

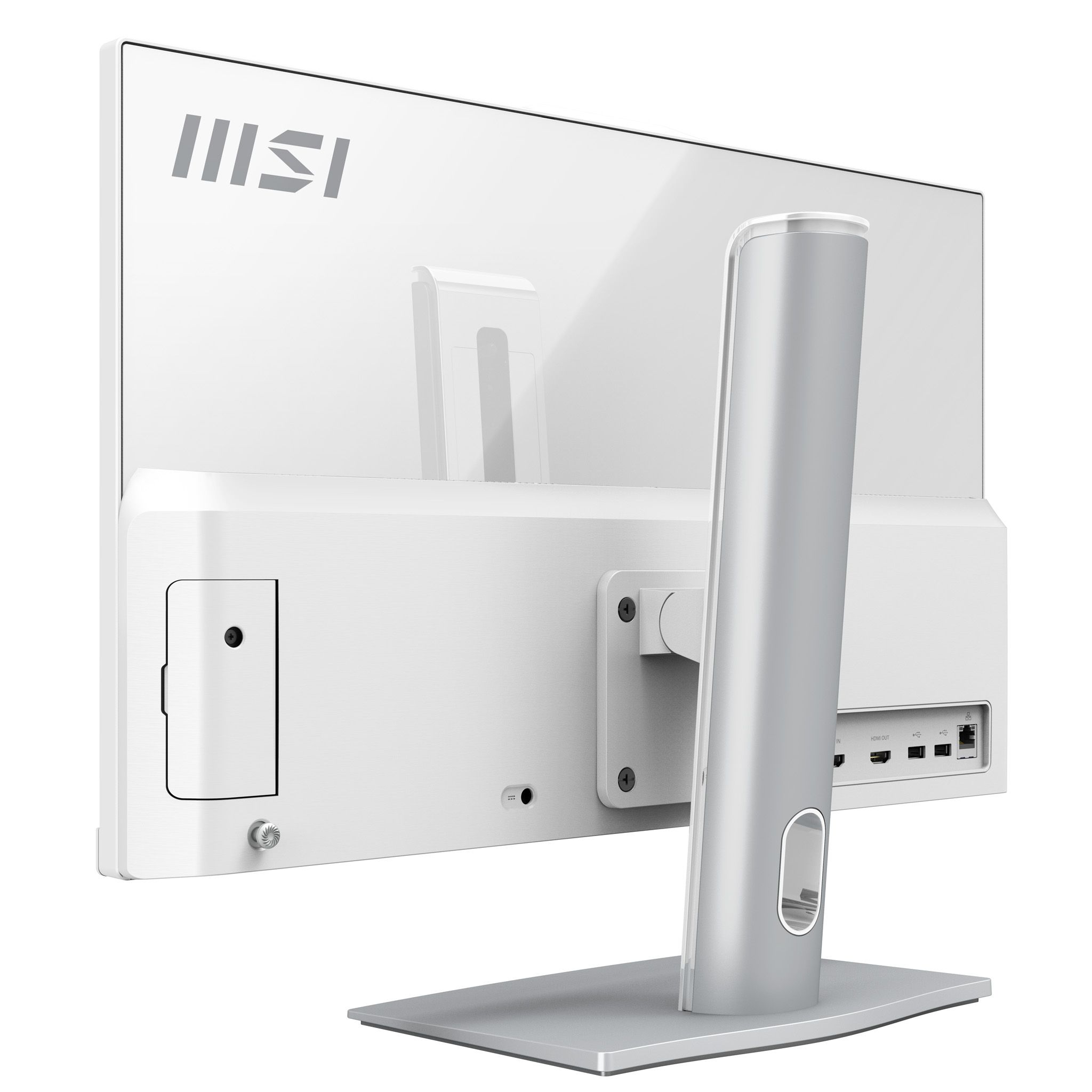

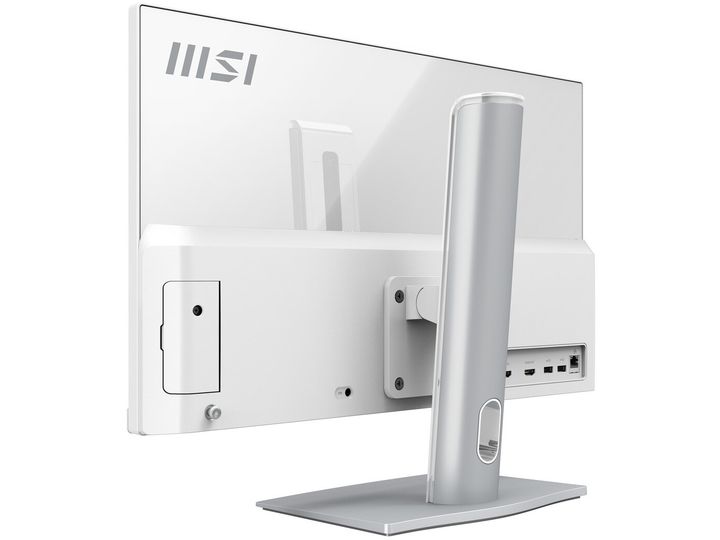

Easy Maintenance Design With the Storage Rapid Upgrade Design, maintaining or upgrading your 2.5” storage on Modern AM242 series will not be a nightmare any more.

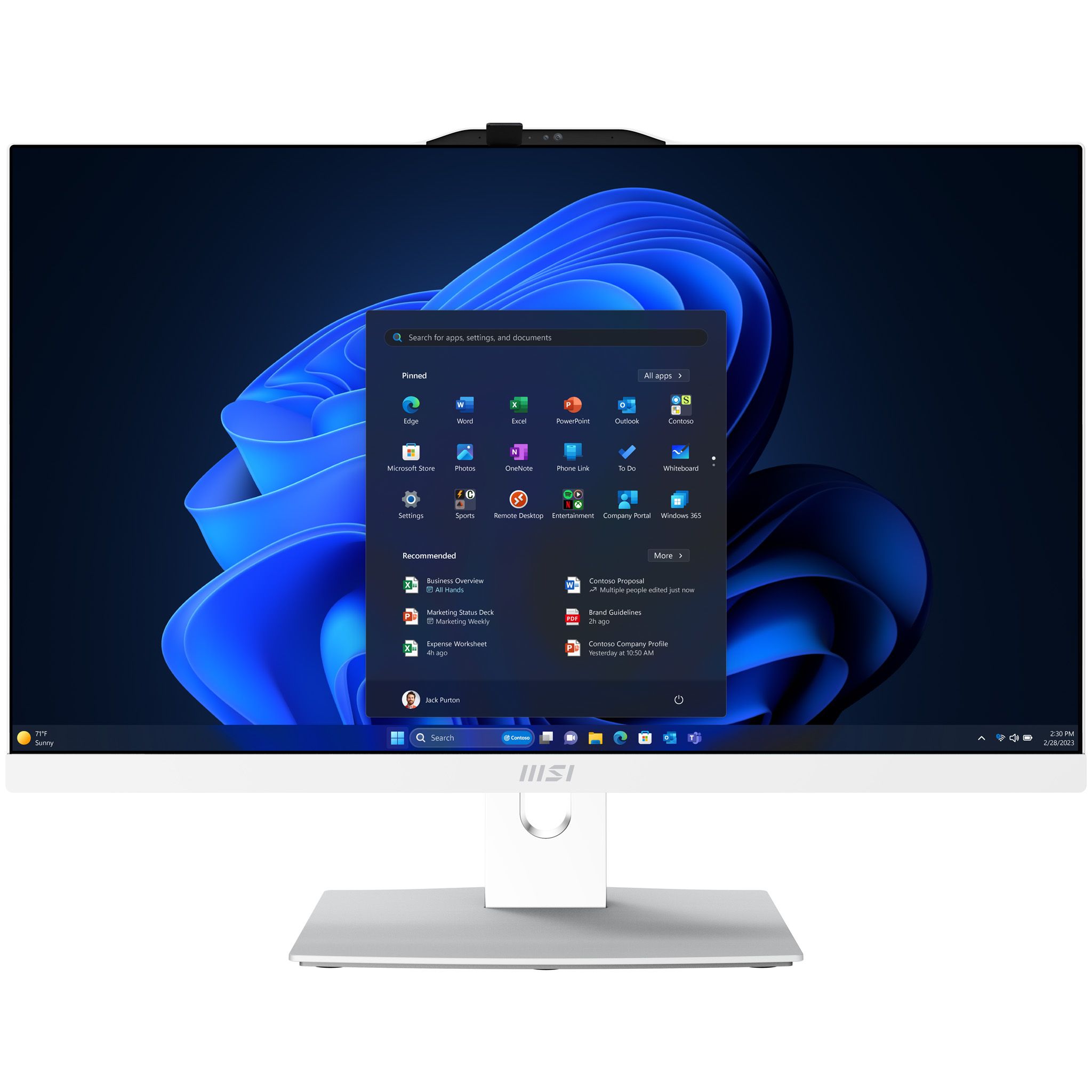

Work From Home with IPS Grade Panel Modern AM242 Series is equipped with IPS Grade Panel which not only instantly optimizes the screen colors and brightness , but also ensures that you have the best E-commerce management experience while working from home or learning its professional tasks at home.
Touch This World With Unlimited Opportunity Even When You're At Home Intuitively rolling up the webpage with your fingers, the Modern AM242 series equipped with in-cell touch technology that provides the most comfortable touch experience and a longer lifecycle for your every opportunity.
Secure Your E-Commerce Data At Home & In The Office FW TPM (Trusted Platform Module) technology is designed to provide hardware-based, security-related functions. You can store your sensitive data & passwords by encryption keys for advanced security.
Successful & Stylish B2B projects Over the past years, MSI has successfully supported Countless of commercial projects, including government tenders, restaurant & hotel facilitation, shopping mall navigation projects, school & university developments and professional office projects.
Bildschirmdiagonale
60,5 cm (23.8")
Display-Auflösung
1920 x 1080 Pixel
Touchscreen
Ja
HD-Typ
Full HD
Natives Seitenverhältnis
16:9
Helligkeit
250 cd/m²
Panel-Typ
IPS
Pixel Abstand
0,2745 x 0,2745 mm
Blendfreier Bildschirm
Ja
Neigungsverstellung
Ja
Neigungswinkelbereich
4 - 20°
Prozessorfamilie
Intel Core 7
Prozessorhersteller
Intel
Prozessor
150U
Prozessorgeneration
Intel Core (Series 1)
Anzahl Prozessorkerne
10
Prozessor-Threads
12
Prozessor Boost-Frequenz
5,4 GHz
Leistungskerne
2
Effiziente Kerne
8
Leistungskern maximale Turbofrequenz
5,4 GHz
Effizienter Kern maximale Turbofrequenz
4 GHz
Leistung Basisfrequenz des Kerns
1,8 GHz
Effiziente Basisfrequenz des Kerns
1,2 GHz
Prozessor-Cache
12 MB
Prozessor Cache Typ
Smart Cache
Grundleistung des Prozessors
15 W
Maximale Turboleistung
55 W
Speicherkapazität
16 GB
RAM-Speicher maximal
64 GB
Interner Speichertyp
DDR5-SDRAM
Speicherkartensteckplätze
2
Arbeitsspeicher Typ
SO-DIMM
Speichertaktfrequenz
5600 MHz
Speicherlayout
2 x 8 GB
Memory Formfaktor
DIMM/SO-DIMM
Gesamtspeicherkapazität
1 TB
Speichermedien
SSD
Optisches Laufwerk - Typ
Nein
Gesamtkapazität der SSDs
1 TB
Anzahl SSD installiert
1
SSD Speicherkapazität
1 TB
SSD Schnittstelle
PCI Express 3.0
NVMe
Ja
SSD-Formfaktor
M.2
M.2 SSD- Größe
2280 (22 x 80 mm)
Separater Grafikadapter
Nein
Separates Grafikkartenmodell
Nicht verfügbar
Eingebaute Grafikadapter
Ja
Eingebautes Grafikkartenmodell
Intel-Grafik
Hersteller der eingebauten GPU
Intel
On-Board-Grafikadapterfamilie
Intel-Grafik
Eingebaute Lautsprecher
Ja
Anzahl der Lautsprecher
2
Audio-Chip
Realtek ALC256
Integrierte Kamera
Ja
Megapixel insgesamt
2 MP
WLAN
Ja
Top WLAN-Standard
Wi-Fi 6E (802.11ax)
Ethernet/LAN
Ja
Bluetooth
Ja
WLAN-Standards
Wi-Fi 6E (802.11ax)
Hersteller von WLAN-Controllern
Intel
WLAN-Controllermodell
Intel Wi-Fi 6E AX211
Bluetooth-Version
5.3
Anzahl USB 2.0 Anschlüsse
2
USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A
0
USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ C
0
USB 3.2 Gen 2 (3.1 Gen 2) Anzahl der Anschlüsse vom Typ A
2
USB 3.2 Gen 2 (3.1 Gen 2) Anzahl der Anschlüsse vom Typ C
2
Anzahl USB4 Gen 3×2-Ports
0
Anzahl HDMI-Anschlüsse
2
Anzahl Ethernet-LAN-Anschlüsse (RJ-45)
1
HDMI-Version
2.0
Mikrofon-Eingang
Ja
Kombinierter Kopfhörer-/Mikrofon-Anschluss
Ja
Produktfarbe
Weiß
Kabelsperre-Slot
Ja
Slot-Typ Kabelsperre
Kensington
VESA-Halterung
Ja
Panel-Montage-Schnittstelle
75 x 75 mm
Produkttyp
All-in-One-PC
Marktpositionierung
Business
Motherboard Chipsatz
Intel SoC
Windows Hello
Ja
Installiertes Betriebssystem
Windows 11 Pro
Netzteilstärke
120 W
Gerätebreite (inkl. Standfuß)
652 mm
Gerätetiefe (inkl. Standfuß)
222 mm
Gerätehöhe (inkl. Standfuß)
455 mm
Betriebstemperatur
0 - 35 °C
Temperaturbereich bei Lagerung
20 - 60 °C
Relative Luftfeuchtigkeit in Betrieb
0 - 85%
Luftfeuchtigkeit bei Lagerung
0 - 90%
Garantiezeit
3 Jahr(e)
Das Produkt hat folgende Artikelnummer in unserem System
EAN:
4711377334402
SKU:
9S6-AE0722-2048
