Schneider Electric XALD101H29

Schneider Electric Enclosed Push Button - Complete Control Station
Forming part of Schneider Electrics Harmony XALD Series, this complete control station is the ideal solution for installations within the chemical, marine, energy and automotive industry. Although they are found within a multitude of applications, a simple example is within a car wash. The majority of them will be found within an industrial environment because of how the control station provides a high level of protection for the push button inside.
Features & Benefits
- Compatible with other items in the Harmony range such as pushbuttons, mushroom head operators, legend plates and LEDs
- 1 flush push button
- Comprised of a polycarbonate material
- Cable entry - 1 knock-out for cable entry, clamping capacity: <= 14 mm, 2 knock-outs for Pg 13 cable gland and ISO M20, clamping capacity: <= 12 mm
- Ambient air temperature for storage and operation -40...70 ?°C
- Mechanical durability - 10000000 cycles
What is the Harmony Series?
The Harmony Series is a range of push-button enclosures and pendant control stations that are used for direct control or auxiliary of processes and industrial machinery. This series is predominantly ideal for industrial, infrastructure and building applications and installations due to its wide choice of composition cut-outs. The Harmony Series range is all compatible to work with each other, interchangeably.

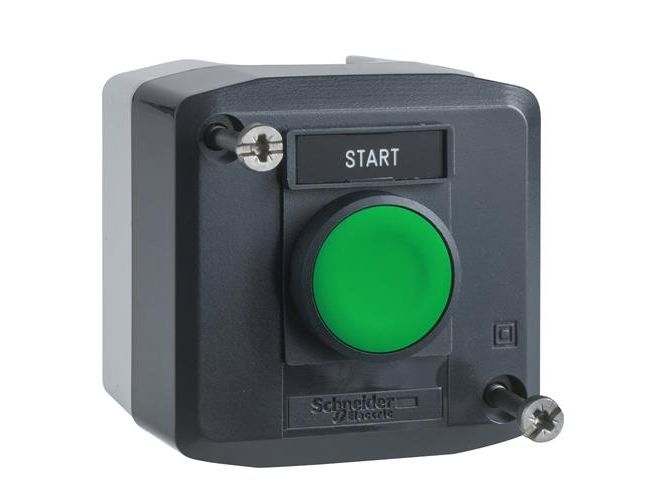

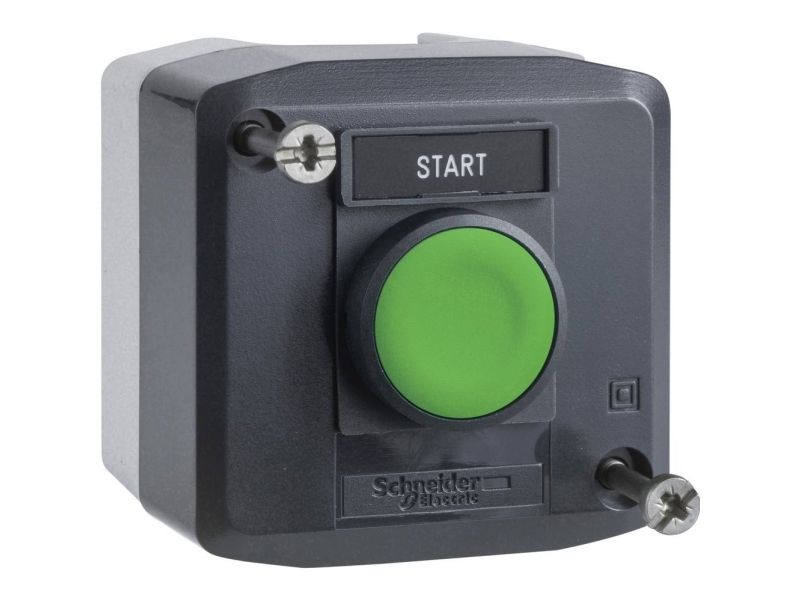

Schneider Electric Harmony XALD Series Enclosed Push Button, SPST, IP66/ IP67/ IP69K - XALD101H29
This enclosed push button from Schneider Electric features a robust construction with an IP66 rating, making it suitable for various applications. The push button is designed to withstand high voltage environments and has a spring return mechanism for smooth operation. With a green start button made of durable polycarbonate material, this push button offers reliable performance in demanding conditions.
Features & Benefits
- Durable construction with polycarbonate material
- IP66 rating for waterproof performance
- Spring return mechanism for smooth operation
- Green start button for easy identification
Applications
- Start function control station applications
- For use with XB5 ? 22 mm control and signalling units
Can it withstand high-pressure washer cleaning?
Yes, the push button is resistant to high-pressure washer cleaning at 7000000 Pa at 55?°C.
Will it operate in extreme temperatures?
It can operate in temperatures ranging from -25?°C to +70?°C.
Is the push button suitable for high voltage applications?
Yes, the push button has a maximum AC voltage of 600V and a maximum DC voltage of 600V.
