InLine HDMI 4x4 Multi View Matrix / Videowand Switch, 4 Eingänge auf 4 Ausgänge, HDMI, Schwarz, 1920 x 1080 Pixel, 437 x 205 x 43 mm, 0 - 40 °C, -20 - 60 °C

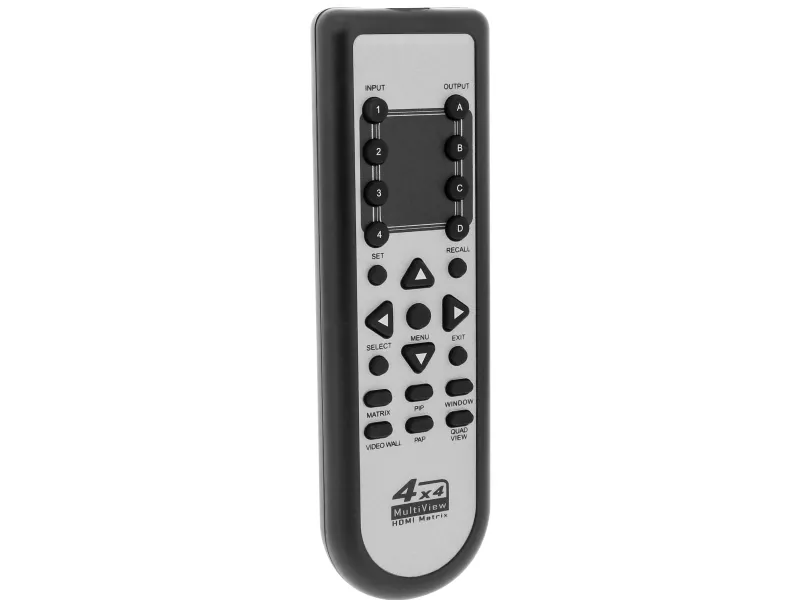

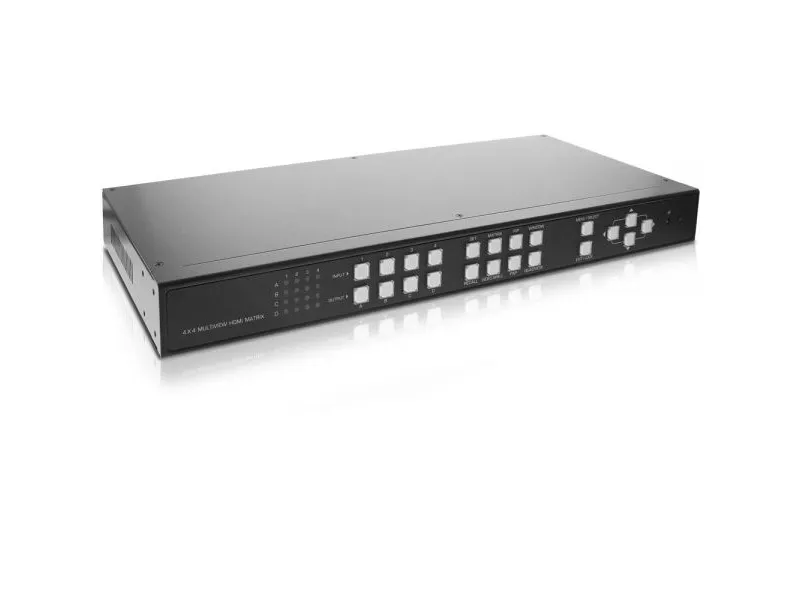

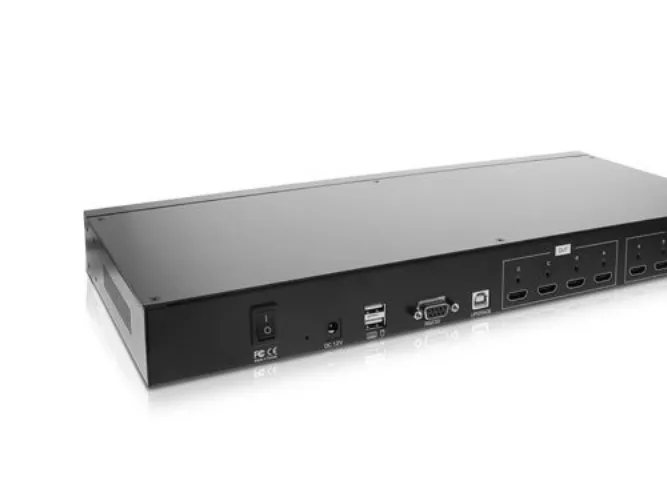

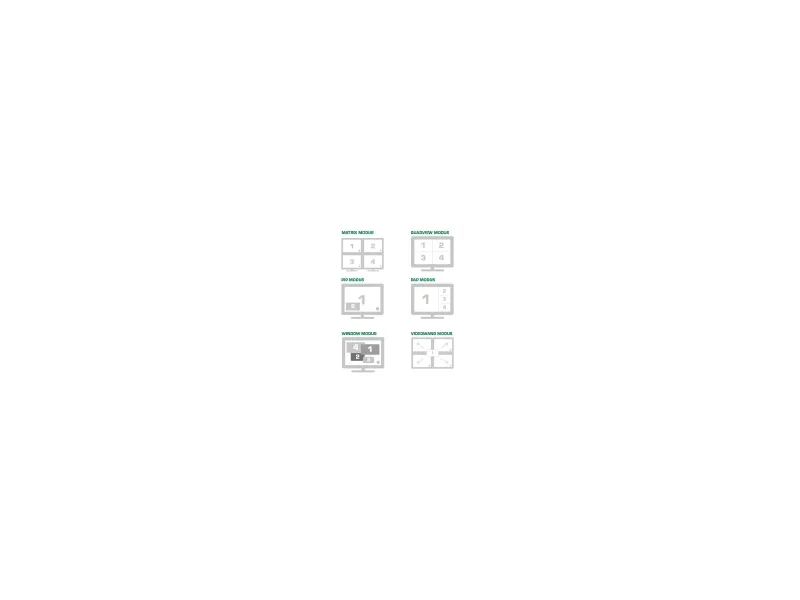

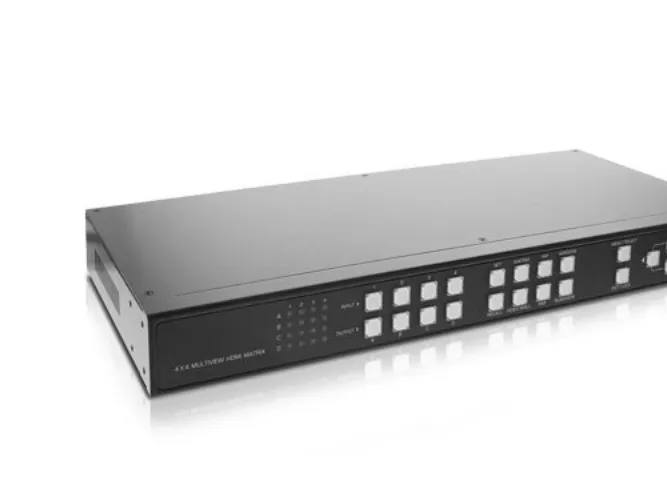

The InLine 4x4 multi-view distributed HDMI Matrix 4 HDMI Inputs 4 HDMI outputs individually, while the mapping between the video source and the display on the display is very individually adjustable, it can be shown with any source on a 2x2 video wall. The six displayable modes are: Matrix, PIP (Picture in Picture) PAP (Picture in Picture) Quad View, Windows mode and video wall. In matrix mode, 1-4 sources can be printed on 1-4 displays. PIP forms a source as a small picture from within another source. The Windows mode shows all 4 sources in window style simultaneously on the display. The Quad View mode shows the 4 sources in windows side by side on all four displays. The PAP provides a source of great on a display, the other 3 sources besides small. The video wall stretches the mode signal from a source 4 mounted on the display as a video wall (2x2) is thus a representation of 1920x1080 to 3840x2160 inserted possible. The operation of the matrix switch can be operated via the buttons on the front panel, via an IR remote control, a mouse / keyboard (via USB) or via RS-232. The switch has 19 "format and can be comfortably accommodated with the mounting brackets in network closets. You can program up to eight individual preferences, which can be called with only 2 buttons. The OSD menu helps to display the source and programming.
