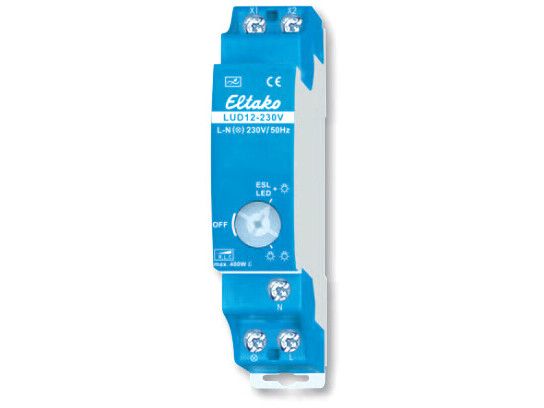

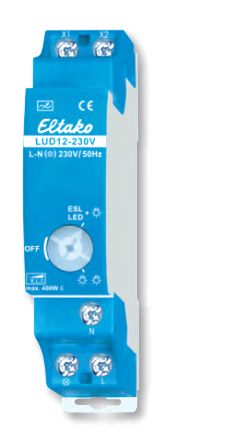

ELTAKO LUD12 Leistungszusatz fuer FUD12 (21100805)

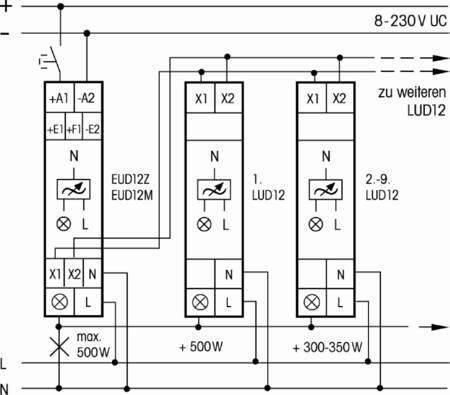

Capacity enhancer for universal dimmer switches and dimmer switches for PWM activation. Power MOSFET up to 400 W. Standby loss 0.1 watt only. Modular device for DIN EN 60715 TH35 rail mounting. 1 module = 18 mm wide, 58 mm deep. Capacity enhancers LUD12-230 V can be connected to the universal dimmer switches EUD12D, SUD12 (1-10 V input) and the multifunction time relay MFZ12PMD. By this the switching capacity for one lamp will be increased up to 200 W or alternatively for additional lamps up to 400 W per each capacity enhancer. Dimmable energy saving lamps and dimmable 230 V LED lamps are also dependent on the lamp electronics.
Both switching modes for increase of capacity can be executed simultaneously.
Automatic lamp detection in the "Capacity increase with additional lamps" setting.
Supply voltage 230 V.
Automatic electronic overload protection and over-temperature switch-off.
In the mode "Increase of capacity with additional lamps" the kind of load of a capacity enhancer LUD12-230 V can vary from the kind of load of the universal impulse dimmer switch.
