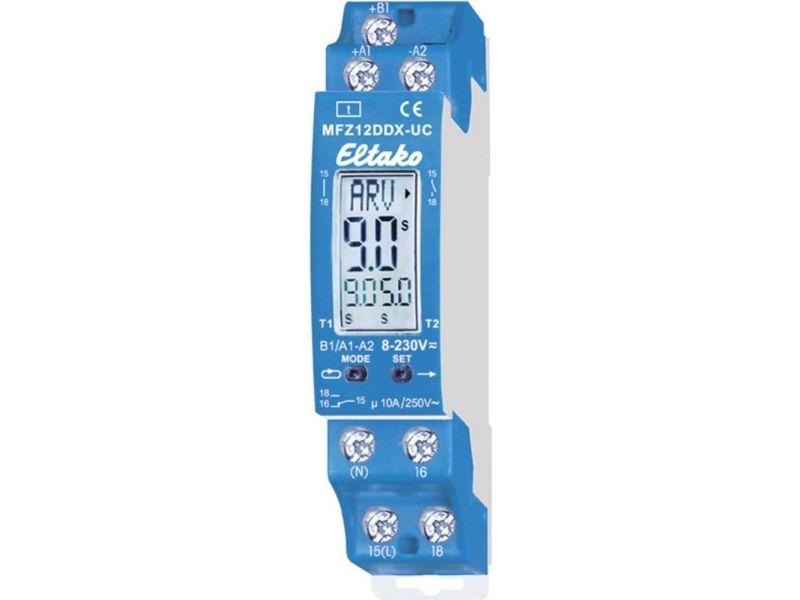

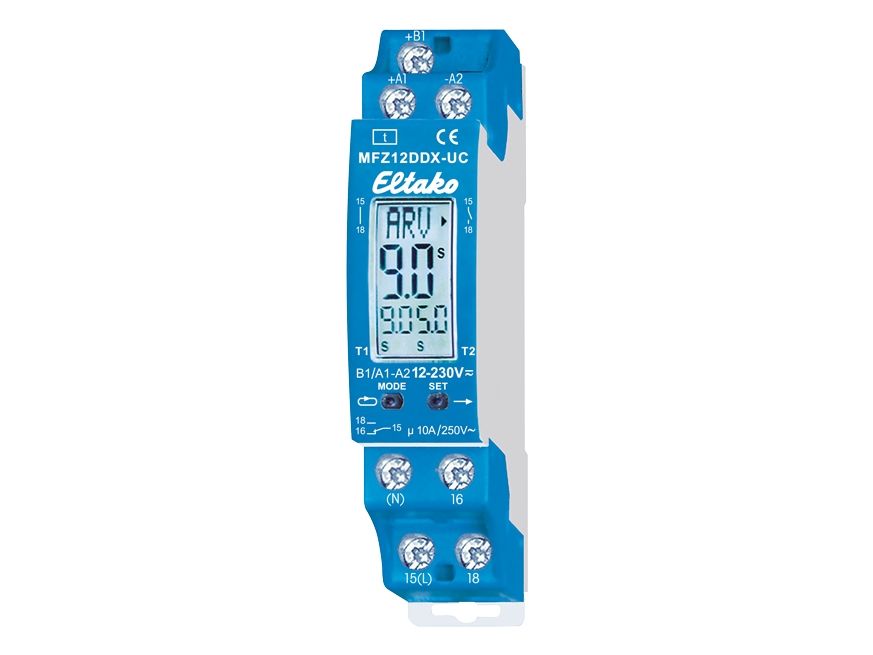

Eltako 23001004, Drehschalter, 1P, Blau, 230 V, 16 A, 18 mm

1 CO contact potential free 10 A/250 V AC. Incandescent lamps 2000 W.
Standby loss 0.05–0.5 watt only.
Modular device for DIN-EN 60715 TH35 rail mounting.
1 module = 18 mm wide, 58 mm deep.
With the patented Eltako Duplex technology (DX) the normally potential-free contacts can
still switch in zero passage when switching 230 V AC 50 Hz and therefore drastically reduce
wear. Simply connect the neutral conductor to the terminal (N) and L to 15 (L) for this.
This gives an additional standby consumption of only 0.1 Watt.
Universal control voltage 8 to 230 V UC. Supply voltage same as the control voltage. Both functions and times are entered at the touch of a key and indicated digitally on an LC
display. Only two keys are required for this purpose.
When setting the time all values can be entered within preset time ranges (0.1 to 9.9 or 1 to 99 seconds, minutes or hours). The longest possible setting is 99 hours. 600 settings are
possible. The time setting is continuously displayed digitally.
By using a bistable relay coil power loss and heating is avoided even in the on mode.
