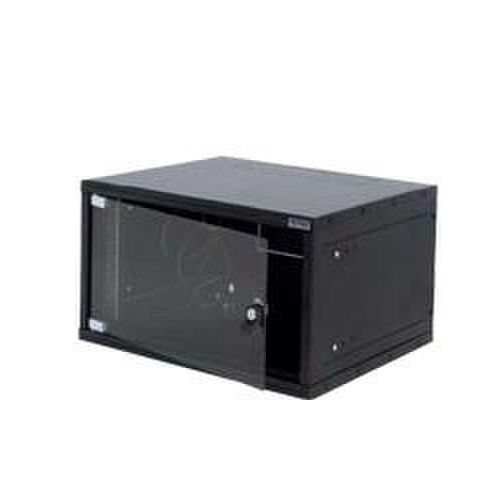

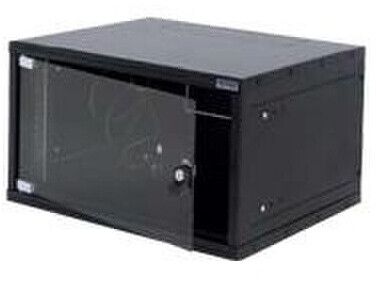

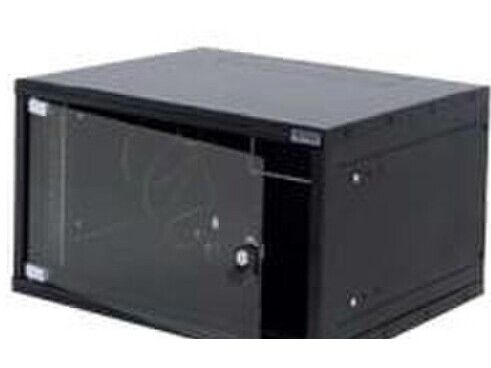

Triton Delta X, Wandhalterung, 6U, 25kg, 13kg, Schwarz

Delta X - wall-mounted cabinet represents the conception of „flat pack“, which means demountable cabinet that is supplied disassembled. Thanks to the unique construction the assembly procedure of Delta X takes couple of minutes and it almost does not require any tools. The plastic pins are used to join all parts of the cabinet.

19" vertical rails can be adjusted within the depth of the cabinet in prepared positions. Verticals are fixed to the body of the cabinet by screws.
The depth of the cabinet is 400mm and it is supplied in 4, 6, 9 and 12 Units versions. Maximal recommended loading capacity of all three versions is 25kg.
Cable entries are located in the top and bottom of the cabinet. Another one is in the middle of the back side. Each entry point is covered by a „break out“ style blanking panel, which can be easily broken out by a screwdriver for example. All metallic parts of the cabinet are mutualy earth connected.
These cabinets are supplied with fully glass door with lock only. It is possible to mount the door for opening from the left or right side.
