MEAN WELL PLM-25-1050, 25,2 W, 110 - 295 V, 47 - 63 Hz, 0.15 A, Aktiv, 85%

- 230VAC only or Full range (up to 295VAC)
- models available
- Built-in active PFC function
- Constant current design
- Protections:Short circuit
- Cooling by free air convection
- Fully isolated plastic case
- Class II power unit, no FG
- Class 2 power unit(for PLM-25-500/700/1050)
- No load power consumption <0.5W
- High reliability,low cost
- 2 years warranty

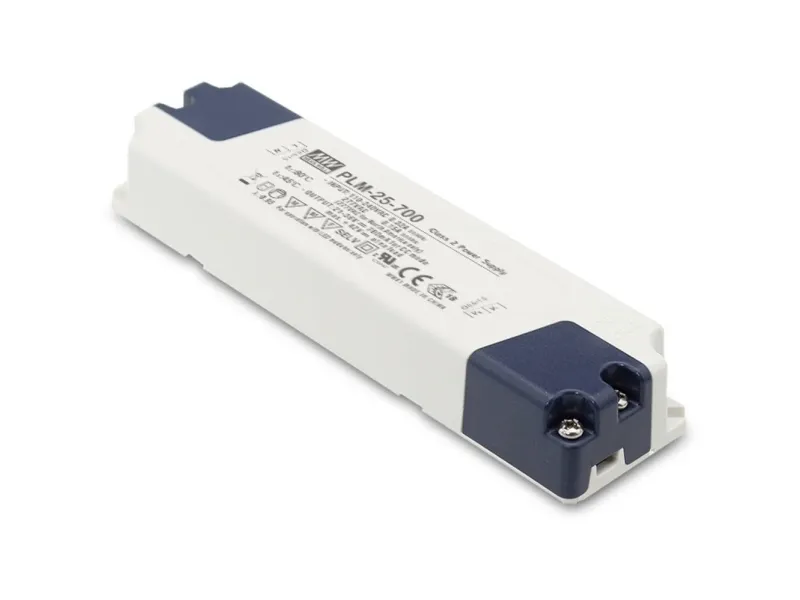

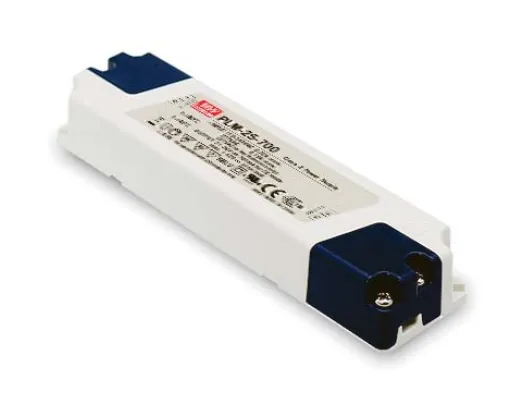

PLM-25 is a 25W economical AC/DC LED power supply series. Incorporating a built-in active PFC
design, PLM-25 provides a high Power Factor value greater than 0.9. In addition, with the low no load
power consumption below 0.5W, and the setup time less than 500ms, PLM-25 is complied with the ErP
regulation required by European Union for lighting fixtures.
PLM-25 is a class II (without FG pin) power unit housed with the UL 94V-0 rated flame retardant
plastic case. The I /O terminals are designed with screw-less clamp style terminal block that greatly
simplifies the wiring installation. Two types of models with different input voltage range are offered:
PLM-25 series, which operates from 110~295VAC, and PLM-25E series, which operates from
180~295VAC.These two series are both constant current output design, supplying models with the
current of 350mA, 500mA, 700mA and 1050mA, respectively.
