Neutrik NTR-NC3FXXB
Artikelnummer: [3544477] | Produzent: Neutrik | Modell nummer: NC-3FXXB | EAN: 7613187000201
Externen Lager (5-6 Werktage)
Das Produkt befindet sich in einem externen Lager. Die Lieferfrist: ca. 5-6 Werktage. Mehr Info
Versandoptionen - Wird im Checkout ausgewählt
Versand mit DHL - PaketShop
3,57
Versand mit DHL zur Adresse
11,90
Versand mit GLS - PaketShop
9,16
Versand mit GLS zur Adresse
11,90
Alle Versandoptionen anzeigen (4)
EUR
15,78
ex. MwSt. 13,26
Gesamtbetrag inkl. Versand.
19,35
Die Funktion setzt voraus, dass Sie angemeldet sind. Erstellen Sie einen Nutzer und verwenden Sie unser intelligentes Listensystem, um zukünftige Einkäufe, regelmäßige Einkäufe oder Wunschlisten zu verfolgen.
Jetzt registrieren
Anmelden
Jetzt registrieren
Anmelden
Send på mail

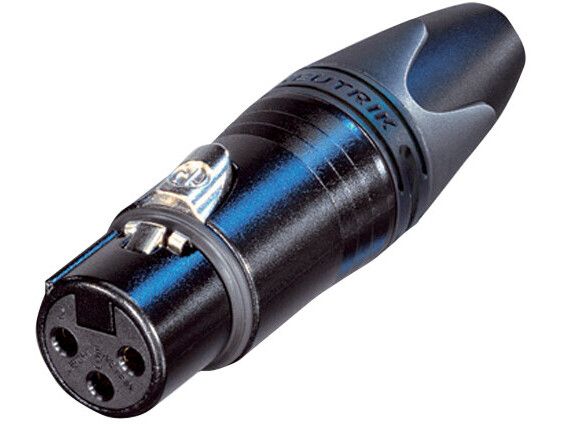

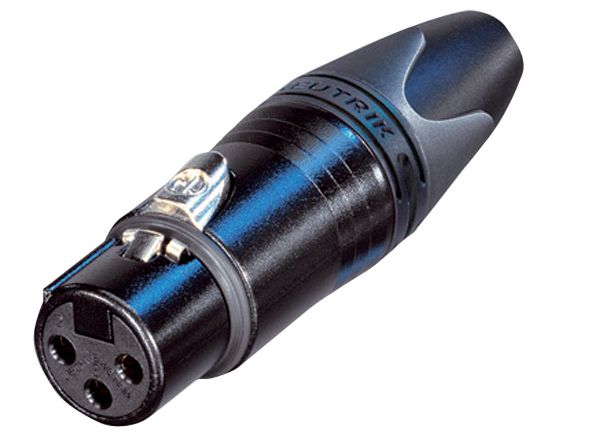

• 3-polig XLR-hona
• Svart metallhus och guldkontakter The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.
TECHNICAL DATA
Product
• Connector: Type XLR
• Gender: female
Electrical
• Capacitance between contacts: = 4 pF
• Contact resistance: = 3 mO
• Dielectric strength: 1,5 kVdc
• Insulation resistance: > 2 GO (initial)
• Insulation resistance: > 1 GO (after damp heat test)
• Rated current per contact: 16 A
• Rated voltage: 50 V
Mechanical
• Cable O.D.: 3.5 - 8.0 mm
• Insertion force: = 20 N
• Withdrawal force: = 20 N
• Lifetime: > 1000 mating cycles
• Wire size: max. 2.5 mm²
• Wire size: max. 14 AWG
• Wiring: Solder contacts
• Locking device: Latch lock
Material
• Boot: Polyuretan
• Bushing: Polyamide (PA 6 15% GR)
• Contact plating: 0.2 µm Au hard alloy over 2 µm Ni
• Contacts: Bronze (CuSn8)
• Insert: Polyamide (PA 6.6 30 % GR)
• Locking element: Zinc diecast (ZnAl4Cu1)
• Shell: Zinc diecast (ZnAl4Cu1)
• Shell plating: Black chromium
• Strain relief: Polyacetal (POM)
Environmental
• Flammability: UL 94 HB
• Standard compliance: IEC 61076-2-103
• Protection: class IP 40
• Solderability: Complies with IEC 68-2-20
• Temperature range: -30 °C to +80 °C
