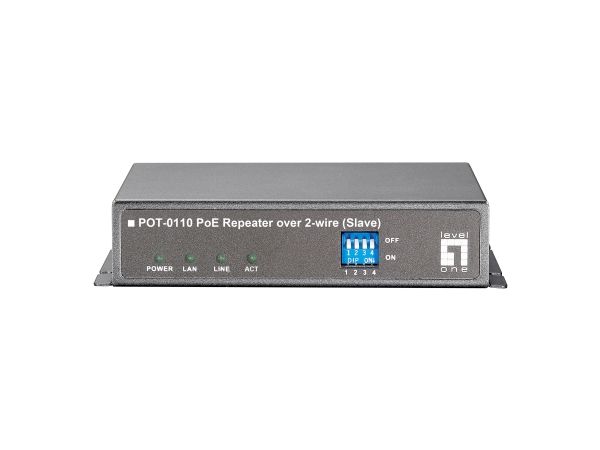

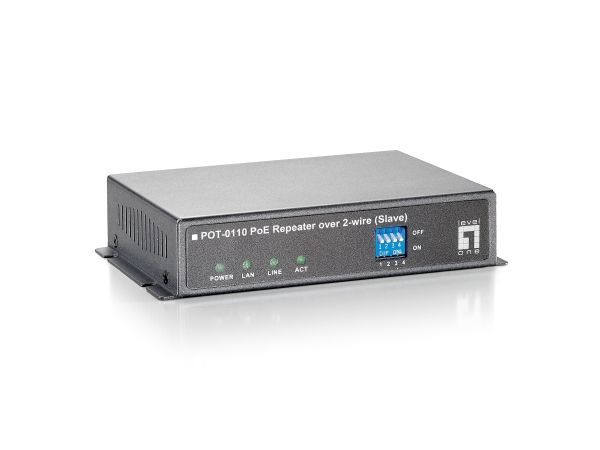

LevelOne Repeater POT-0110 Outdoor via 2-Drath Slave PoE

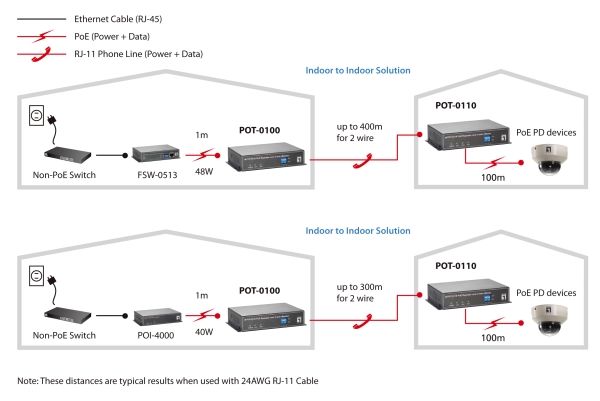

The POT system, one master and one slave units, provide a long-reach Ethernet extension with remote Powerover-Ethernet (PoE) capability over a 2-wire line. Connection with a Class 0 PD device, the distance of two-wire 24AWG cables can be up to 400 meters when using a 48-watt high power PoE switch, FSW-0513/0543. Users may select a fixed data rate for different copper line ranging. The maximum data rate can be up to 60 Mbps full duplex for 2-wire line.

The POT master unit is powered by the local PoE Ethernet network, and transmits both the data and power to the remote slave unit over 2-wire cable. The remote unit regenerates the power and provides the PoE capability to power up the remote PD device up to 15-watt when connecting to 48-watt high power switch, FSW-0513. The POT M/S supports the indoor and outdoor models with wall-mount feature.

Equipped with dip switches, the 2-wire line speed can be configured to meet different line gauges and distances. A POT pair offers a cost effective solution for remote power applications such as LAN-to-LAN connectivity, video streaming, FTTB, and MDU/MTU over single twisted line.
