FCI 71918-110LF Polverbinder mit langem Lösegriff, inkl. Zugentlastungsschelle Rasterweite: 2,54 mm Gesamtzahl der Pole: 10 Anzahl der Reihen: 2 1 St

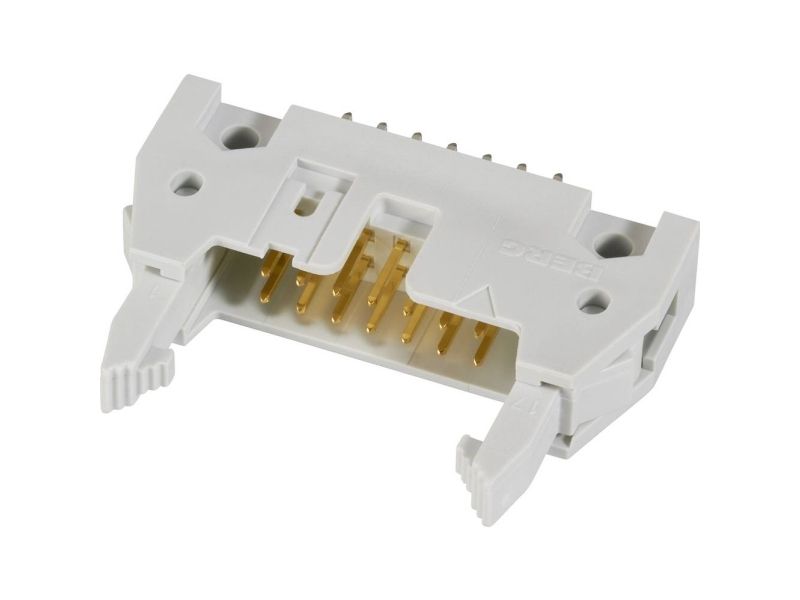

Amphenol FCI Quickie 2.54 mm PCB Ejector Header Connectors
Quickie series 2.54 mm ejector header connectors that mate with the Quickie IDC receptacle connectors. These Quickie ejector headers have four wall shrouding which provides protection the unmated pins. The shrouded housing also incorporates dual polarization slots and keying features for accurate alignment and to prevent mismating. The side latches enable the header to be locked securely to the mating connectors and allow easy ejection. The latches also minimize space on the PCB and enable high density mounting. The contacts of these Quickie series 2.54 mm ejector headers are duplex plated guarantees a performance of 100 mating cycles. The housings are made of high temperature thermoplastic and are able to withstand the wave solder process. These Quickie series 2.54 mm ejector header connectors are available as right angle or vertical mounting and with a standard or low profile latch design.
Part numbers 71918-1XXXX and 71922-1XXXX have standard latches and mate with 71600-0XXXX IDC receptacles
Part numbers 71918-2XXXX and 71922-2XXXX have low profile latches and mate with 71600-1XXXX IDC receptacles
Features and Benefits
Four wall shrouding for contact protection
Dual polarization slots and keying to prevent mismating
Side latches for easy, secure mating and ejection
Duplex plating contacts guarantee a performance of 100 mating cycles
High temperature thermoplastic housings
Product Application Information
These Quickie 2.54 mm IDC connectors are suitable for use in applications in a wide range of markets. These markets include industrial, instrumentation, medical markets, consumer, communications and data
Note
Mates with Quickie IDC Receptacles, see stock number
673-7682
typical.
2.54mm Amphenol FCI Quickie Interconnection System
