LAPP SKINTOP® INOX SC M 12 53806720 Kabelforskruning M12 Rustfrit stål Rustfrit stål 5 stk

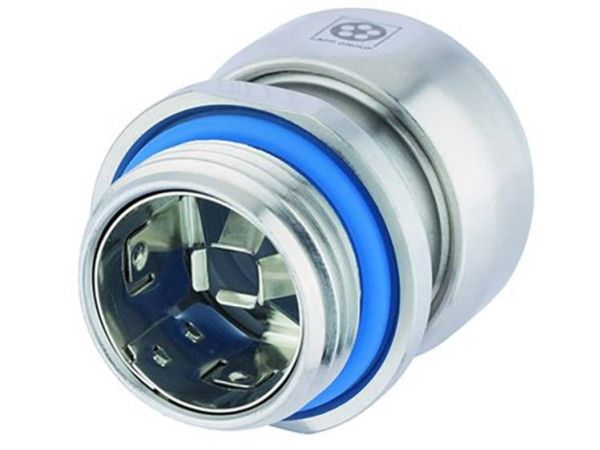

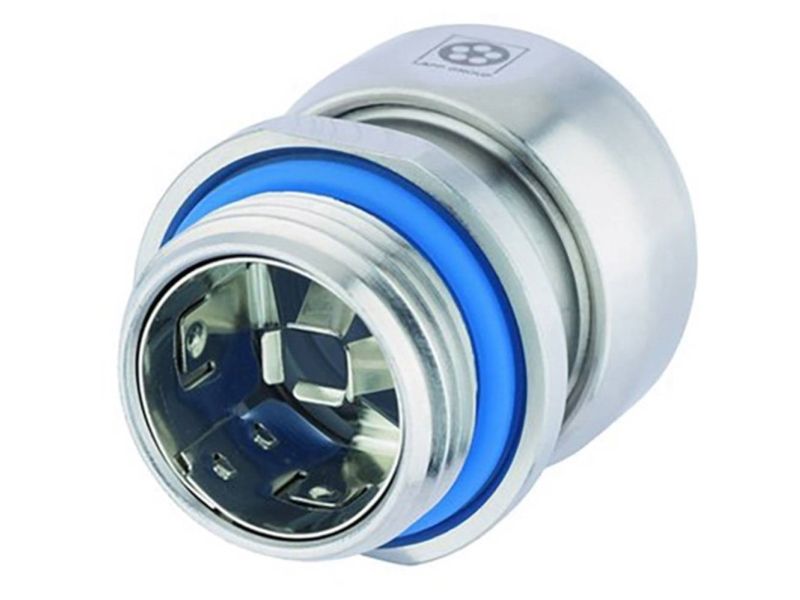

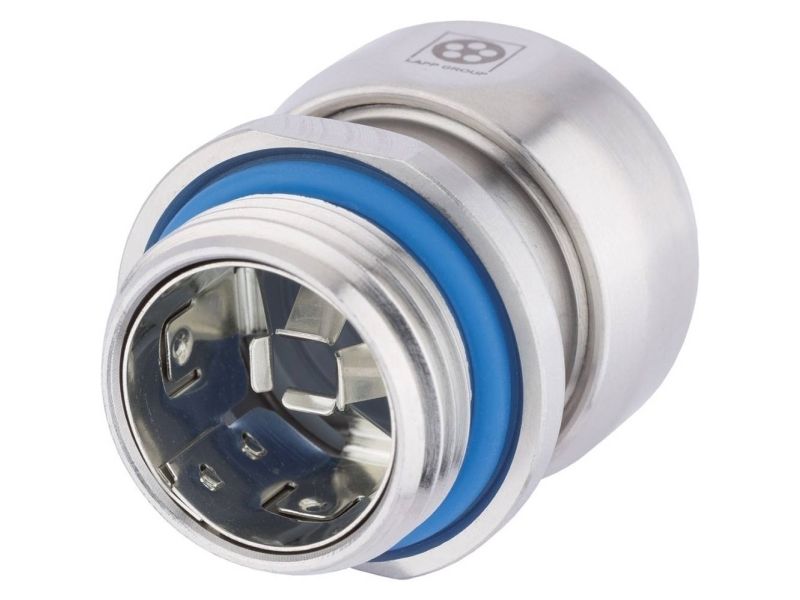

SKINTOP INOX SC Cable Glands
From Lapp, the Skintop INOX SC cable glands have a robust stainless steel construction, and offer a fantastic level of mechanical resistance and environmental protection in cable management.
The easy to install INOX SC gland has a smooth and compact design, which accommodates a wide clamping range. The gland also features a low resistance screen contact, and conductive flexible EMC contact, which offers a high degree of protection against interference signals.
Features and Benefits
IP68
EMC Protection
Temperature Resistant
Sea-water Resistant
Good Chemical Resistance
Suitable for Food and Beverage Environments
Applications
The INOX series of cable glands are suitable for environments where hygiene control is a concern, such as:
Pharmaceutical Industry
Food Industry
Bottling Plants and Breweries
Their resistance to seawater also makes them suitable for offshore applications. They can also be used for EMC-compliant earthing of the copper braiding, or for cables with copper shaft sheath.
Environment
The glands are sealed to IP68, which means they are highly resistant to dust ingress and resistant to water even up to shallow submersion. This means they are suitable for use in harsh environments and some open air applications.
Standards
DIN EN ISO 14 159, DIN EN 1672-2, RoHS, CE

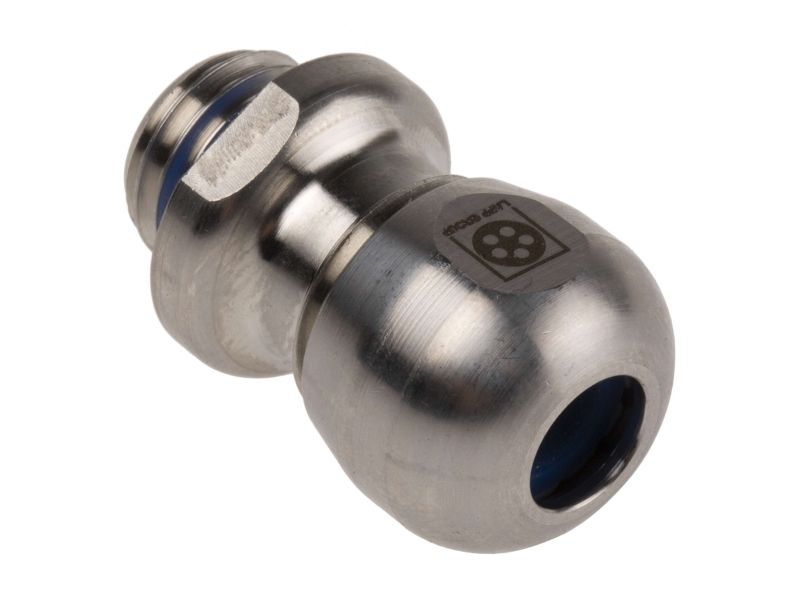

LAPP Cable Gland, Corrosion-Resistant, 29.3mm Overall Length - SKINTOP Series - 53806720
Wrap up your equipment connections using this cable gland from LAPP. It helps to ensure a cable is firmly sealed to an enclosure or machine, which cuts down on the chance of moisture and dust playing havoc with your connections. A chemical and corrosion-resistant smooth stainless steel construction makes the unit an ideal choice for hygienic settings, as it withstands regular washdowns. Five to a pack ensures you have spares to hand when you need them.
Features & Benefits
Halogen-free, so emits no toxic fumes if heated
Wide clamping range between 4 and 7mm for compatibility with different-sized cables
IP68 rating means your connection is dust-tight and protected against immersion in up to 1.5m of water for 30 minutes
Applications
Bottling plants
Pharmaceutical industry
Drilling rigs
Wastewater facilities
What's the chance of this cable gland interfering with electronic devices?
As this is an electromagnetically compatible product, there's little risk of it interfering with nearby electronic goods.
