TracoPower TMDC 20-2415 DC/DC-Wandlermodul 24 V/DC 24 V/DC 835 mA 20 W Anzahl der Ausgänge: 1 x

Artikelnummer: [4317611] | Produzent: TracoPower | Modell nummer: TMDC 20-2415 | EAN: 2050004653397
Externen Lager (5-6 Werktage)
Das Produkt befindet sich in einem externen Lager. Die Lieferfrist: ca. 5-6 Werktage. Mehr Info
Versandoptionen  - Wird im Checkout ausgewählt
Versand mit DHL - PaketShop
3,57
Versand mit DHL zur Adresse
7,60
Versand mit GLS - PaketShop
9,16
Versand mit GLS zur Adresse
11,90
Alle Versandoptionen anzeigen (4)
EUR 85,05
ex. MwSt. 71,47
Gesamtbetrag inkl. Versand. 88,62
Lesen Sie weitere Spezifikationen und Beschreibung

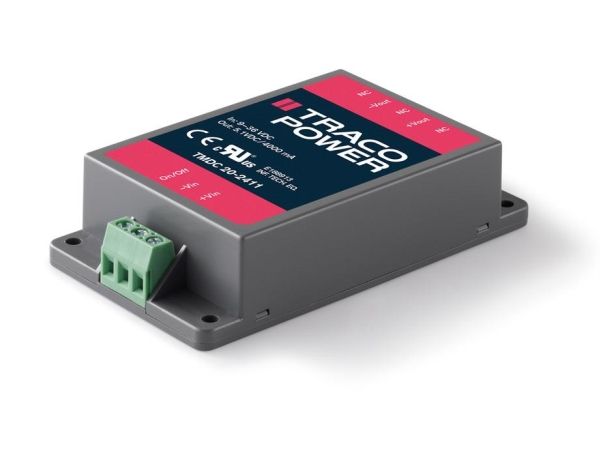

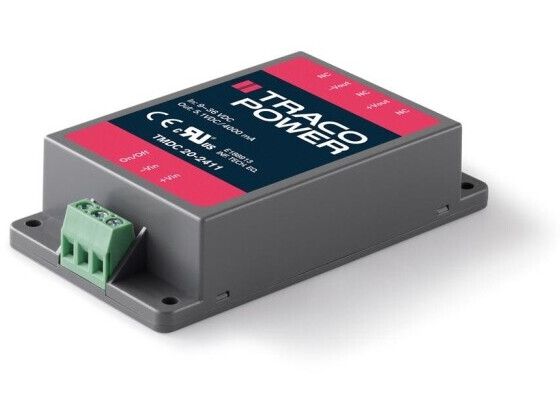

The TMDC 20 Series is a range of encapsulated high performance DC/DC converter modules. With a very high efficiency of up to 91% and the use of highest grade components these 20 W converters are made for a reliable operation in the temperature range of -40°C up to 90°C. They come in chassis mount version with screw terminal block. The 8 models have a wide 4:1 input voltage range and a tight output voltage regulation. They do not need a minimum load and offer a high efficiency also at low load conditions. They feature a remote control input and a green power good LED which indicates the presence of the output voltage. Protection against overload and short circuit are standard features of these converters. EMC characteristics and safety certifications are aligned for the operation in industrial environment.
