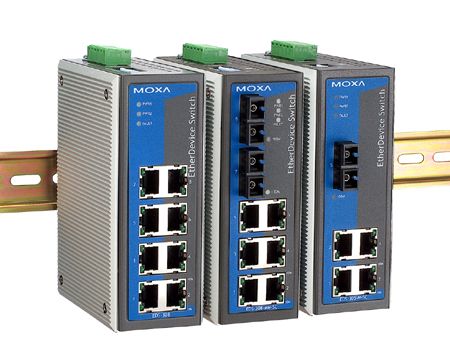

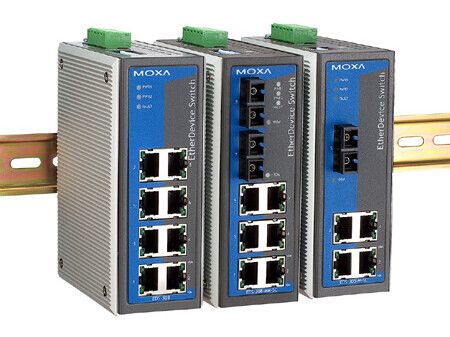

Moxa EDS-305-S, Unmanaged

The EDS-308/305 series includes 8, and 5 port Ethernet switches that provide an economical solution for your industrial Ethernet connection, and the built-in relay warning function alerts maintainers when power failures or port breaks occur.

These switches have been designed for harsh industrial environments, such as in hazardous locations (Class 1 Div. 2/Zone 2) that comply with FCC, TÜV, UL, and CE standards. EDS-308/305 series includes 2 models: one with an operating temperature range of 0 to 60°C, and the other one with extended 0perating temperature range of -40 to 75°C. These 2 models pass through a 100% burn-in test to ensure that they fulfill the special needs of industrial automation control.

- 10/100BaseT(X), 100BaseFX (Multi/single mode, SC/ST connector)
- Redundant dual 24 VDC power inputs
- Relay output warning for power failure and port break alarm
- Broadcast storm protection
- Transmits VLAN tag packets transparently
- -40 to 75°C operating temperature range (T models)
- Rugged hardware design well suited for industrial environments
