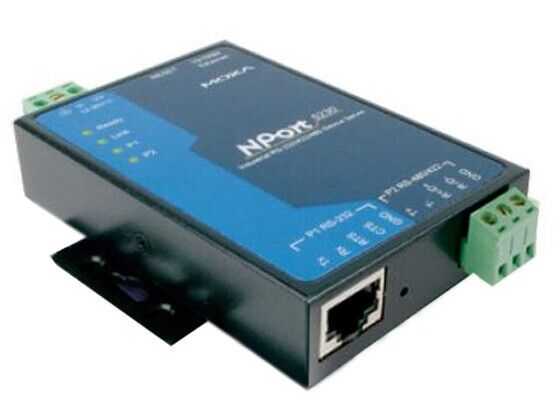

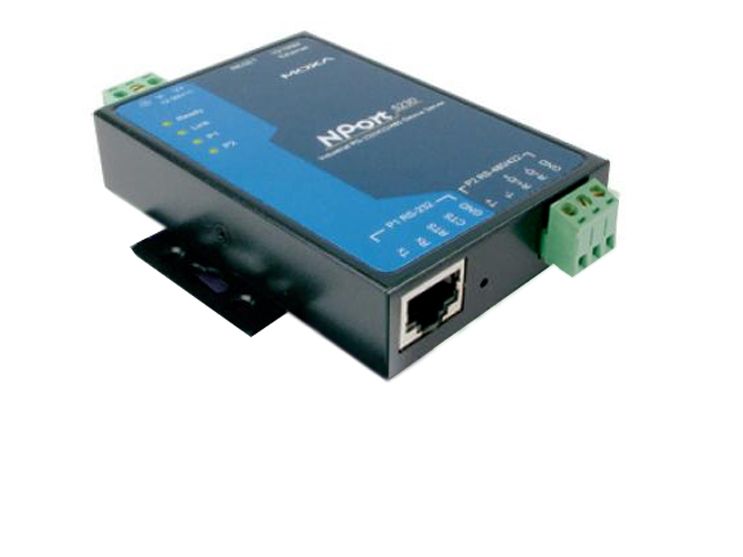

Moxa NPort 5230, 12 - 48 V, ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, DNS,HTTP, SMTP, IGMP v1/2, 340 g, 67 x 100,4 x 22 mm, 0 - 55 °C, -20 - 85 °C

2-port RS-422/485 serial device servers
Standard TCP/IP Protocols and Choice of Operation Modes.

NPort® 5230 device servers can operate in TCP Server, TCP Client, or UDP operation mode, ensuring compatibility with software based on a standard network API (Winsock, BSD Sockets).

Real COM/TTY Drivers for Existing Software
With the Real COM/TTY drivers that are provided with each NPort®, software designed for communication with COM/TTY ports can be instantly and seamlessly integrated into a TCP/IP network. This is a excellent "no fuss" way to preserve your software investment and enjoy the benefits of networking your serial devices.

Control Remote Serial Devices with TCP/IP or Traditional COM/TTY Port
By specifying the NPort® 5230's IP address and port number, a network sockets API can obtain access to the attached serial device over the network, from any host computer that supports TCP/IP. For legacy Windows or Linux software that is COM or TTY-based, Moxa's COM/TTY drivers provide a seamless way of operating over the network.

Features:
- Small size for easy installation;
- Versatile socket operation modes, including TCP Server, TCP Client, and UDP;
- Easy-to-use Windows utility for confi guring multiple device servers;
- Supports 10/100M Ethernet;
- Patented ADDC® (Automatic Data Direction Control) for 2-wire and 4-wire RS-485;
- Built-in 15 KV ESD protection for all serial signals;
- SNMP MIB-II for network management.
