Fischer 512652, Rohrschelle, Schwarz, Stahl, 56 - 63 mm, 5,08 cm (2"), EPDM, Zink Stahl, M8/M10

Artikelnummer: [4633017] | Produzent: Fischer | Modell nummer: 512652 | EAN: 4048962117783
Externen Lager (16-23 Werktage)
Das Produkt befindet sich in einem externen Lager. Die Lieferfrist: ca. 16-23 Werktage. Mehr Info
Versandoptionen  - Wird im Checkout ausgewählt
Versand mit DHL - PaketShop
3,57
Versand mit DHL zur Adresse
7,60
Versand mit GLS - PaketShop
9,16
Versand mit GLS zur Adresse
11,90
Alle Versandoptionen anzeigen (4)
EUR 81,37
ex. MwSt. 68,38
Gesamtbetrag inkl. Versand. 84,94
Lesen Sie weitere Spezifikationen und Beschreibung

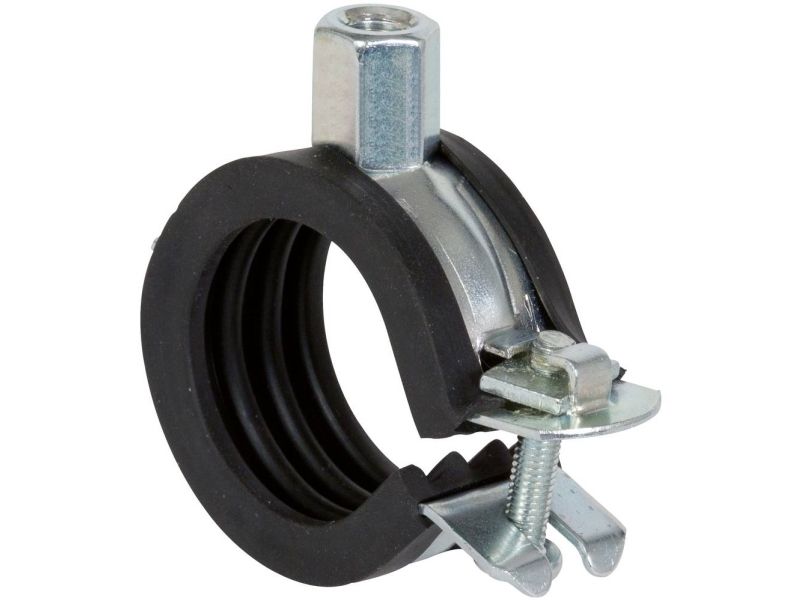

The fischer hinged pipe clamp FGRS with sound insulation insert for fixing pipelines. The pendulum screw allows for simple one-handed installation. Connecting nut with combination thread M8 / M10 for holding threaded rods or hanger bolts.

Advantages
- The floating single screw allows a simple, one-handed installation.
- The safety latch fastening guarantees secure pipe installation without the clamp springing open.
- The compact construction of the pipe clamp enables a simple post-installation insulation.
- The screw's design stops it falling out during the installation.

Properties
- Material: steel DD11 (material no. 1.0332) acc. to DIN EN 10111
- Zinc plating: electro zinc plated
- Connecting nut: resistance welded, M8, SW 13
- Locking screw: flat head screw with combination recessed head
- Material sound insulation insert: EPDM; chlorine-free; silicone-free
- Sound insulation: for DIN 4109
- Temperature range: -40 °C to +100 °C
- Hardness: 55 ± 5° Shore A
- Fire behaviour: DIN 4102: Class B2
