AJA OG-X-FR, Rackrahmen, Schwarz
Artikelnummer: [4671047] | Produzent: AJA | Modell nummer: OG-X-FR | EAN: 0812321031423
Externen Lager (4-5 Werktage)
Das Produkt befindet sich in einem externen Lager. Die Lieferfrist: ca. 4-5 Werktage. Mehr Info
Versandoptionen - Wird im Checkout ausgewählt
Versand mit DHL - PaketShop
Kostenloser Versand
Versand mit DHL zur Adresse
Kostenloser Versand
Versand mit GLS - PaketShop
Kostenloser Versand
Versand mit GLS zur Adresse
Kostenloser Versand
Alle Versandoptionen anzeigen (4)
EUR
4.172,35
ex. MwSt. 3.506,18
Gesamtbetrag inkl. Versand.
4.172,35
Die Funktion setzt voraus, dass Sie angemeldet sind. Erstellen Sie einen Nutzer und verwenden Sie unser intelligentes Listensystem, um zukünftige Einkäufe, regelmäßige Einkäufe oder Wunschlisten zu verfolgen.
Jetzt registrieren
Anmelden
Jetzt registrieren
Anmelden
Send på mail
openGear is an open-architecture, modular frame system designed by Ross Video and supported by a diverse range of terminal equipment manufacturers, including AJA.

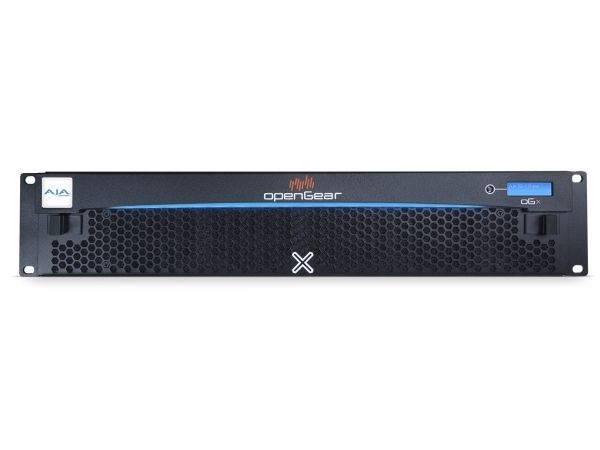

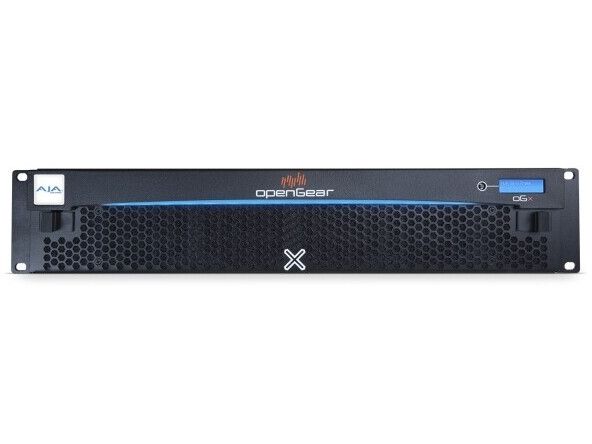

The AJA OG-X-FR is a 2RU high openGear frame which is compatible with any openGear card and offers Dashboard support for the latest AJA Dashboard compatible openGear cards. The frame has a 20-slot capacity with excellent cooling capabilities for high-density applications and compatibility with advanced openGear connectivity options for supported cards.
Smart Control
One control system unites all openGear suppliers: DashBoard for setup, real-time control, monitoring, and tools for creating customized workflow through CustomPanels. The optional Advanced Networking controller from ROSS features DataSafe, which automatically saves and restores settings if a module is swapped.
Cooling
While many of AJA's openGear cards are energy-efficient, the high-density nature of rackmount cards can generate heat in a small space. Integrated fans in the OG-X-FR keep internal components operating at acceptable temperatures, leading to improved reliability and longer card life.
OG-X-FR offers more power and cooling for the most demanding UltraHD, 12G SDI & IP workloads.
Smart Power
OG-X-FR accommodates 2 front-loaded, hot-swappable power supplies. Each power supply contains an independent cooling fan, status LED, and a front mounted power switch.
- Total system power of 600W
- New high power mode allowing 23W per slot
OG-X-FR ships with a power supply included. When seeking redundancy for extra security in critical environments, order an additional OG-X-PS from your reseller.
Easy Access
A fold-down front panel provides you quick access to any of the installed cards for easy maintenance or replacement without having to remove the rack frame or climb behind the rack.
openGear Compatibility
The openGear standard ensures that AJA cards will be compatible with other openGear products from certified openGear partners. With a growing list of products, openGear is the future of rackframe products.
Flexible I/O
The modular rear panel allows custom I/O connections per card (included with individual cards).
Failsafe
The optional redundant power supply provides a secondary power source in the event of a primary power failure.
Ethernet Access
A standard Ethernet connection allows the frame to be accessed via the Dashboard application for overall frame communication. Optional per-card Ethernet access can be installed in the frame for advanced communication with compatible openGear cards.
