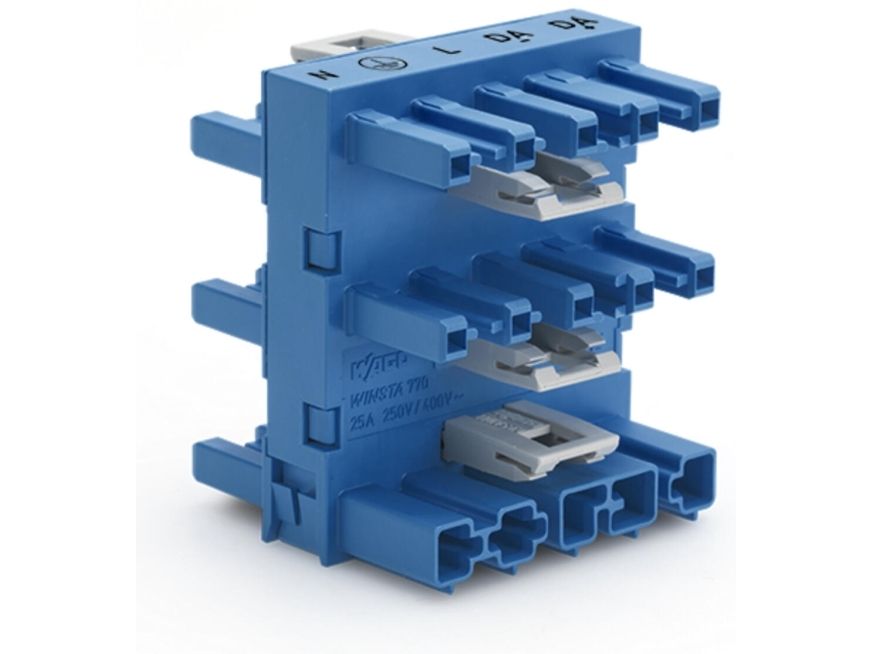

HH-Block 5-polig, 1x Stift/5x Buchse, blau

Distribution connector WINSTA MIDI rated current 25 A The WINSTA MIDI distribution connector with protection type IP20 supports fast, reliable installation. The pluggable installation connectors with spring pressure connection technology work entirely without screw connections. They allow resource-efficient, error-free installation in numerous possible uses. For greater protection in electrical installations, the pluggable installation connector is provided with mechanical protection against mismating. The pluggable installation connector offers protection against contact with live components in accordance with protection type IP20 (When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!)). I coding in blue is used to mark WINSTA MIDI pluggable installation connectors, which are used primarily in building automation for controlling lighting. The rated current and voltage are important criteria for selecting a pluggable installation connector: They provide information about possible domains of use and applications. This product has a current rating of 25 A – therefore it is suitable for robust loads. The WINSTA MIDI Pluggable Connection System with Push-in CAGE CLAMPspring pressure connection technology facilitates safe electrification. Thanks to the included test slot, connections can be checked even when they are plugged in. That saves time and reduces installation labor and expense. Lower costs through fast commissioning and elimination of service expenses – solutions from WINSTA MIDI The WINSTAPluggable Connection System allows pluggable electrical installation. This saves time, lowers costs, and reduces the need for servicing. Take advantage of the pluggable version of our maintenance-free spring pressure connection technology too! Plan your installation with with locking lever from WAGO. pluggable installation connectors with protection against mismating pre-assembled versions for lighting management ready for immediate use rapid, structured electrical installation
