Siemens 0-4 mVS, 10 m sitrans LH100 Druck-/Füllstandstransmitter

Artikelnummer: [5106460] | Produzent: Siemens | Modell nummer: 7MF1572-1DA10 | EAN: 5707157458993 | EL-nr.: 7889510688
Externen Lager (3-4 Werktage)
Das Produkt befindet sich in einem externen Lager. Die Lieferfrist: ca. 3-4 Werktage. Mehr Info
Versandoptionen  - Wird im Checkout ausgewählt
Versand mit DHL - PaketShop
Kostenloser Versand
Versand mit DHL zur Adresse
Kostenloser Versand
Versand mit GLS - PaketShop
Kostenloser Versand
Versand mit GLS zur Adresse
Kostenloser Versand
Alle Versandoptionen anzeigen (4)
EUR 684,66
ex. MwSt. 575,34
Gesamtbetrag inkl. Versand. 684,66
Lesen Sie weitere Spezifikationen und Beschreibung

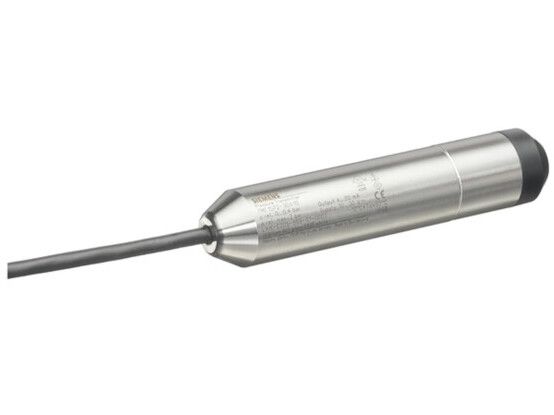

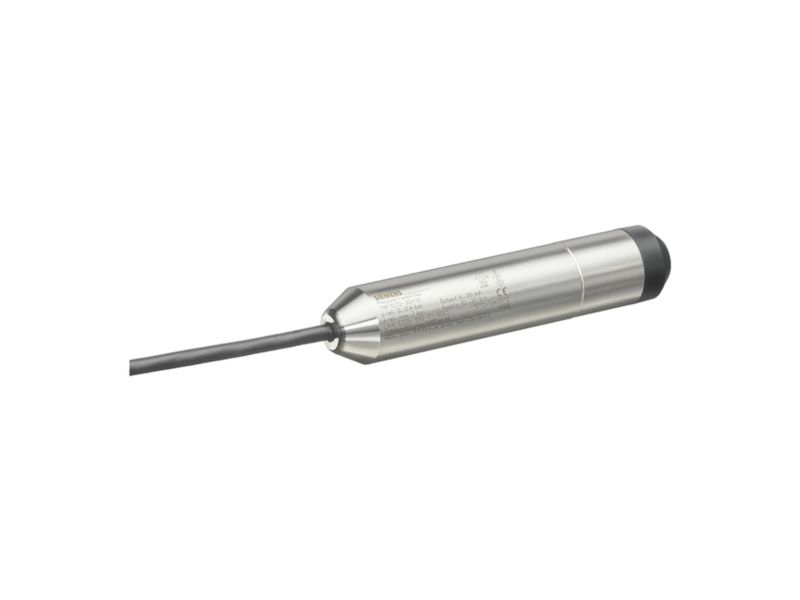

The siemens SITRANS transmitters pressure transmitter LH100 is a submersible sensor for hydrostatic level measurement. The pressure transmitter measures the liquid levels in tanks, containers, channels and dams. The pressure transmitter is available for various measuring ranges and optionally with explosion protection. A cable box and an anchor clamp are available as accessories to make installation easier. The pressure transmitter is used, for example, in the following industrial areas such as water supply and for use in pressureless/open tanks and wells.
It has a built-in ceramic sensor which is equipped with a Wheatstone resistance bridge
The pressure transmitter is equipped with electronics that is installed, together with the sensor
The measuring diaphragm is effectively protected against external influences by a protective cover
The sensor, the electronics and the connecting cable are housed in an enclosure
