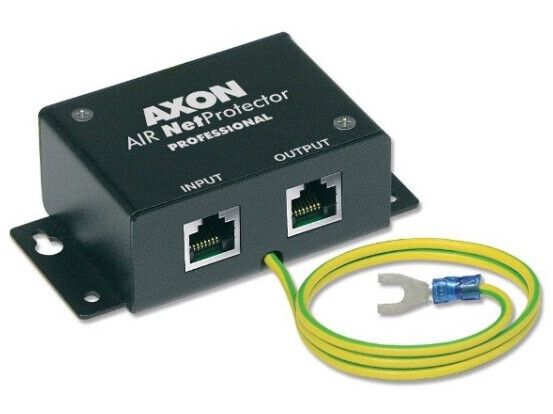

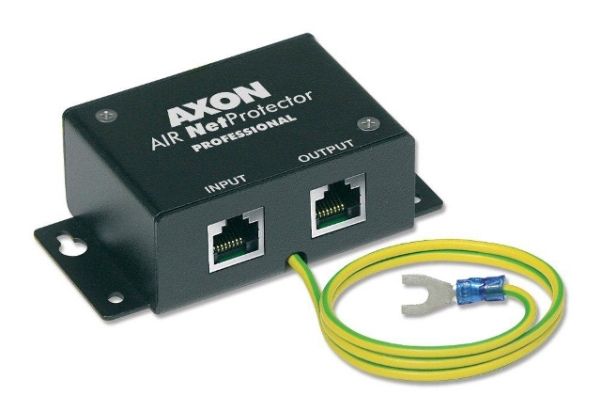

Axon AIR NET PROTECTOR PROFESSIONAL (AZP-AXONAIRPRO--5)

The AXON AIR Net Protector PROFESSIONAL is designed to protect the 10/100/1000 Mb/s Ethernet appliances against pulse surges. They can also be used to protect any kind of transmission using RJ45 connectors with operating voltage not exceeding Uc=150V. It has been designed as the first-stage protection for connections with a high risk of interferences of considerable energy. An example application of the device is the protection of overhead teletransmission lines. The high-strength protective elements secure each wire in the four-pair cable and discharge disturbances to the earth. The AXON AIR Net Protector PROFESSIONAL is a stronger version of the AXON AIR Net Protector. The metal housing provides increased resistance to any kind of mechanical damages and provides shielding of the entire protective circuit. The shields of RJ45 ports are interconnected and attached to the PE protective circuit. This ensures the continuity of the shielding circuit while using an STP shielded cable.
