CARLO GAVAZZI Multifunktions-Zeitschaltuhr, 1CO potentialfrei 5A, 250VAC, Spulenspannung 12-240V AC/DC, Einstellbereich 0,1sec.-100h., DIN
Artikelnummer: [6154246] | Produzent: CARLO GAVAZZI | Modell nummer: DMB51CW24 | EAN: 8030956002188 | UNSPSC.: 39122329 | EL-nr.: 9623017031
Externen Lager (3-4 Werktage)
Das Produkt befindet sich in einem externen Lager. Die Lieferfrist: ca. 3-4 Werktage. Mehr Info
Versandoptionen - Wird im Checkout ausgewählt
Versand mit DHL - PaketShop
3,57
Versand mit DHL zur Adresse
11,90
Versand mit GLS - PaketShop
9,16
Versand mit GLS zur Adresse
11,90
Alle Versandoptionen anzeigen (4)
EUR
84,70
ex. MwSt. 71,18
Gesamtbetrag inkl. Versand.
88,27
Die Funktion setzt voraus, dass Sie angemeldet sind. Erstellen Sie einen Nutzer und verwenden Sie unser intelligentes Listensystem, um zukünftige Einkäufe, regelmäßige Einkäufe oder Wunschlisten zu verfolgen.
Jetzt registrieren
Anmelden
Jetzt registrieren
Anmelden
Send på mail

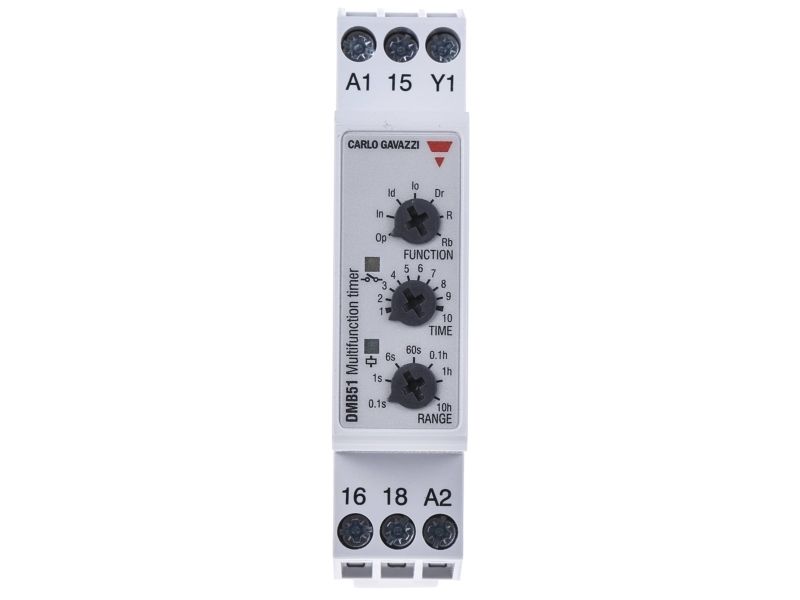

Carlo Gavazzi Multi-function Timer Relay
The Carlo Gavazzi multi-function timer relay is compact, electromechanical equipment with high precision. It performs the functions of providing selectable functions like delay on, delay on release, double interval, interval, interval on trigger open, asymmetrical recycler off, and symmetrical recycler on in the range of 0.1 seconds to 100 hours. This is easy to use and quick to configure. This provides a reliable timing solution that is suitable for back and front panel mounting. Its low cost and high performance make it ideal for a wide range of applications in process control environments.
Features and Benefits
7 selectable time ranges in the range of 0.1 seconds to 100 hours like 0.1 seconds to 1 second, 1 second to 10 seconds, 6 seconds to 60 seconds, 60 seconds to 600 seconds, 0.1 hours to 1 hour, 1 hour to 10 hours and 10 hours to 100 hours
Automatic and manual start options
7 selectable functions
2C/O SPDT contact configuration with relay output of 5A
For mounting on DIN rail
Repeatability of 0.2%
Supply voltage 12VDC and 24VAC to 240VAC
LED status indication available to provide details of relay status and power supply on
Supports PNP/NPN and Namur sensors
Setup made simple thanks to knob selection of time range and setting
Applications
Textiles
Chemical industries
Mining
Irrigation
Raw material handling
Food and beverages
Industrial process control
Certifications
IEC 60664
IEC 60038
EN 60529
IP20 rated
UL approved
RINA certified
CSA certified
CE certified
IEC EN 60947
EN 61000-6-2
EN 61000-6-3
