Modicon Switchmode Strømforsyning modular til DIN-skinne med 12 VDC 25 W-2,1 A udgang og 100-240 VAC
Artikelnummer: [6644760] | Produzent: SCHNEIDER ELECTRIC | Modell nummer: ABLM1A12021 | EAN: 3606481500144 | UNSPSC.: 39121004 | EL-nr.: 7586060499
Externen Lager (3-4 Werktage)
Das Produkt befindet sich in einem externen Lager. Die Lieferfrist: ca. 3-4 Werktage. Mehr Info
Versandoptionen - Wird im Checkout ausgewählt
Versand mit DHL - PaketShop
3,57
Versand mit DHL zur Adresse
11,90
Versand mit GLS - PaketShop
9,16
Versand mit GLS zur Adresse
11,90
Alle Versandoptionen anzeigen (4)
EUR
101,59
ex. MwSt. 85,37
Gesamtbetrag inkl. Versand.
105,16
Die Funktion setzt voraus, dass Sie angemeldet sind. Erstellen Sie einen Nutzer und verwenden Sie unser intelligentes Listensystem, um zukünftige Einkäufe, regelmäßige Einkäufe oder Wunschlisten zu verfolgen.
Jetzt registrieren
Anmelden
Jetzt registrieren
Anmelden
Send på mail

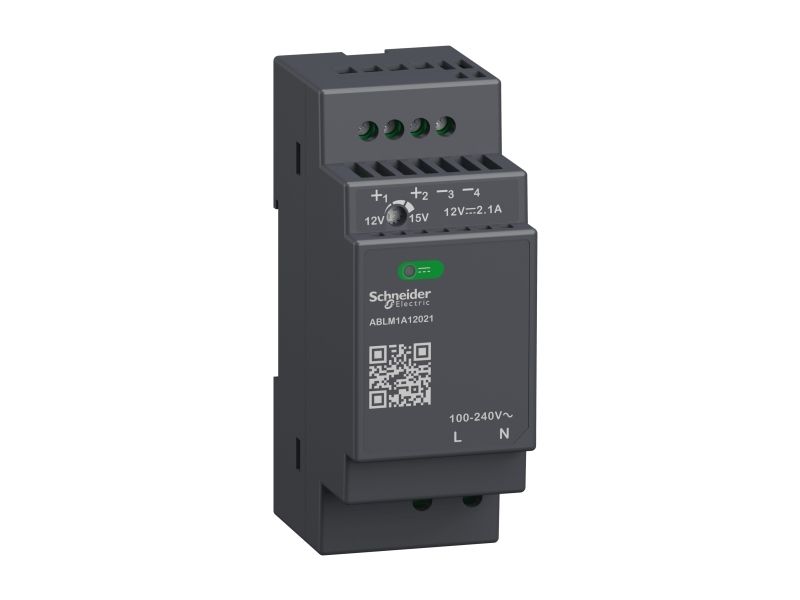

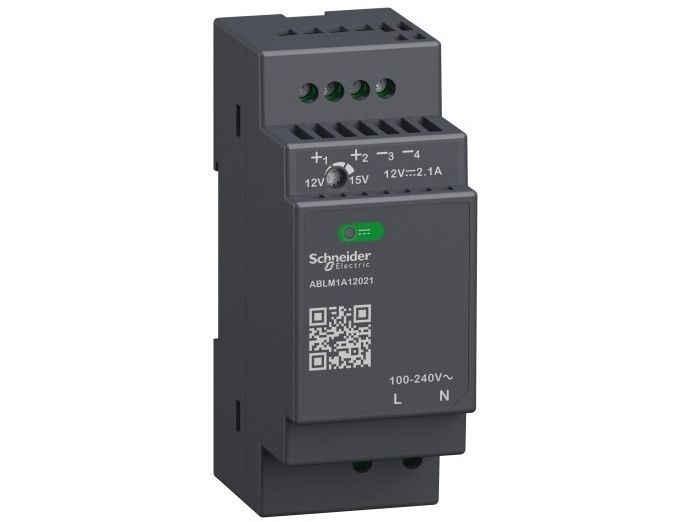

Schneider Electric ABLM1A12021
This ABLM regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 100V to 240V AC, a rated output current of 2,1A at 12V DC and a rated power output of 25W. It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water. It installs on omega rail or fixing by screw. Its width is 30mm, its height is 75mm, its depth is 92,8mm. It ensures a protection against overloads and short-circuits with automatic restart after the source of overload/short-circuit has been corrected. It weighs 0.170kg. It is a power supply for industrial use, rail mounting. It conforms to EN62368-1, ENIEC61010-1/2-201, ENIEC61204-3, EN61000-6-1/2/3/4, EN61000-3-2-3, UL62368-1, UL61010-2-201/-1-201, CSAC22.2No62368-1/No61010-2-201/No61010-1 standards, and certified by CE, CUL listed/recognized, RCM, CBscheme. The Acti9 iC60 range of Miniature Circuit Breakers is recommanded for its protection. The type of protection is 4A, B or C curve. It has in the front face a LED indicating presence of DC output voltage, and a QR code for access to the latest technical documentation. Thanks to their modular housing, they can be installed either in enclosures or industrial panels by clipping on omega (DIN) rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.
Features & Benefits
- Compatible with TT, TN and IT earthing systems for safety in all kinds of industrial networks
- 85% efficiency rating means it wastes little heat and doesn't need a heatsink to stay cool
- Suits wire sizes in range of 0.5 to 1.5mm?? (20 to 16AWG) for broad compatibility
Applications
- Mining and minerals processing
- Oil and gas industries
- Material handling
How do I mount this unit?
Thanks to its handy snap-on mechanism, you can mount the PSU to a 35mm DIN rail quickly and easily with no need for tools.
