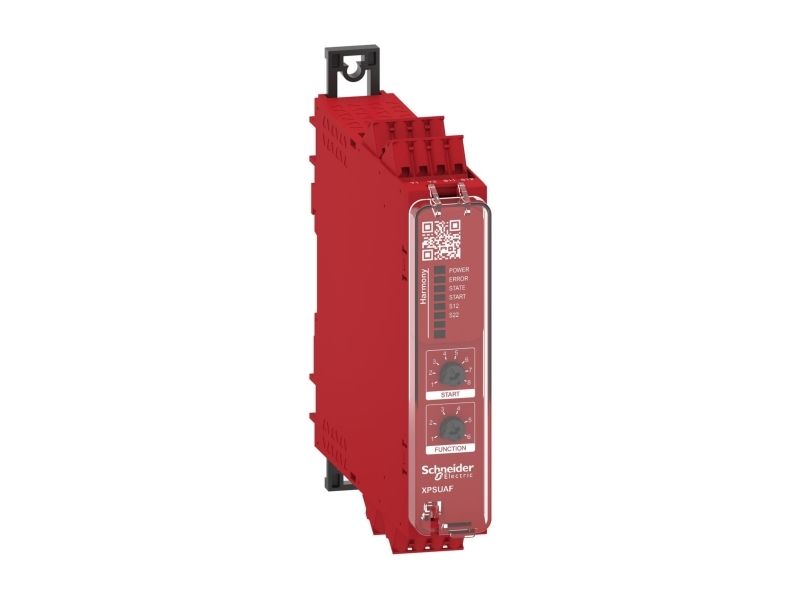

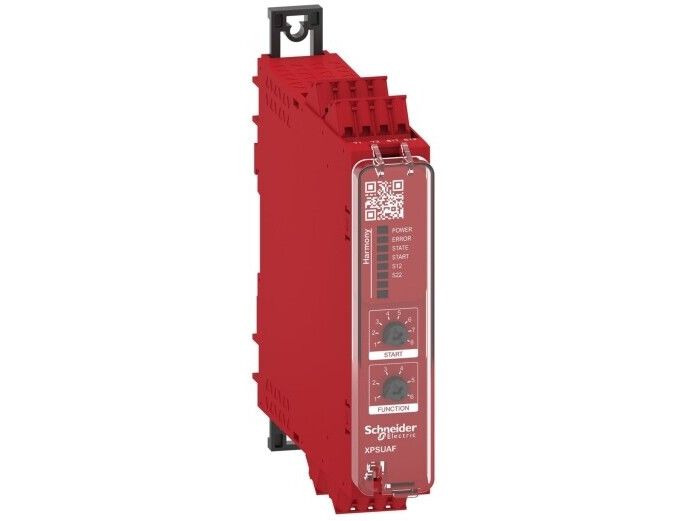

Sicherheitsrelais XPSUAF13AC Schneider Electric Betriebsspannung (num): 24 V DC/AC 3 x Schutzschalter (B x H x T) 22,5 x 100 x 120 mm LED-Anzeige 1 St
Artikelnummer: [7021791] | Produzent: SCHNEIDER ELECTRIC | Modell nummer: XPSUAF13AC | EAN: 3606489601607 | UNSPSC.: 39122322 | EL-nr.: 7586058948
Externen Lager (3-4 Werktage)
Das Produkt befindet sich in einem externen Lager. Die Lieferfrist: ca. 3-4 Werktage. Mehr Info
Versandoptionen - Wird im Checkout ausgewählt
Versand mit DHL - PaketShop
Kostenloser Versand
Versand mit DHL zur Adresse
Kostenloser Versand
Versand mit GLS - PaketShop
Kostenloser Versand
Versand mit GLS zur Adresse
Kostenloser Versand
Alle Versandoptionen anzeigen (4)
EUR
196,02
ex. MwSt. 164,72
Gesamtbetrag inkl. Versand.
196,02
Die Funktion setzt voraus, dass Sie angemeldet sind. Erstellen Sie einen Nutzer und verwenden Sie unser intelligentes Listensystem, um zukünftige Einkäufe, regelmäßige Einkäufe oder Wunschlisten zu verfolgen.
Jetzt registrieren
Anmelden
Jetzt registrieren
Anmelden
Send på mail
Schneider Electric Preventa Range of Safety Relays - XPS Universal Range
The XPSUAF range of safety relay modules is used for providing protection for both the user and the machine through immediately stopping the dangerous movement when instructed to do so from the user or if there is the detection of a problem within the safety circuit. These types of safety relays are predominantly used for monitoring applications such as:
- Monitoring Emergency stop circuits
- Switches activated by protection devices
- Mechanical guard switches
- Magnetic switch with antivalent or 2 NC contacts
- Proximity safety switch with antivalent contacts
- PNP sensor
- RFID safety switch
- Type 4 light curtains
Features & Benefits
- The start function can be configured by selector switches on the front face
- A solid-state diagnostic output with complete status information facilitates maintenance
- To monitor a higher number of antivalent contacts using this safety module, the antivalent contacts can be connected with a NC in series and NO in parallel
- 6 LEDs on the front face provide information on the monitoring circuit status
- 16 terminals with a safe expansion connection
- Removable terminal blocks for the connection type
- Automatic, manual and monitored starts
- 2 safety inputs with 3 NO outputs
- The control outputs are 3NO/OFF - configurable pulsed outputs
Schneider Electric Preventa Safety Module - XPSUAF13AC
- Safety levels for the relay include: Can reach PL e/category 4 conforming to ISO 13849-1 Can reach SILCL 3 conforming to IEC 62061 Can reach SIL 3 conforming to IEC 61508
- NC pair, PNP pair, Antivalent pair and OSSD pair electrical circuit type
- Forms part of the preventa safety automation range of products
- This relay has a rated supply voltage of 24 V AC - 15...10 %
- The device has an internal and electronic input protection type
- Maximum response time on input open: 20ms
- Mounting support: 35mm symmetrical DIN rail
- Rated insulation voltage: 250
