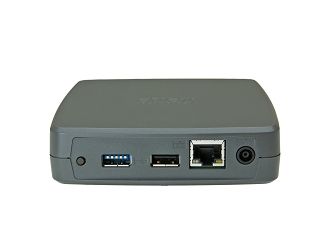

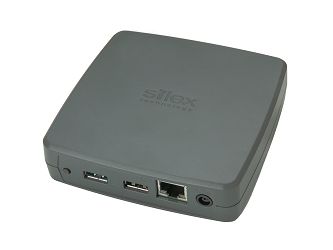

Silex DS-700 – Geräteserver – 1 GbE, USB 3.0, USB 2.0

The Silex DS-700 is designed to easily connect and share USB devices over a network. Printers, scanners, disk drives, card readers, or virtually any other USB device can be now be enabled with network capability. It allows flexibility to place the USB device anywhere on the network instead of needing to be attached directly to the computer, and multiple users can access the USB device.

Equipment Sharing from Two Different Networks
Office equipment deployed in a network now can join another network keeping two networks still isolated. The DS-700 can convert a USB device port of the equipment to the network port.

High Data Bandwidth
The DS-700 USB 3 SuperSpeed port provides higher bandwidth over gigabit Ethernet LAN than the legacy USB 2.0 device server. Data transfer from USB devices will complete much faster than ever.

Various Device Support
Isochronous transfer support
USB devices such as a USB web camera and USB speaker, which use the isochronous transfer, can be connected over the network.

Standard TCP/IP Printing (LPR/RAW) support
The DS-700 functions as the print server when a printer is connected. The print server supports Raw printing mode and LPR, which are popular network printing protocols.

SX Virtual Link
SX Virtual Link is a software to access USB devices attached to the USB device server over the network. The software allows users to request other users to release the shared USB device when they want to use.

Easy Configuration for Quick Installation
The configuration of the DS-700 is easy and quick through "Device Server Setup" utility, an integrated configuration web page, or AMC Manager.
