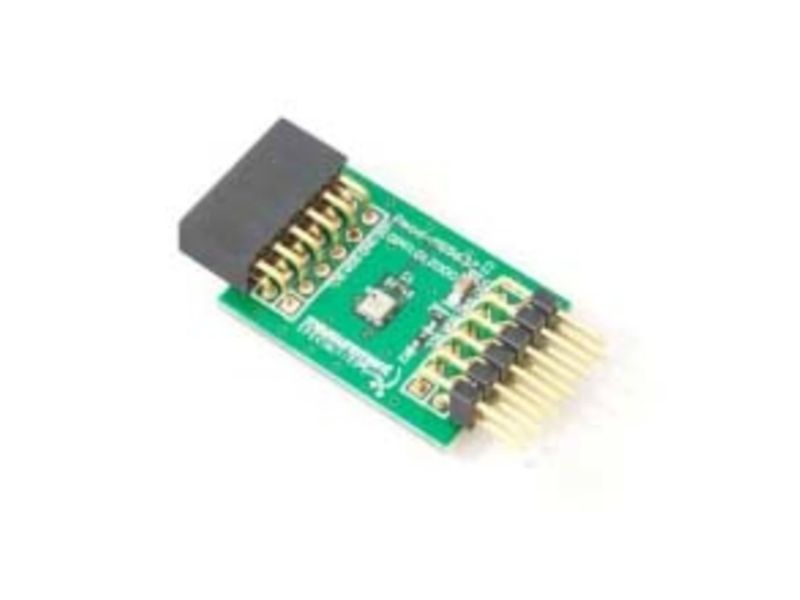

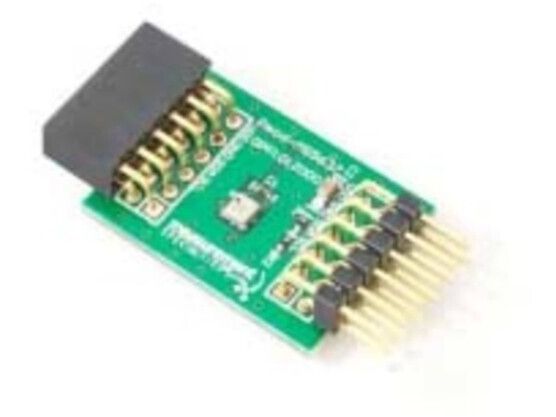

TE Connectivity MS5637 Barometric Pressure Sensor, Temperature & Humidity Sensor Add On Board Digilent Pmod

The MS5637 peripheral module provides the necessary hardware to interface the MS5637 digital barometric pressure and temperature sensor to any system that utilizes Pmod compatible expansion ports configurable for I2C communication. The MS5637 sensor is a self-contained pressure and temperature sensor that is fully calibrated during manufacture. The sensor can operate from 1.5V to 3.6V. The sensor module includes a high-linearity pressure sensor and an ultra-low power 24 bit _?? ADC with internal factory-calibrated coefficients.
Measures pressure from 300mbar to 1200mbar
Measures temperature from -40?°C to 125?°C
I??C communication
Fully calibrated
Fast response time
Very low power consumption
4-pin Grove compatible connector
I??C interface
Parameters stored on chip
300 to 1200mbar pressure range
-40?°C to 85?°C temperature range
Very low power consumption
Operates 5V
Altitude resolution at sea level is 20 cm of air
Fast conversion time 0.5ms typical
