TE Connectivity HTU21 Temperature & Humidity Sensor Add On Board Digilent Pmod

Artikelnummer: [7776289] | Produzent: TE Connectivity | Modell nummer: DPP301Z000 | EAN: 2050007038481
Externen Lager (7-9 Werktage)
Das Produkt befindet sich in einem externen Lager. Die Lieferfrist: ca. 7-9 Werktage.. Mehr Info
Versandoptionen  - Wird im Checkout ausgewählt
Versand mit DHL - PaketShop
Kostenloser Versand
Versand mit DHL zur Adresse
Kostenloser Versand
Versand mit GLS - PaketShop
Kostenloser Versand
Versand mit GLS zur Adresse
Kostenloser Versand
Alle Versandoptionen anzeigen (4)
EUR 2.903,68
ex. MwSt. 2.440,07
Gesamtbetrag inkl. Versand. 2.903,68
Lesen Sie weitere Spezifikationen und Beschreibung

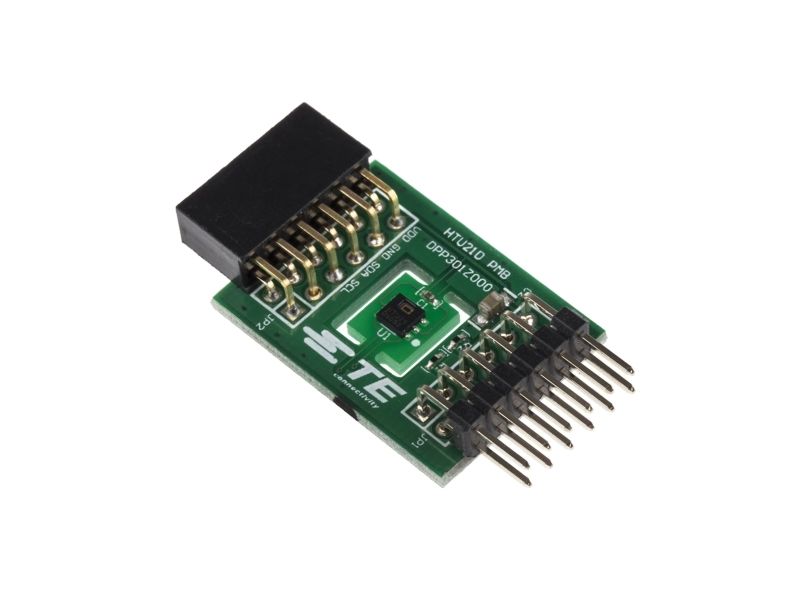

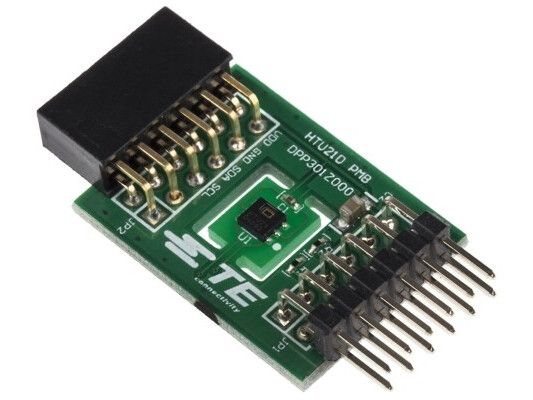

The HTU21D peripheral module provides the necessary hardware to interface the HTU21D digital relative humidity and temperature sensor to any system that utilizes Pmod compatible expansion ports configurable for I2C communication. The HTU21D sensor is a selfcontained humidity and temperature sensor that is fully calibrated during manufacture. The sensor can operate from 1.5V to 3.6V, has selectable resolution, low battery detect, and checksum capability. The HTU21D has a low power standby mode for power sensitive applications.
Measures relative humidity from 0 to 100
Measures temperature from 40?°C to 125?°C
I2C communication
Fully calibrated
Fast response time
Selectable resolution
Very low power consumption
12pin Pmod compatible connector
I2C interface
Secondary 12pin connector allows daisy chain
FPGA fabric available for download
4C C code available for download
Selectable 812 bit resolution for humidity
Selectable 1114 bit resolution for temperature
Electronic ID code stored on chip
