TE Connectivity Temperature & Humidity Sensor, Digital Output, Surface Mount, I2C, ?±5%, 6 Pins

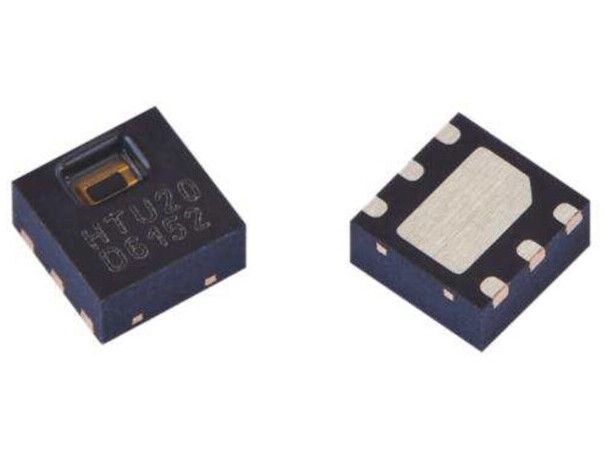

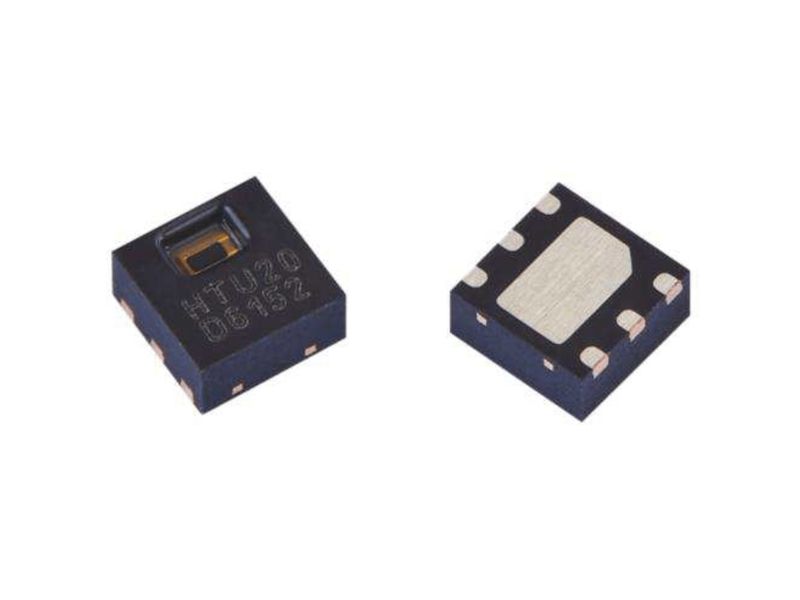

The TE Connectivity HTU20D(F), is a new digital humidity sensor with temperature output of MEAS. Setting new standards in terms of size and intelligence, it is embedded in a reflow solderable Dual Flat No leads (DFN) package with a small 3 x 3 x 0.9 mm foot print. This sensor provides calibrated, linearized signals in digital, I??C format. HTU20D(F) digital humidity sensors are dedicated humidity and temperature plug and play transducers for OEM applications where reliable and accurate measurements are needed. Direct interface with a micro-controller is made possible with the module for humidity and temperature digital outputs.
Full interchangeability with no calibration
required in standard conditions
Instantaneous desaturation after long periods in
saturation phase
Compatible with automatized assembly
processes, including Pb free and reflow
processes
Individual marking for compliance to stringent
traceability requirements
