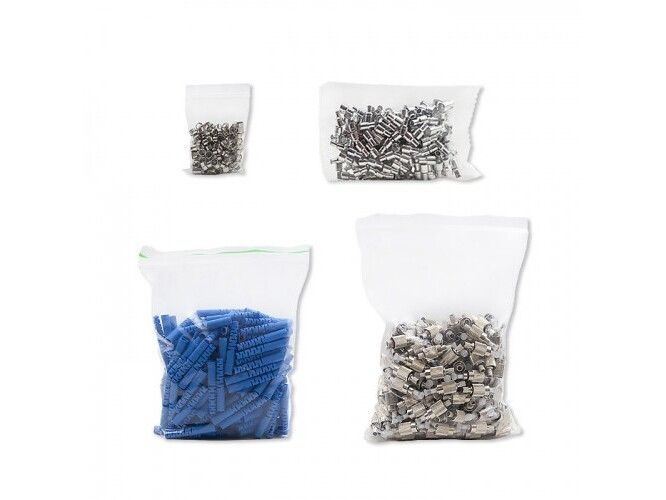

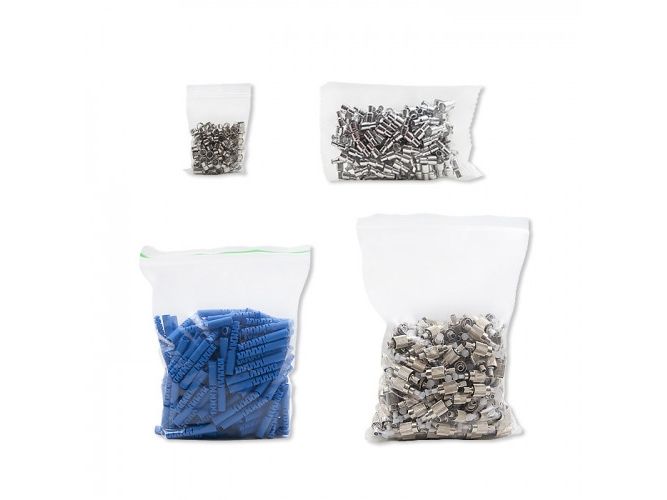

Qoltec 54453, FC/PC, Blau, Silber, Einzelmodus, 200 Stück(e), 1,04 kg, Polybag
Artikelnummer: [7864473] | Produzent: Qoltec | Modell nummer: 54453 | EAN: 5901878544533
Externen Lager (7-9 Werktage)
Das Produkt befindet sich in einem externen Lager. Die Lieferfrist: ca. 7-9 Werktage.. Mehr Info
Versandoptionen - Wird im Checkout ausgewählt
Versand mit DHL - PaketShop
3,57
Versand mit DHL zur Adresse
11,90
Versand mit GLS - PaketShop
9,16
Versand mit GLS zur Adresse
11,90
Alle Versandoptionen anzeigen (4)
EUR
120,18
ex. MwSt. 100,99
Gesamtbetrag inkl. Versand.
123,75
Die Funktion setzt voraus, dass Sie angemeldet sind. Erstellen Sie einen Nutzer und verwenden Sie unser intelligentes Listensystem, um zukünftige Einkäufe, regelmäßige Einkäufe oder Wunschlisten zu verfolgen.
Jetzt registrieren
Anmelden
Jetzt registrieren
Anmelden
Send på mail
FIBER OPTIC CONNECTOR
Fiber optic connectors are designed to connect optical fibers. They allow to switch and connect optical lines. Thanks to the highest quality optical connectors the lowest attenuation is guaranteed. Each connector is different, depending on the type of optical fiber and the size and polishing method of the ferrule. Ferrula is a tube, which is made of ceramic sinter and it is a cover and guide for optical fiber in connector.

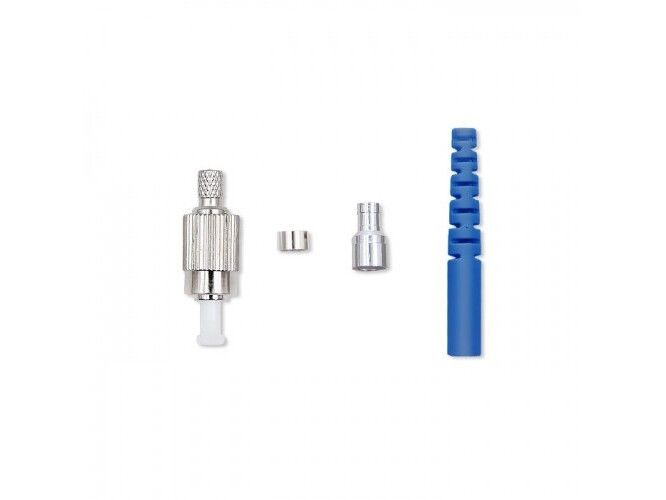

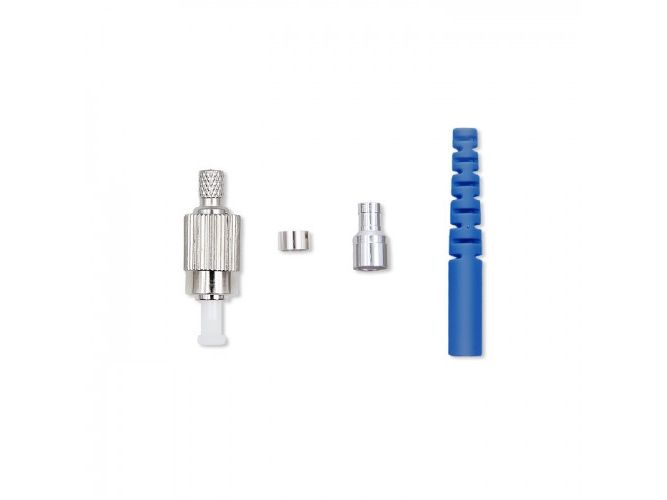

FC/PC CONNECTORS
They have been designed for telecommunication applications where uniform connection is required, this is possible due to threaded body. The screwed way of connecting two FC type connectors gives very stable connection, which does not lose its parameters under the influence of touch or handling. Used for single mode and multimode transmission. Currently, reflective technique of PC contact with fiber front surfaces allows to obtain the lowest possible loss on optical connector, at the same time maintaining high level of back reflection. In this type of connectors, back loss is no less than 40 dB. Maintaining such parameters requires high precision of the fiber front, its polishing and maintaining proper curvature of ferrule surrounding the fiber.
