Molex Molex MOL Micro Solutions Antenne 1 stk Tray
Artikelnummer: [7870077] | Produzent: Molex | Modell nummer: 105263-0001 | EAN: 2050007323150
Externen Lager (5-6 Werktage)
Das Produkt befindet sich in einem externen Lager. Die Lieferfrist: ca. 5-6 Werktage. Mehr Info
Versandoptionen - Wird im Checkout ausgewählt
Versand mit DHL - PaketShop
3,57
Versand mit DHL zur Adresse
7,60
Versand mit GLS - PaketShop
9,16
Versand mit GLS zur Adresse
11,90
Alle Versandoptionen anzeigen (4)
EUR
8,72
ex. MwSt. 7,33
Gesamtbetrag inkl. Versand.
12,29
Die Funktion setzt voraus, dass Sie angemeldet sind. Erstellen Sie einen Nutzer und verwenden Sie unser intelligentes Listensystem, um zukünftige Einkäufe, regelmäßige Einkäufe oder Wunschlisten zu verfolgen.
Jetzt registrieren
Anmelden
Jetzt registrieren
Anmelden
Send på mail

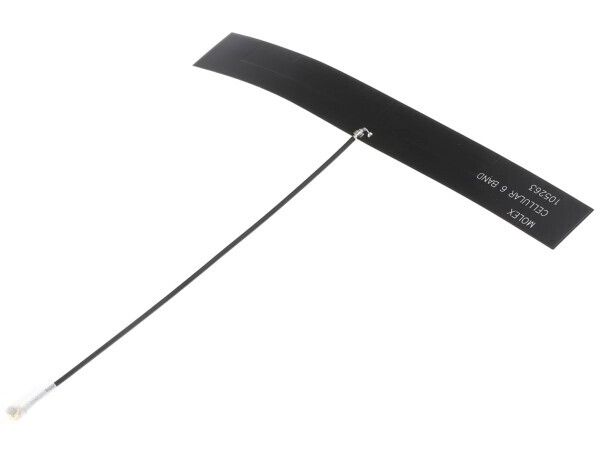

GSM Cellular 6-Band Standalone Antenna
The
Molex
6-band Standalone Antenna offers communication over a range of cellular bands such as
GSM850, GSM900, GSM1800, GSM1900, UMTS band-1
and
LTE band-7
. The antenna is used in a wide range of areas from medical to Industrial and a variety of wireless applications.
Molex
micro-coaxial cables come in lengths of 100mm (
105263-0001
), 150mm (
105263-0002
) and 200mm (
105263-0003)
.
It is extremely compact and the cellular antennas have reflection coefficient values that are better than -7dB over these bands. They also have radiation efficiencies of 80% at the low band GSM850, GSM900 and 70% at the high band GSM1800, GSM1900 and LTE band-7.
Pull force 18N
Ground plane independant
RoHS compliant and halogen free
Polarization: Linear
Input Impedance: 50 Ohms
Max PWR: 2 W / 33 dBm
Operating Temperature: -30 to +75°C
Easy to use
Poly-flexible adhesive tape on the underside of antenna
Mates with the Molex micro-coaxial SMT Jack (RS
702-5425
)

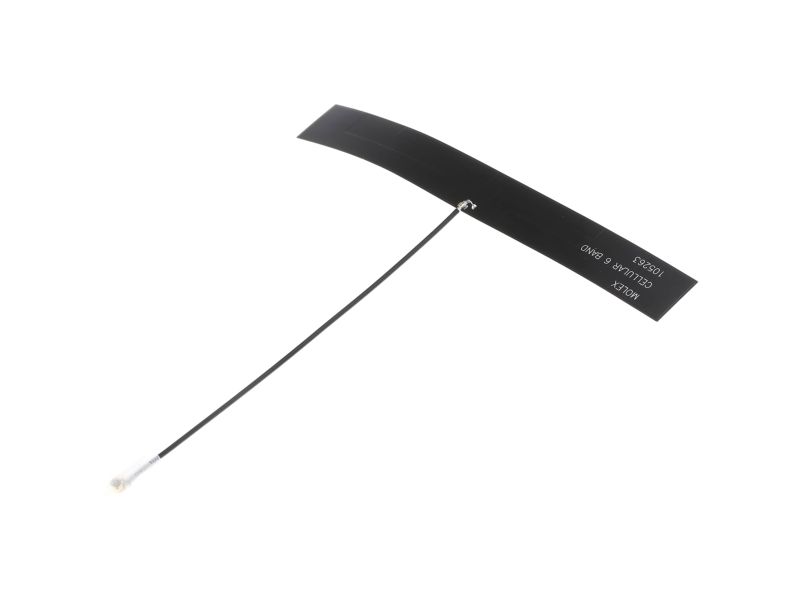

Molex Standalone Cellular Antenna, Square, Onmidirectional - 105263 Series - 105263-0001
Enjoy reliable wireless transmission and networking in your devices with this versatile Molex omnidirectional antenna. Its adhesive underside makes it simple to attach to the body of your equipment. It's suitable for use across six frequency bands with a total efficiency greater than -2.2 decibels, meaning you can use it for a range of applications with minimal signal loss. This antenna is compatible with most wireless devices as it works with 2G for GSM (global system for mobile communications) and GPRS (general packet radio services), 3G for UTMS (universal mobile telecommunications system) and 4G LTE (long-term evolution)
networks.
Light weight of 1.22g to reduce bulk and strain on your equipment
Flexible 100mm cable provides a connection in tight spaces
Broad operating temperature range of -30°C to +75°C for use in a variety of environments
Low-halogen to reduce the risk of toxic fumes in the event of a fire
Applications
Medical equipment
Industrial installations
Smart sensor devices
What is an omnidirectional antenna?
An omnidirectional cellular antenna enables 360°C reception of frequencies from all directions. This ensures optimal acceptance of signals in your device, resulting in better performance.
GSM (Global System for Mobile communications) Antennas
The
Molex
6-band Standalone Antenna offers communication over a range of cellular bands such as
GSM850, GSM900, GSM1800, GSM1900, UMTS band-1
and
LTE band-7
. The antenna is used in a wide range of areas from medical to Industrial and a variety of wireless applications.
Molex
micro-coaxial cables come in lengths of 100mm (
105263-0001
), 150mm (
105263-0002
) and 200mm (
105263-0003)
.
It is extremely compact and the cellular antennas have reflection coefficient values that are better than -7dB over these bands. They also have radiation efficiencies of 80% at the low band GSM850, GSM900 and 70% at the high band GSM1800, GSM1900 and LTE band-7.
Pull force 18N
Ground plane independant
RoHS compliant and halogen free
Polarization: Linear
Input Impedance: 50 Ohms
Max PWR: 2 W / 33 dBm
Operating Temperature: -30 to +75°C
Easy to use
Poly-flexible adhesive tape on the underside of antenna
Mates with the Molex micro-coaxial SMT Jack (RS
702-5425
)
Molex Standalone Cellular Antenna, Square, Onmidirectional - 105263 Series - 105263-0001
Enjoy reliable wireless transmission and networking in your devices with this versatile Molex omnidirectional antenna. Its adhesive underside makes it simple to attach to the body of your equipment. It's suitable for use across six frequency bands with a total efficiency greater than -2.2 decibels, meaning you can use it for a range of applications with minimal signal loss. This antenna is compatible with most wireless devices as it works with 2G for GSM (global system for mobile communications) and GPRS (general packet radio services), 3G for UTMS (universal mobile telecommunications system) and 4G LTE (long-term evolution)
networks.
Light weight of 1.22g to reduce bulk and strain on your equipment
Flexible 100mm cable provides a connection in tight spaces
Broad operating temperature range of -30°C to +75°C for use in a variety of environments
Low-halogen to reduce the risk of toxic fumes in the event of a fire
Applications
Medical equipment
Industrial installations
Smart sensor devices
What is an omnidirectional antenna?
An omnidirectional cellular antenna enables 360°C reception of frequencies from all directions. This ensures optimal acceptance of signals in your device, resulting in better performance.
