EK 3831109849682, Anpassung, Messing, Schwarz, 1/4", 20,8 mm, 1,65 cm
Artikelnummer: [8024649] | Produzent: Ekwater | EAN: 3831109849682
Externen Lager (7-9 Werktage)
Das Produkt befindet sich in einem externen Lager. Die Lieferfrist: ca. 7-9 Werktage.. Mehr Info
Versandoptionen - Wird im Checkout ausgewählt
Versand mit DHL - PaketShop
3,57
Versand mit DHL zur Adresse
11,90
Versand mit GLS - PaketShop
9,16
Versand mit GLS zur Adresse
11,90
Alle Versandoptionen anzeigen (4)
EUR
45,21
ex. MwSt. 37,99
Gesamtbetrag inkl. Versand.
48,78
Die Funktion setzt voraus, dass Sie angemeldet sind. Erstellen Sie einen Nutzer und verwenden Sie unser intelligentes Listensystem, um zukünftige Einkäufe, regelmäßige Einkäufe oder Wunschlisten zu verfolgen.
Jetzt registrieren
Anmelden
Jetzt registrieren
Anmelden
Send på mail

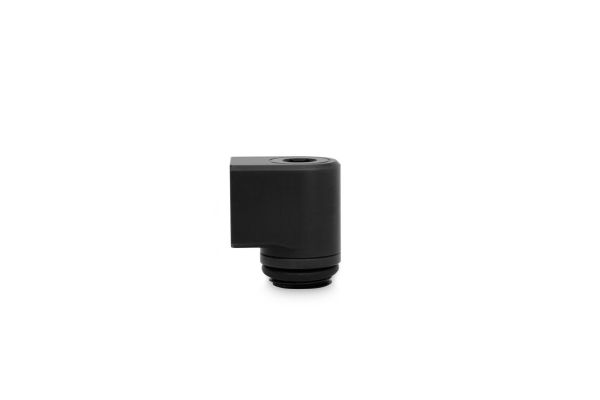

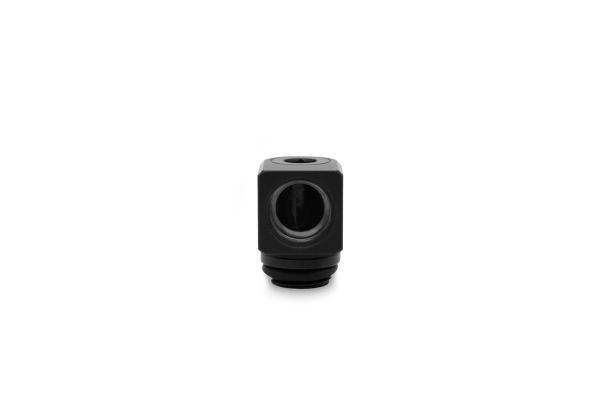

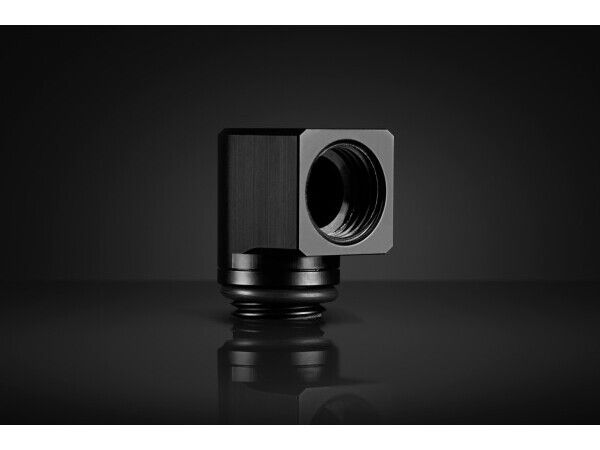

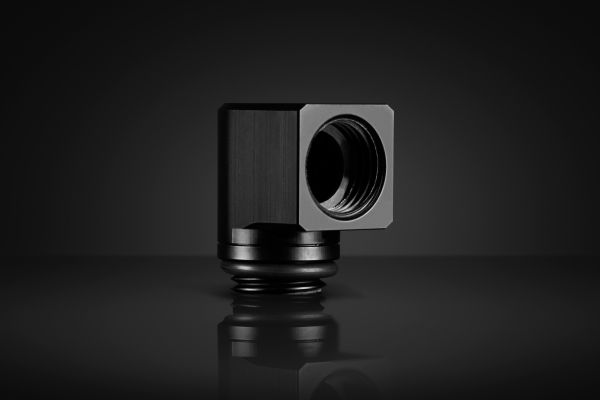

EK-Quantum Torque Micro Rotary adapter fittings allow you to make a simple 90° turn in the smallest possible footprint and installation height. With an overall installed height of just 21mm, Torque Micro Rotaries can squeeze into the most difficult places where it would be otherwise impossible to make a bend. This means it is 10mm lower in height than the standard 90° EK-Quantum Torque Rotary angled fitting.
This Quantum Line adapter fitting is CNC-machined from a solid brass bar and protected with a high-quality Satin Black finish. The two parts of the fitting are permanently assembled and sealed with high-quality rubber O-rings. Black EK-Quantum Torque series fittings are intentionally not painted on the inside to reduce the level of possible pollutants in the loop. This precision manufacturing ensures satisfying engagement and a consistent appearance.

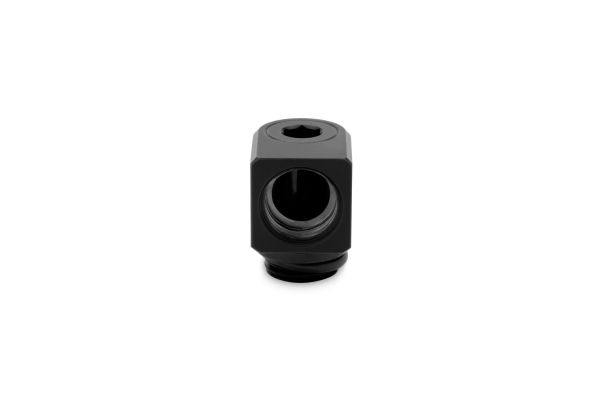

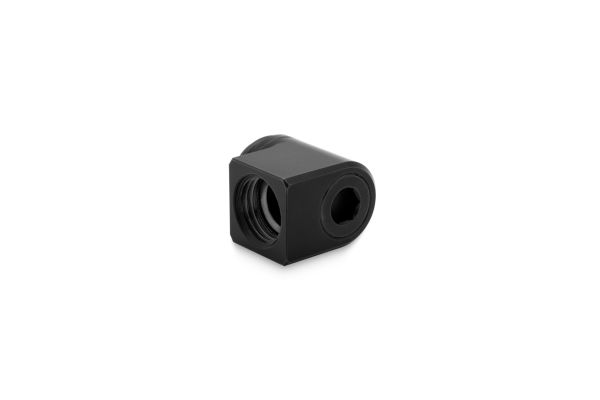

Since there is no space for conventional knurling, the base of the fitting extends through an opening in the top face where a 6mm Allen key has to be used to secure it in place. Once secured, the body of the fitting is free to rotate in either direction. EK recommends the use of the EK-Loop Multi Allen Key for this application.

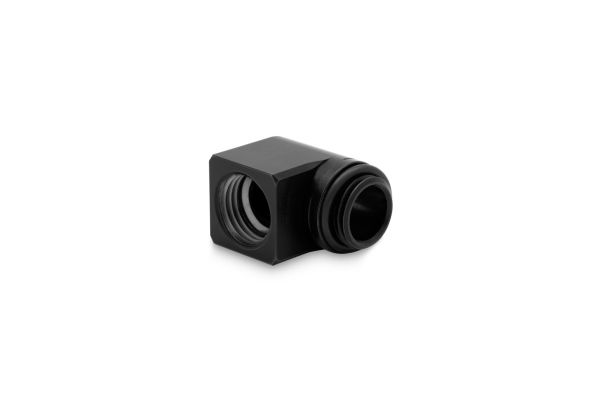

A male G1/4” thread is screwed into the desired port, and a fully rotatable joint allows the female G1/4” port to be directed in any perpendicular direction. You can install components in very close proximity thanks to this.
The centreline of the female G1/4" port is 12.5mm above the mounting surface, the EK-Quantum Torque Micro Rotary 90 rotary angled adapter is compatible with any STC or HDC EK-Quantum Torque fitting and EK-Quantum Torque Micro HDP fittings. The width and overall diameter of the base is 16.5mm.
This Quantum Line adapter fitting is CNC-machined from a solid brass bar and protected with a high-quality Satin Black finish. The two parts of the fitting are permanently assembled and sealed with high-quality rubber O-rings. Black EK-Quantum Torque series fittings are intentionally not painted on the inside to reduce the level of possible pollutants in the loop. This precision manufacturing ensures satisfying engagement and a consistent appearance.
Since there is no space for conventional knurling, the base of the fitting extends through an opening in the top face where a 6mm Allen key has to be used to secure it in place. Once secured, the body of the fitting is free to rotate in either direction. EK recommends the use of the EK-Loop Multi Allen Key for this application.
A male G1/4” thread is screwed into the desired port, and a fully rotatable joint allows the female G1/4” port to be directed in any perpendicular direction. You can install components in very close proximity thanks to this.
The centreline of the female G1/4" port is 12.5mm above the mounting surface, the EK-Quantum Torque Micro Rotary 90 rotary angled adapter is compatible with any STC or HDC EK-Quantum Torque fitting and EK-Quantum Torque Micro HDP fittings. The width and overall diameter of the base is 16.5mm.
