Satel PERFECTA-IP 32, Alarm-Bedienfeld, Sicherheitsalarmsystem, Satel, Grün, 12 V, 110 mA

The PERFECTA-IP alarm control panels are designed to protect small and medium-sized premises such as apartments, single-family houses, segments in terraced houses, offices, small businesses etc. They provide protection as required by EN 50131 for Grade 2. The control panels are characterized by simple configuration as well as easy and intuitive operation using keypads . The alarm system can also be controlled remotely using the PERFECTA CONTROL mobile application and keyfobs working in the 433 MHz frequency band (with the INT-RX-S module connected).

An Ethernet communicator is used in the PERFECTA-IP 32 model. It enables using a mobile application with PUSH notification capability, remote system configuration from the PERFECTA Soft program, and event reporting (e.g. to a security agency monitoring station).

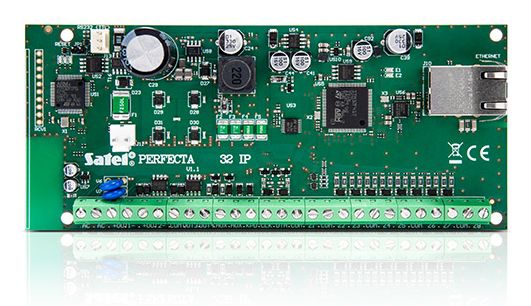

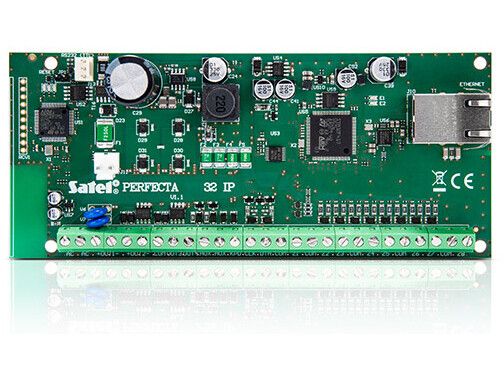

The control panel electronics board is provided with 8 hardwired zones and 4 hardwired outputs. Their number can be increased by connecting the INT-E zone expansion modules and INT-O or INT-ORS output expansion modules. This makes expansion of the system possible by adding more detectors, sirens or actuators (to control the garage door, roller shutters/blinds, garden sprinklers).

The control panel enables the system to be divided into two partitions with three arming modes (day, night, full) to select from. Each zone can be assigned to one or both supervised areas.

The system can be configured in two ways: from a computer with PERFECTA Soft program installed (locally - connection via RS-232 (TTL) port, remotely - using data transmission over Ethernet), as well as from a keypad, using key sequences in the service menu.
