Poynting Antennen 5GLTE KFZMarine AMIMO0003V215 schwarz SMA M RPSMA Adapter 1845dbi 4G5GGPSGLONASSWIFI DualBand MIMO 2
Artikelnummer: [8321803] | Produzent: Poynting | Modell nummer: A-MIMO-0003-V2-15-B | EAN: 6009710922101
Auf Lager
Sofort versandfertig, Lieferfrist: 2-3 Werktage - Vor 13:00 Uhr bestellen und wir versenden heute. Mehr Info
SONDERANGEBOT
Es gibt 1 auf Lager
Der aktuelle Preis gilt bis zum Abbau des lokalen Lagers
Versandoptionen - Wird im Checkout ausgewählt
Versand mit DHL - PaketShop
Kostenloser Versand
Versand mit DHL zur Adresse
Kostenloser Versand
Versand mit GLS - PaketShop
Kostenloser Versand
Versand mit GLS zur Adresse
Kostenloser Versand
Alle Versandoptionen anzeigen (4)
EUR
255,58
ex. MwSt. 214,77
Gesamtbetrag inkl. Versand.
255,58
Die Funktion setzt voraus, dass Sie angemeldet sind. Erstellen Sie einen Nutzer und verwenden Sie unser intelligentes Listensystem, um zukünftige Einkäufe, regelmäßige Einkäufe oder Wunschlisten zu verfolgen.
Jetzt registrieren
Anmelden
Jetzt registrieren
Anmelden
Send på mail

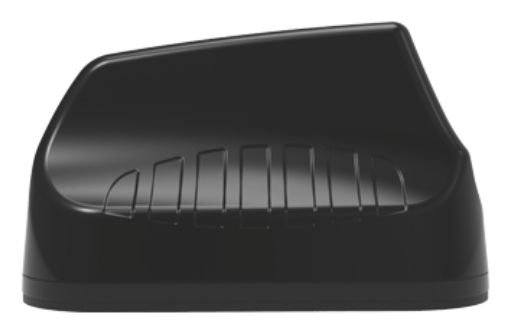

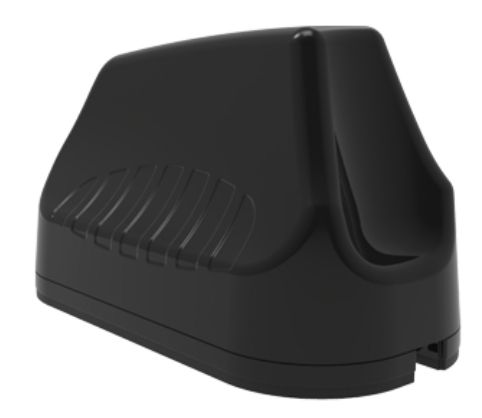

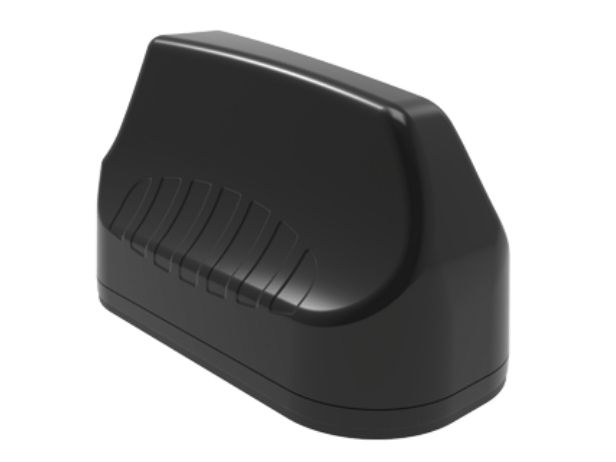

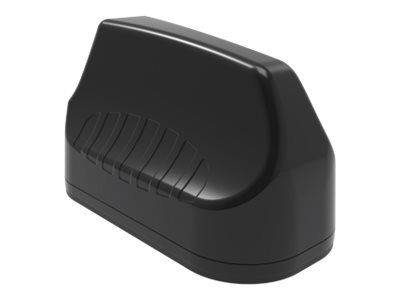

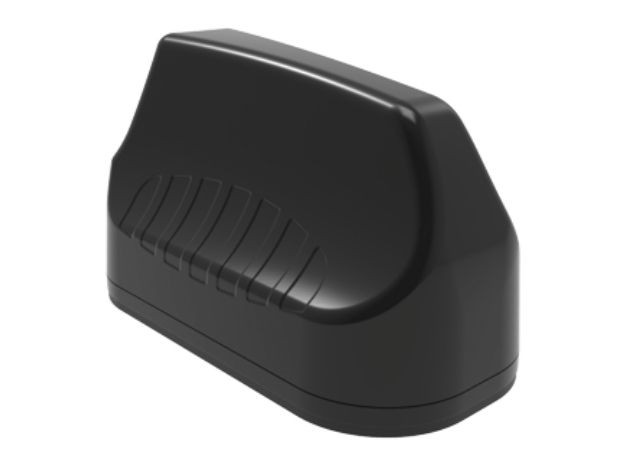

The MIMO-3-V2-15 consists of a 5-in-1 antenna system within a single housing, providing 2x Cellular, 2x Wi-Fi and a GPS/GLONASS. This antenna is specifically designed for the transportation and marine industry. The 2x Cellular MIMO antennas (for 2G/3G/4G) covers the contemporary 690MHz to 2700MHz bands, as well as the new emerging LTE and 5G spectrum for 450MHz and 3.5GHz CBRS bands, which is becoming popular across the various international cellular network operators for LTE. This antenna, due to its wide band capabilities, can be used across different operators and technologies and is ready for future cellular technologies such as 5G up to 3.8GHz.
The antenna provides two separate dual-band Wi-Fi antennas, providing concurrent 2.4GHz and 5GHz on each antenna with 2×2 MIMO capability. The fifth antenna is a high-performance active GPS/GLONASS system operating down to -40 degrees. The antenna exceeds the performance of most competitors due to the attention to the design of this high-performance antenna. The radiation patterns of all radiating elements provide an excellent balance between omnidirectionality, pattern diversity and good radiation abilities at the desired elevation, which is important for this type of antenna, especially for the transportation and marine market. Main applications are for commercial/industrial vehicles, marine, M2M and other IoT systems using a wide range of radio technologies, while remaining futureproof over the wide frequency band offered by this antenna.
Ideal Applications
Transport broadband and Wi-Fi distribution, automation and telemetry for buses, utility, trucks and public safety vehicles
Industrial factory automation, robotic machinery and other M2M systems telemetry
Farming & agricultural automation such as M2M & IoT
Broadband cellular to Wi-Fi distribution for marine / boats (inland and near coastal vessels)
Mining vehicles and machinery communications, telemetry and automation (M2M & IoT)
The antenna provides two separate dual-band Wi-Fi antennas, providing concurrent 2.4GHz and 5GHz on each antenna with 2×2 MIMO capability. The fifth antenna is a high-performance active GPS/GLONASS system operating down to -40 degrees. The antenna exceeds the performance of most competitors due to the attention to the design of this high-performance antenna. The radiation patterns of all radiating elements provide an excellent balance between omnidirectionality, pattern diversity and good radiation abilities at the desired elevation, which is important for this type of antenna, especially for the transportation and marine market. Main applications are for commercial/industrial vehicles, marine, M2M and other IoT systems using a wide range of radio technologies, while remaining futureproof over the wide frequency band offered by this antenna.
Ideal Applications
Transport broadband and Wi-Fi distribution, automation and telemetry for buses, utility, trucks and public safety vehicles
Industrial factory automation, robotic machinery and other M2M systems telemetry
Farming & agricultural automation such as M2M & IoT
Broadband cellular to Wi-Fi distribution for marine / boats (inland and near coastal vessels)
Mining vehicles and machinery communications, telemetry and automation (M2M & IoT)
