EK Water Blocks Mana LiteBlock MAG Torpedo Z690 D-RGB, Wasserblock + Kühlkörper, Transparent, LGA 1700, 1/4 Zoll, MAG Z690 TORPEDO, 110,5 mm
Artikelnummer: [8600948] | Produzent: Ekwater | EAN: 3831109897898
Auf Lager
Sofort versandfertig, Lieferfrist: 2-3 Werktage - Vor 13:00 Uhr bestellen und wir versenden heute. Mehr Info
SONDERANGEBOT
Es gibt 1 auf Lager
Der aktuelle Preis gilt bis zum Abbau des lokalen Lagers
Versandoptionen - Wird im Checkout ausgewählt
Versand mit DHL - PaketShop
3,57
Versand mit DHL zur Adresse
11,90
Versand mit GLS - PaketShop
9,16
Versand mit GLS zur Adresse
11,90
Alle Versandoptionen anzeigen (4)
EUR
116,99
ex. MwSt. 98,31
Gesamtbetrag inkl. Versand.
120,56
Die Funktion setzt voraus, dass Sie angemeldet sind. Erstellen Sie einen Nutzer und verwenden Sie unser intelligentes Listensystem, um zukünftige Einkäufe, regelmäßige Einkäufe oder Wunschlisten zu verfolgen.
Jetzt registrieren
Anmelden
Jetzt registrieren
Anmelden
Send på mail

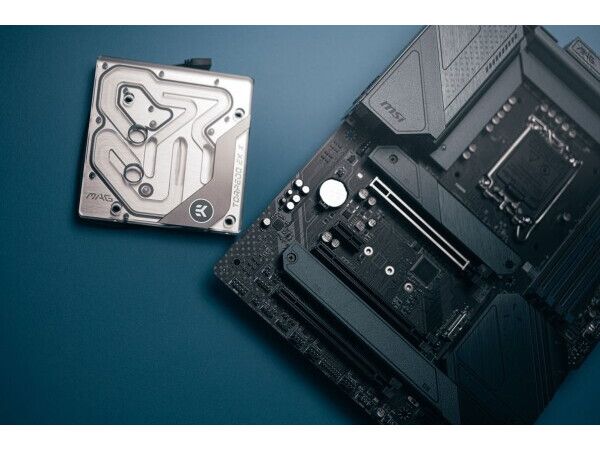

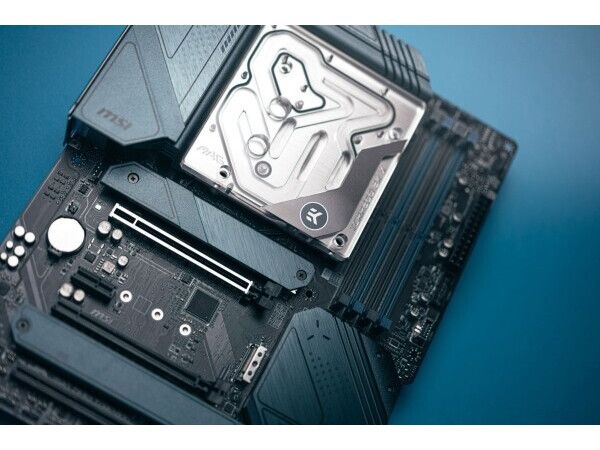

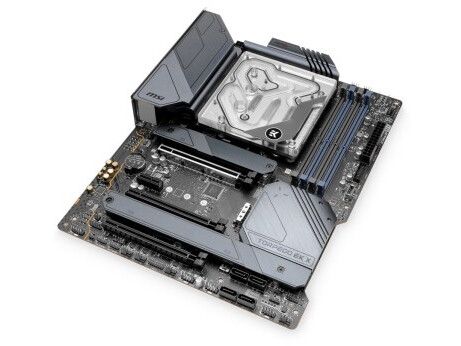

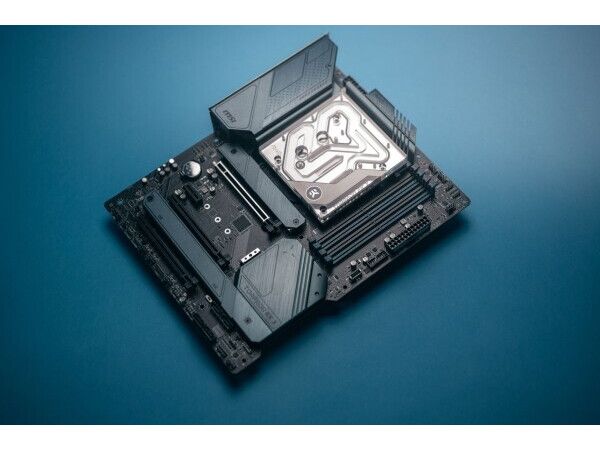

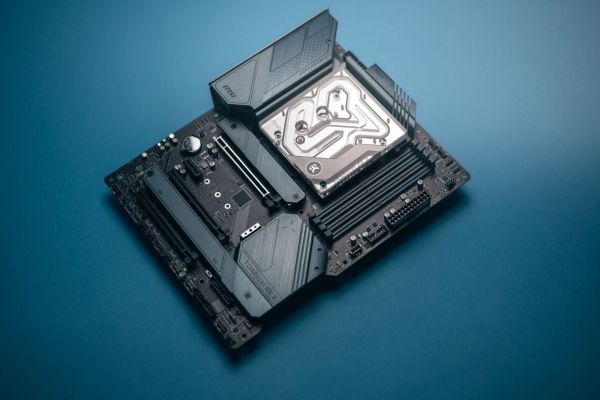

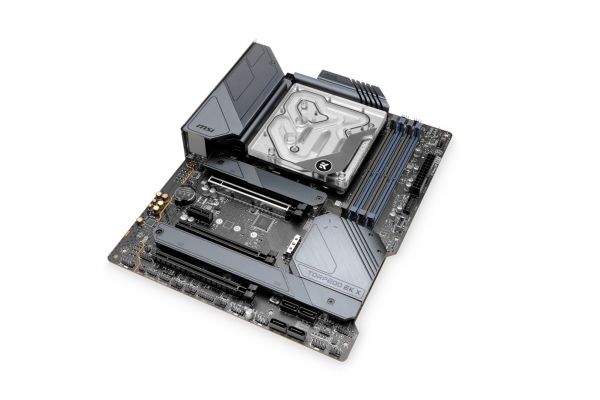

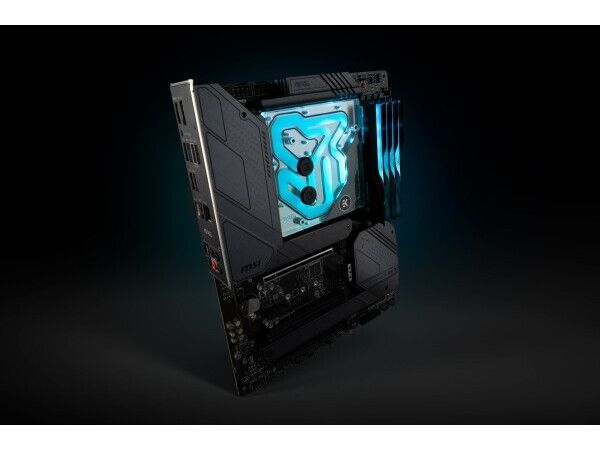

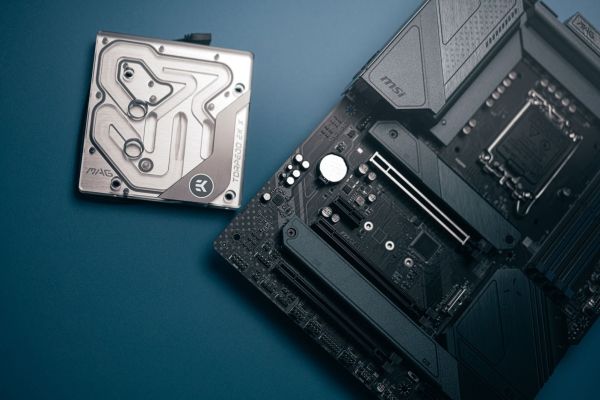

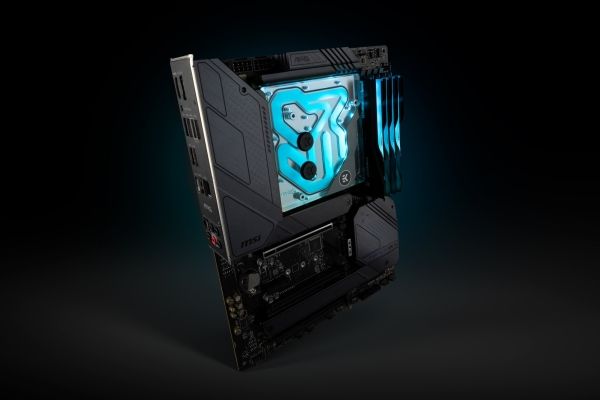

EK-Mana LiteBlock MAG Z690 Torpedo is a special LiteBlock from the EK-Mana line made specifically for MSI MAG Z690 TORPEDO motherboards that are based on the latest Z690 chipset and support Intel® 12th Gen Core™ CPUs. Featuring the latest generation Velocity² cooling engine with low restriction and high performance, this monoblock is equipped with a 3-pin D-RGB (addressable) LED strip and it offers unparalleled aesthetical customization alongside superior performance! The D-RGB LED in the monoblock is compatible with MSI Mystic Light which offers a full lighting customization experience.

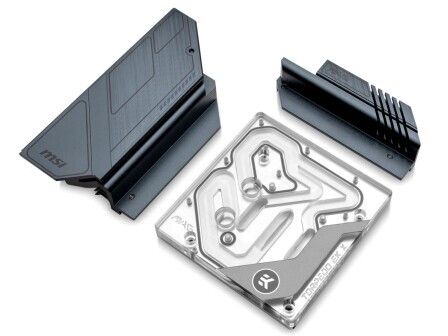

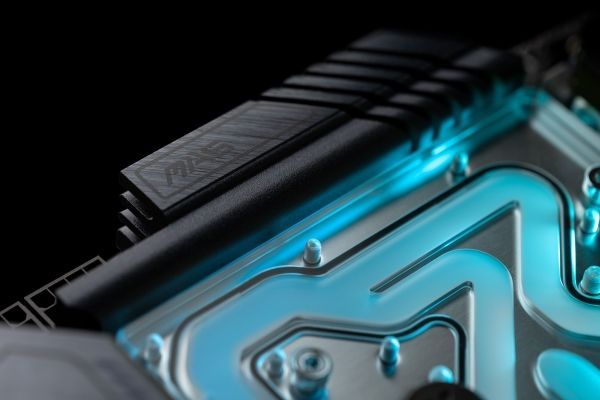

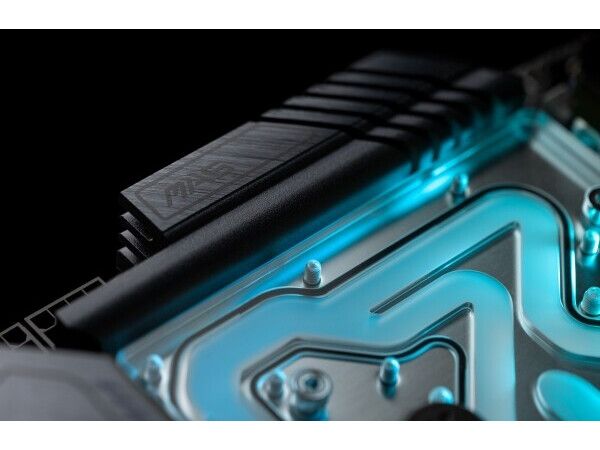

EK® series LiteBlocks utilize the new Velocity² water block cooling engine. This water block directly cools the Intel® 1700 socket-type CPU, as well as the heatsink of the power regulation (MOSFET) module. The monoblock replaces the stock heatsink with a special one that connects to the LiteBlock. They are connected via thermal pads in between them and LiteBlock effectively dissipates heat from the heatsink instead of the VRM directly.

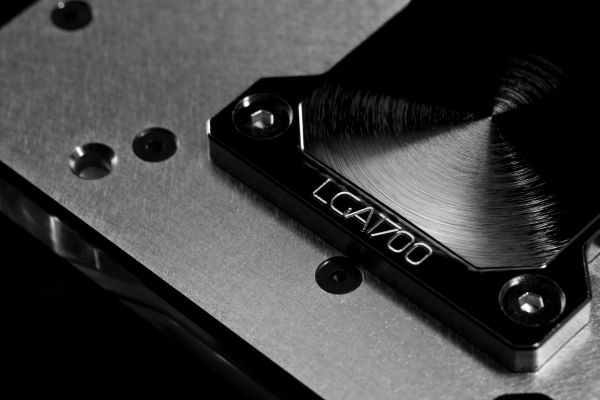

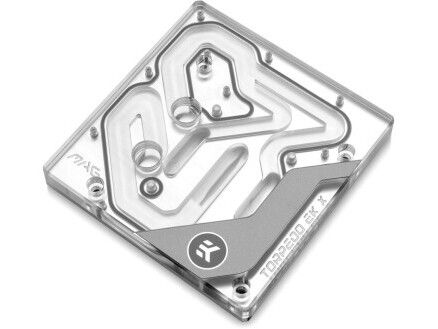

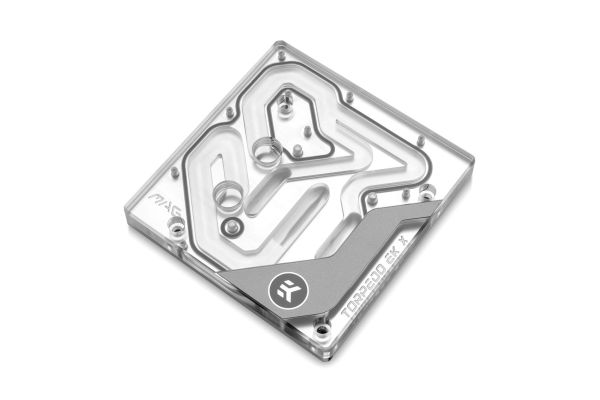

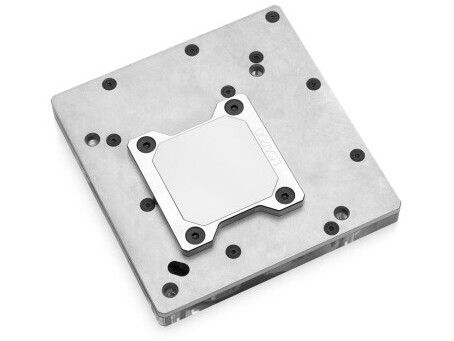

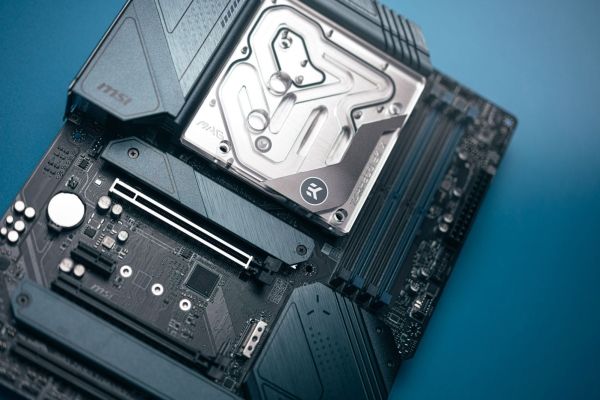

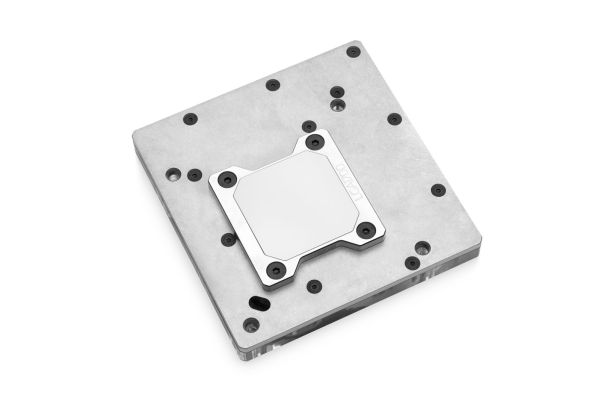

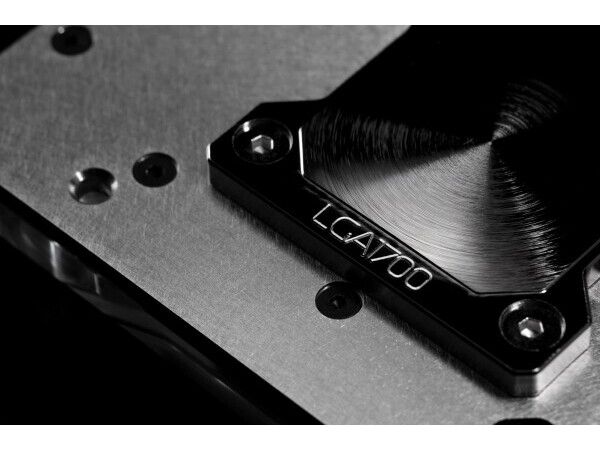

The base of the monoblock is made of nickel-plated electrolytic copper while its top is made of quality CNC-machined cast acrylic glass material. The nickel-plated brass screw-in standoffs are pre-installed and allow for easy installation.
EK-Matrix7 Compliant

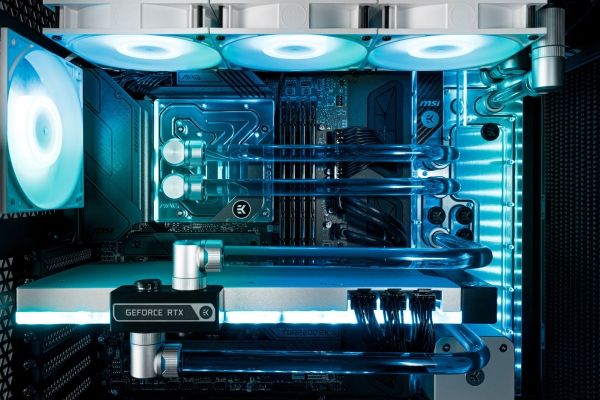

The water block follows the EK-Matrix7 standard, making it seamlessly integrate with upcoming 2nd generation Reflection distribution plates. EK-Matrix7 is adding a new dimension to PC liquid cooling, where the height of products and the distance between ports are managed by increments of 7mm. This means perfect alignment of ports, less time planning the loop, bending tubes, and the end result will still be an epic build.
Powerful VRM
The MSI MAG Z690 Torpedo features a powerful VRM with 16 smart power stages each rated for up to 70A of power. This will bring precise and stable current needed for high overclocks on your 12th generation Intel CPU. On the plus side, you get improved performance, on the downside extra generated heat. This is where the EK-LiteBlock kicks in and handles all the extra heat.
Rich D-RGB LED lighting

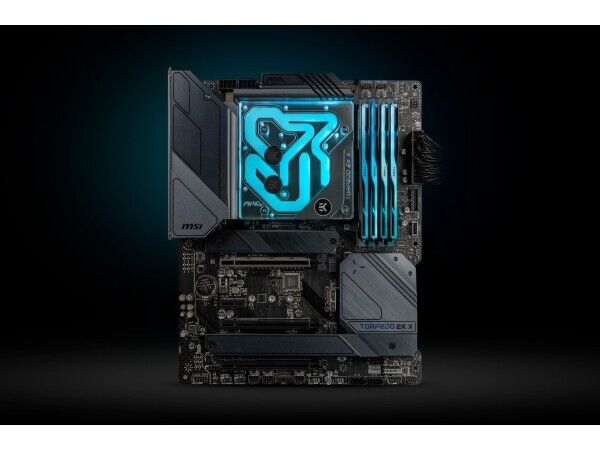

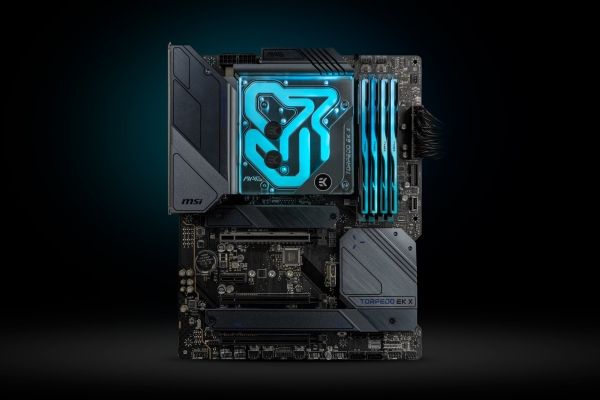

The EK-LiteBlock is already equipped with 3-pin 5V Addressable D-RGB LED strip which is compatible with the MSI MAG Z690 TORPEDO EK X D-RGB headers. This product is also compatible with D-RGB controllers that support the pinout: +5V, D, Blocked, Ground. The arrow marking on the 3-pin LED connector is to be aligned with the +5V marking on the D-RGB (Rainbow) header.
EK® series LiteBlocks utilize the new Velocity² water block cooling engine. This water block directly cools the Intel® 1700 socket-type CPU, as well as the heatsink of the power regulation (MOSFET) module. The monoblock replaces the stock heatsink with a special one that connects to the LiteBlock. They are connected via thermal pads in between them and LiteBlock effectively dissipates heat from the heatsink instead of the VRM directly.
The base of the monoblock is made of nickel-plated electrolytic copper while its top is made of quality CNC-machined cast acrylic glass material. The nickel-plated brass screw-in standoffs are pre-installed and allow for easy installation.
EK-Matrix7 Compliant
The water block follows the EK-Matrix7 standard, making it seamlessly integrate with upcoming 2nd generation Reflection distribution plates. EK-Matrix7 is adding a new dimension to PC liquid cooling, where the height of products and the distance between ports are managed by increments of 7mm. This means perfect alignment of ports, less time planning the loop, bending tubes, and the end result will still be an epic build.
Powerful VRM
The MSI MAG Z690 Torpedo features a powerful VRM with 16 smart power stages each rated for up to 70A of power. This will bring precise and stable current needed for high overclocks on your 12th generation Intel CPU. On the plus side, you get improved performance, on the downside extra generated heat. This is where the EK-LiteBlock kicks in and handles all the extra heat.
Rich D-RGB LED lighting
The EK-LiteBlock is already equipped with 3-pin 5V Addressable D-RGB LED strip which is compatible with the MSI MAG Z690 TORPEDO EK X D-RGB headers. This product is also compatible with D-RGB controllers that support the pinout: +5V, D, Blocked, Ground. The arrow marking on the 3-pin LED connector is to be aligned with the +5V marking on the D-RGB (Rainbow) header.
