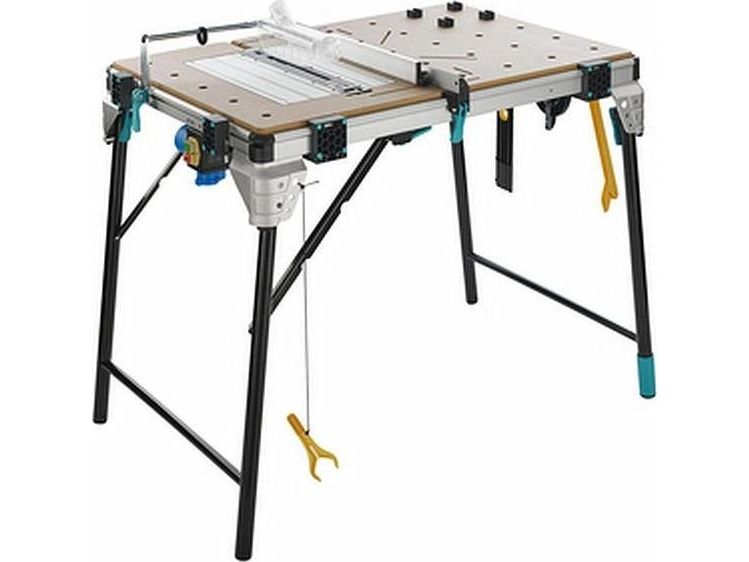

wolfcraft GmbH MASTER cut 2600, Aluminium, Stahl, Edelstahl, 120 kg, 1185 mm, 765 mm, 863 mm

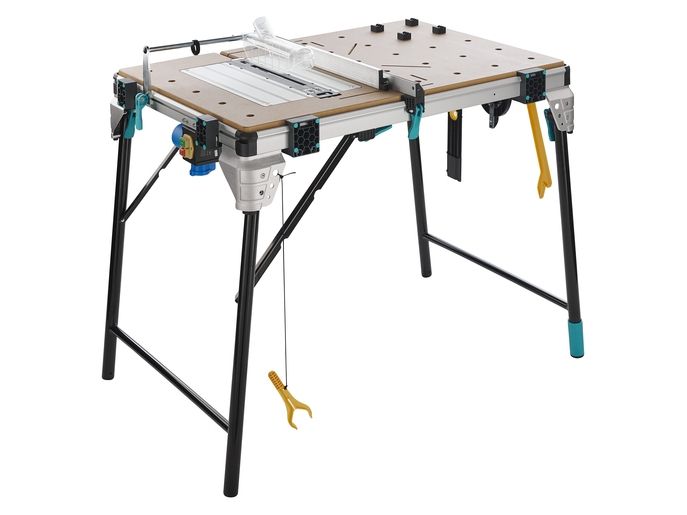

The multifunctional MASTER cut 2600 machine table combines six functions in one product. It can be used as a circular saw bench, jigsaw table, mitre saw table, work station, and – with the optional accessories – as a milling table and a station for guided circular saws. This makes the MASTER cut 2600 ideal for all trades involved in interior works. Thanks to the removable riving knife (available separately), it is one of the few machine tables that you can also use with handheld circular saws that do not have a riving knife. The machine plate is equipped with a safety lock that secures the plate and the tool reliably. It is also height-adjustable, offering you a flat transition to the worktop even with heavy equipment. The MASTER cut 2600 is compatible with many commercially available tools, regardless of the manufacturer. The safety switch is positioned on the side of the table so you can switch your tools on and off quickly and safely. When used as a circular saw bench, the parallel stop permits guided cuts up to a cutting width of 625 mm. The angle stop is equipped with spring-guided compensation and gliding elements. You can easily use it for angular cuts of up to +/- 60°, including a series of repeated cuts. It comes with four clamping blocks so you can firmly secure workpieces to the table profile with clamps. The accompanying Allen key can be used to move the clamping blocks to suit your workpiece. At the same time, the latter act as feet for the table when folded up, so it can be stored as a highly compact freestanding unit. The machine table can hold even solid wood boards with ease thanks to its load capacity of up to 120 kg. With just one product, you are reliably and effectively prepared for countless challenges around the home.

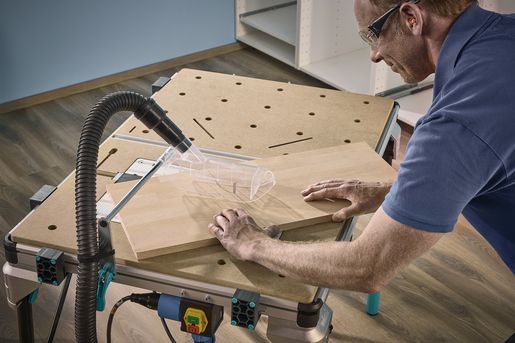

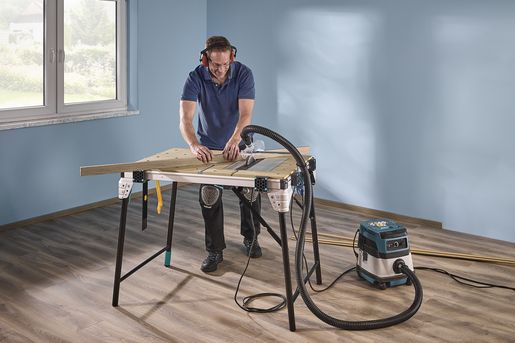

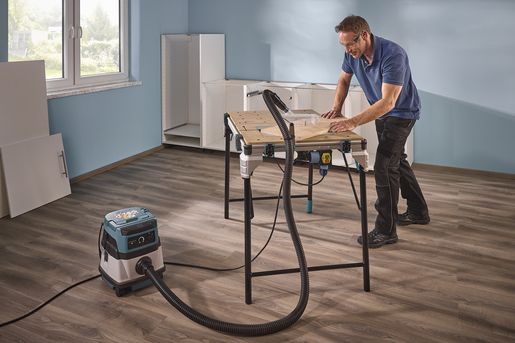

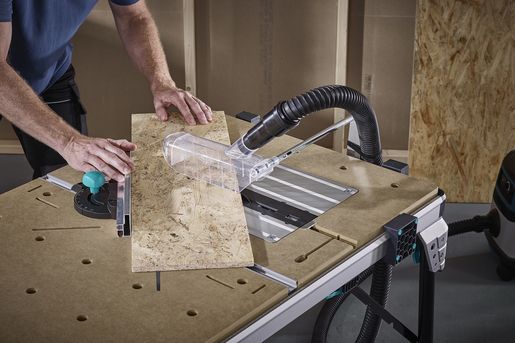

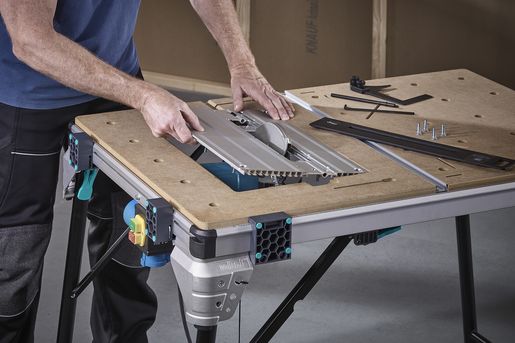

Circular saw bench function

- ideal for smaller workpieces that can be pushed across the table
- parallel cuts up to a cutting width of 625 mm
- mitre cuts from 0 to +/- 60° with the angle stop
- special stop guide with spring-guided compensation and gliding elements

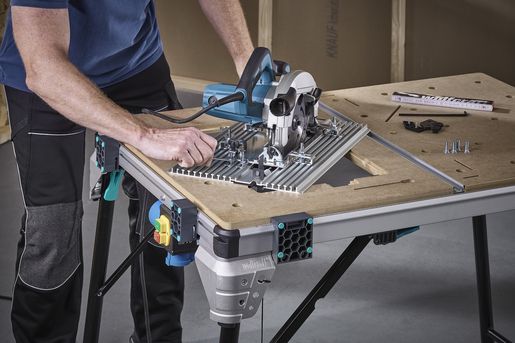

- compatible tool size: handheld circular saws with a cutting depth of max. 70 mm, a blade diameter of max. 200 mm, a base plate of max. 240 x 360 mm and a distance from the blade to the end of the motor housing of max. 225 mm
- with removable riving knife available separately, the table is also compatible with machines that do not have a riving knife

cordless tools and plunge-cut saws cannot be used

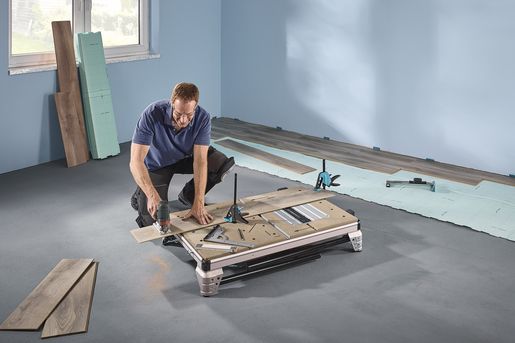

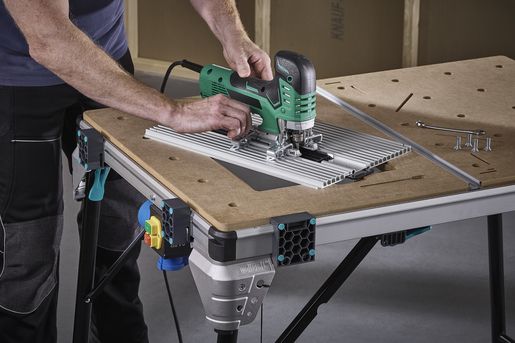

Jigsaw table function

- simple cut guidance by securing of the jigsaw in the table
- ideal for curved cuts on irregularly shaped workpieces
- unobstructed view of the marked line
- easy guidance of the workpiece by hand
- compatible tool size: jigsaws with a base plate of max. 90 x 200 mm
- includes mounting material for jigsaws

cordless tools cannot be used

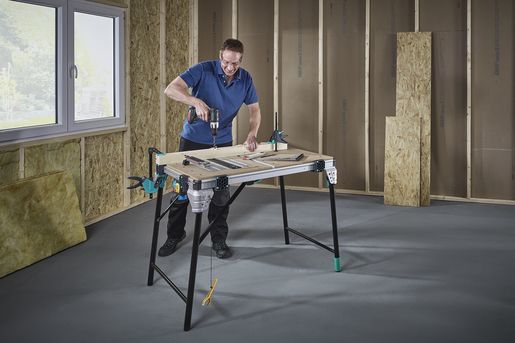

Work station function

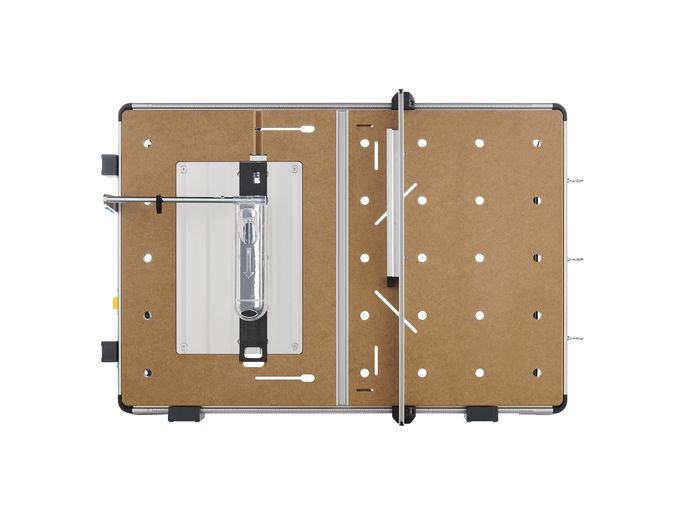

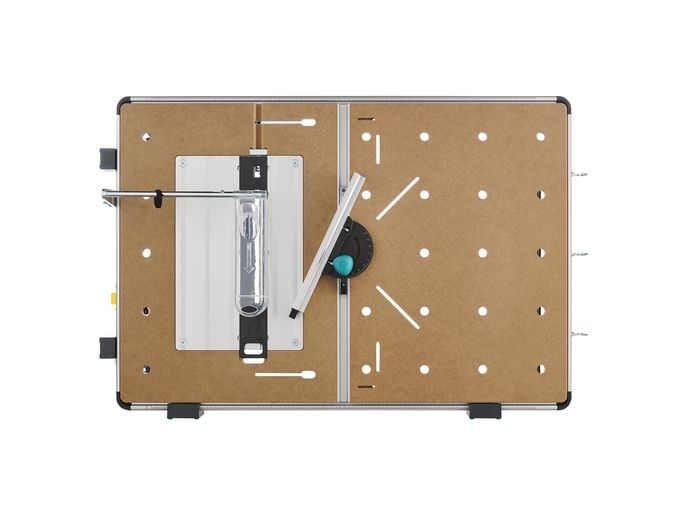

- large worktop (dimensions: 1,035 x 695 mm) made of 22 mm thick MDF offers many clamping possibilities

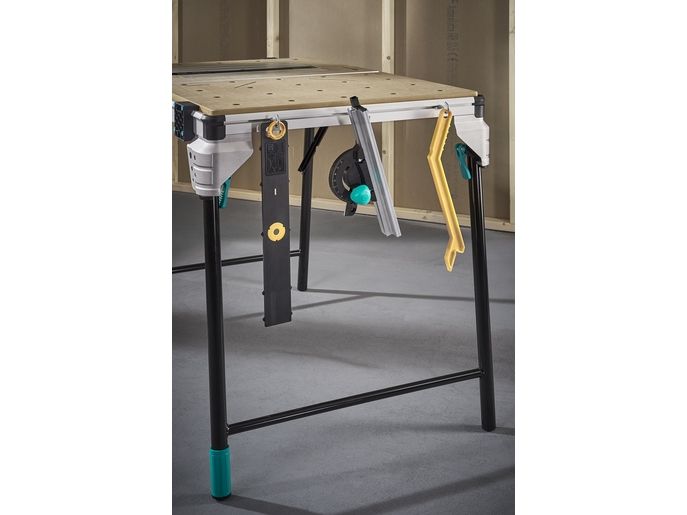

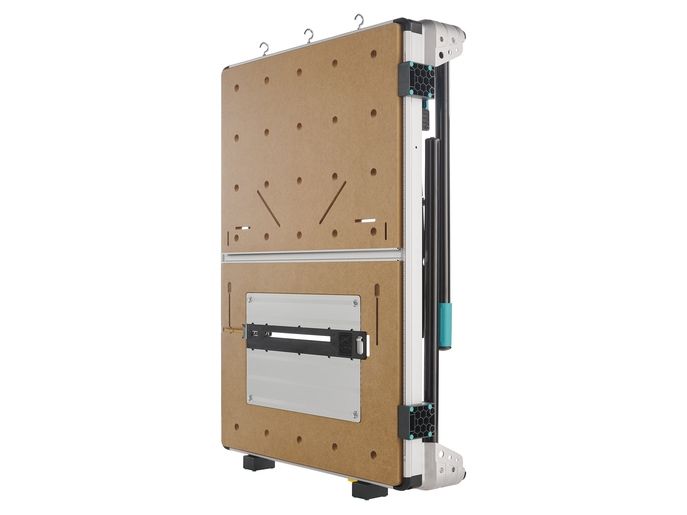

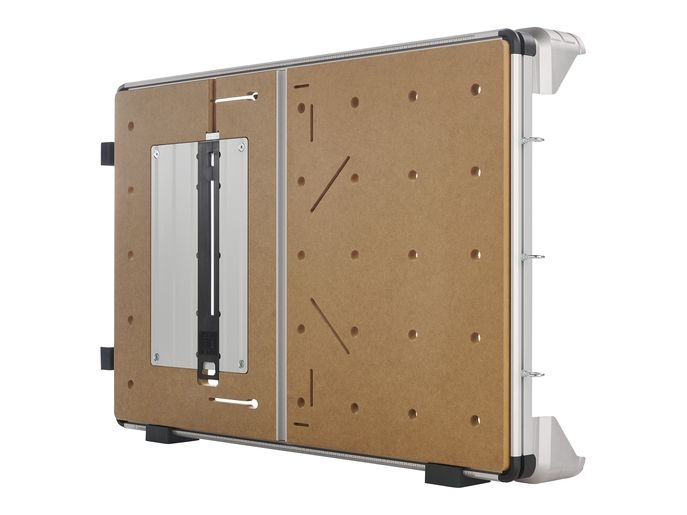

- 2 large and 2 small clamping blocks for securing workpieces firmly to the table profile with clamps; they also allow freestanding storage of the folded table
- comfortable working height of 863 mm
- foldable legs for work on the ground

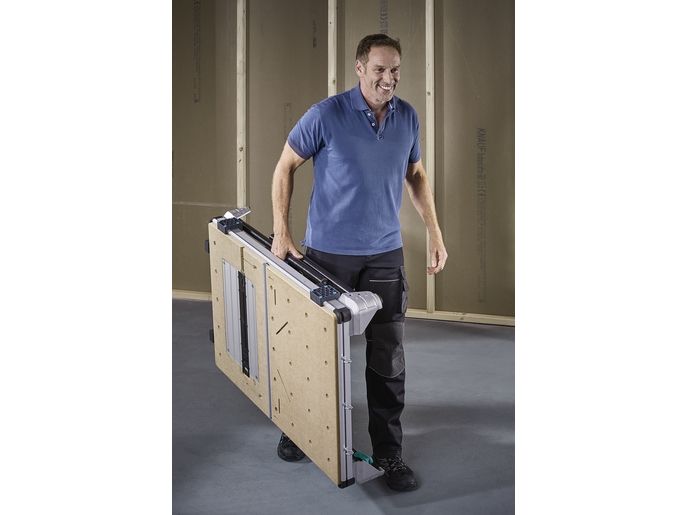

- mobile: versatile use and space-saving storage

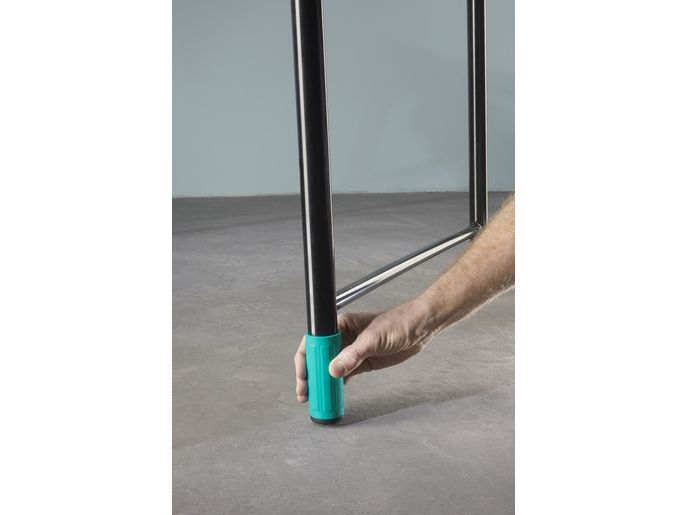

- robust and stable: stable base frame made of steel and aluminium, with a load-bearing capacity of up to 120 kg, height-adjustable foot

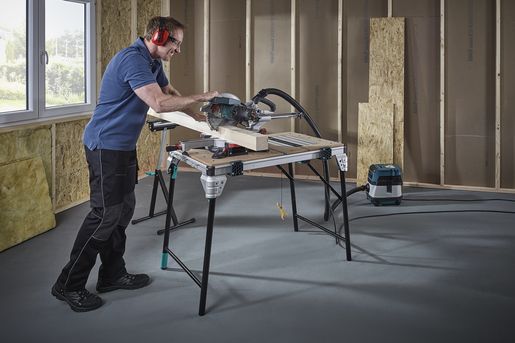

Mitre saw table function

- compatible with most commercially available mitre saws thanks to the multifunctional hole pattern in the table plate
- includes fastening material for mitre saws

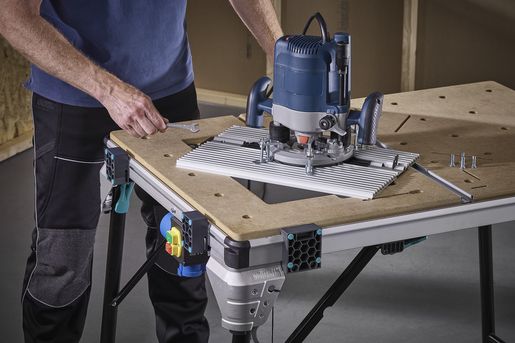

Milling table function

- optional accessory: parallel milling guide (art. no. 6901000) turns the MASTER cut 2600 into a real router table
- height-adjustable machine plate for smooth transitions
- compatible tool size: routers with max. 230 V / max. 1,800 W, a base plate with diameter of max. 180 mm, a base plate height of max. 40 mm and router bit diameter of max. 27 mm
- warning: use of the router table is only allowed in combination with the parallel milling guide (art. no. 6901000).

cordless tools cannot be used

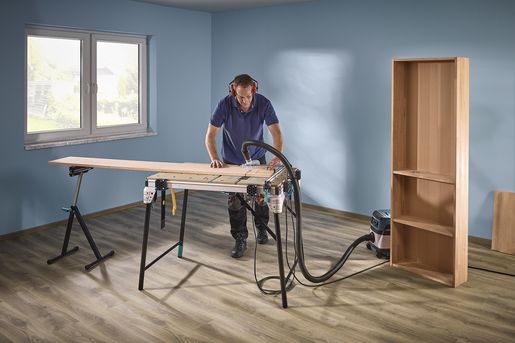

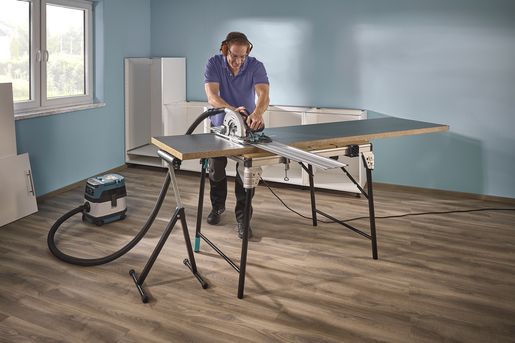

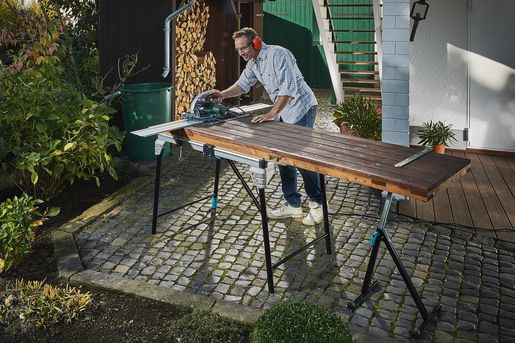

Function as station for guided circular saws

optional accessory: with the guide rail FKS 145 (art. no. 6913000) you can cut large workpieces on the table
to fasten the guide rail FKS 145 to the MASTER cut 2600, we recommend using the screw clamp set (art. no. 6897000)

Scope of delivery

1 Machine Table MASTER cut 2600
1 switch clamp
1 push stick
1 safety shield

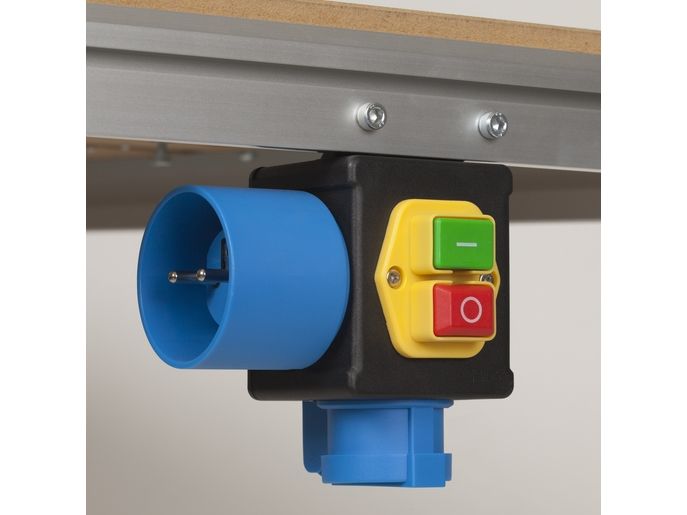

1 EU safety switch
4 clamping blocks
4 clamping jaws

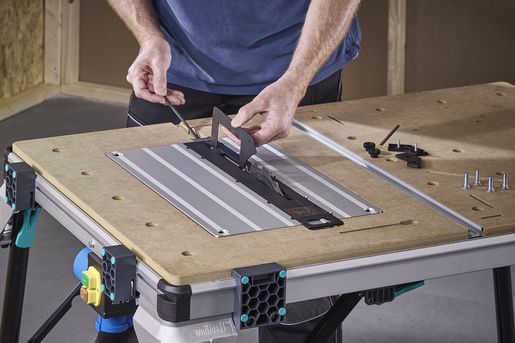

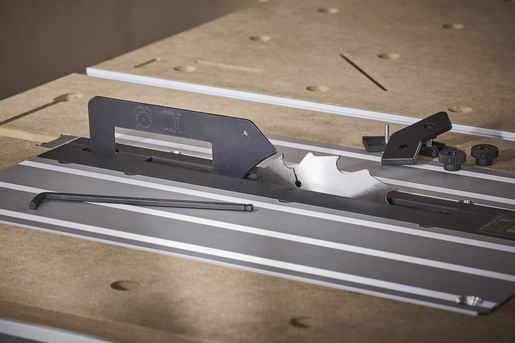

1 machine plate with safety lock
2 knife inserts for handheld circular saws, jigsaws and routers
1 15 mm insert ring for router
1 25 mm insert ring for router
1 angle stop
1 parallel stop
Mounting material for tools
