Allied Telesis AT-SPFXBD-LC-15, Faseroptik, 100 Mbit/s, SFP, LC, 15000 m, Silber

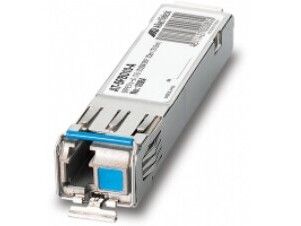

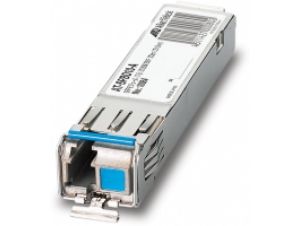

The AT-SPFXBD-xx is a 3.3V SFP BiDi
transceiver module designed for high-speed
applications which require up to 155Mbit/sec
transmission rates. It is compliant with Fast
Ethernet (100mbps),ATM, SONET, OC-3/SDH,
and STM-1 standards, as well as the SFP
Multisource Agreement (MSA).
The SFP uses the industry standard SC
connector type.The transceiver includes a LOS
(Loss Of Signal) circuit that provides a TTL
logic-high output when an unusable optical
signal level is detected.The module includes
1310nm un-cool FP laser, InGaAs PIN, Preamplifer
and WDM filter in a high-integrated
optical assembly for high density system
application.
Using an SFP Bi-Directional transceiver can
upgrade transmission capacity on a typical
network without installing new fibers by utilizing
a single fiber for both the send/receive signals.
